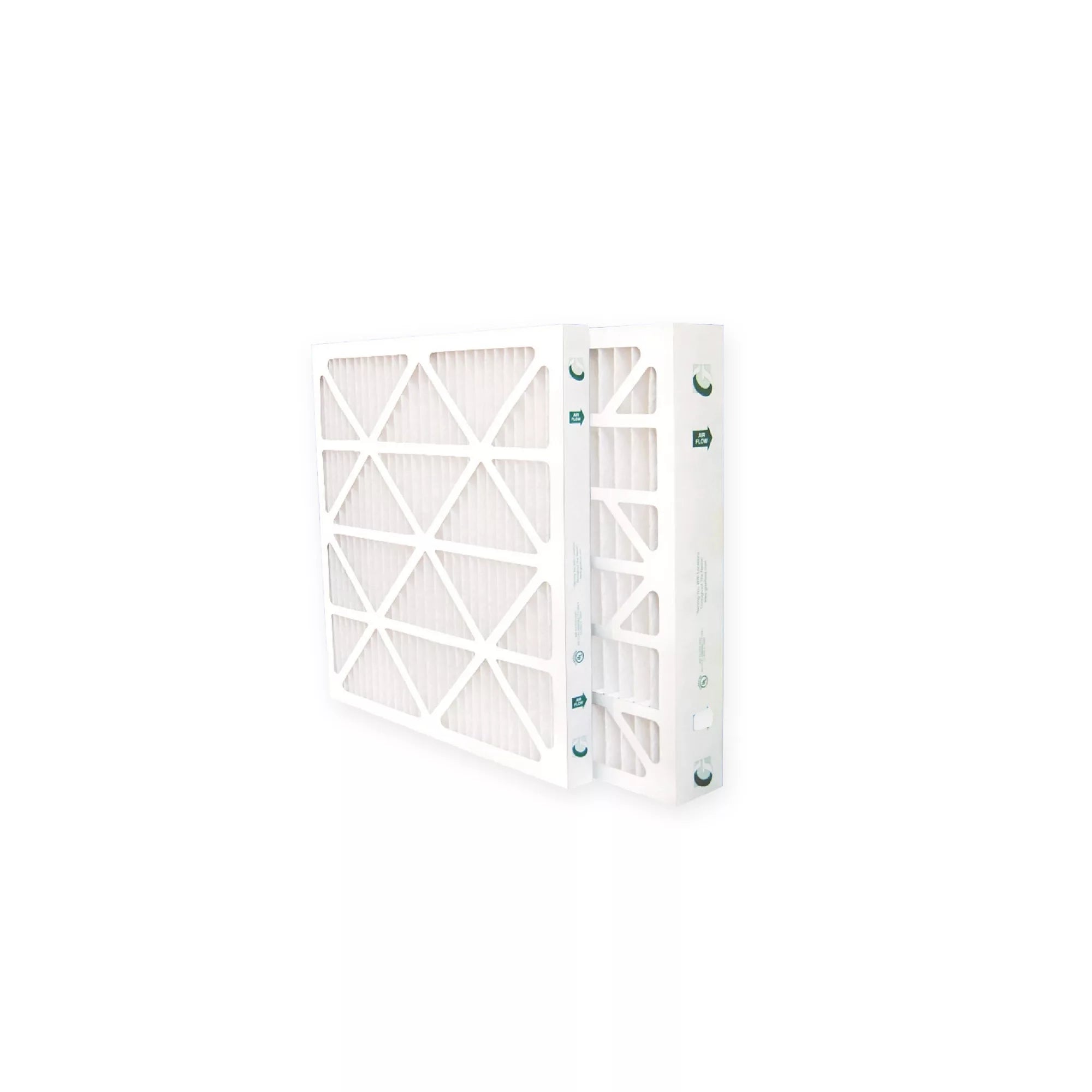

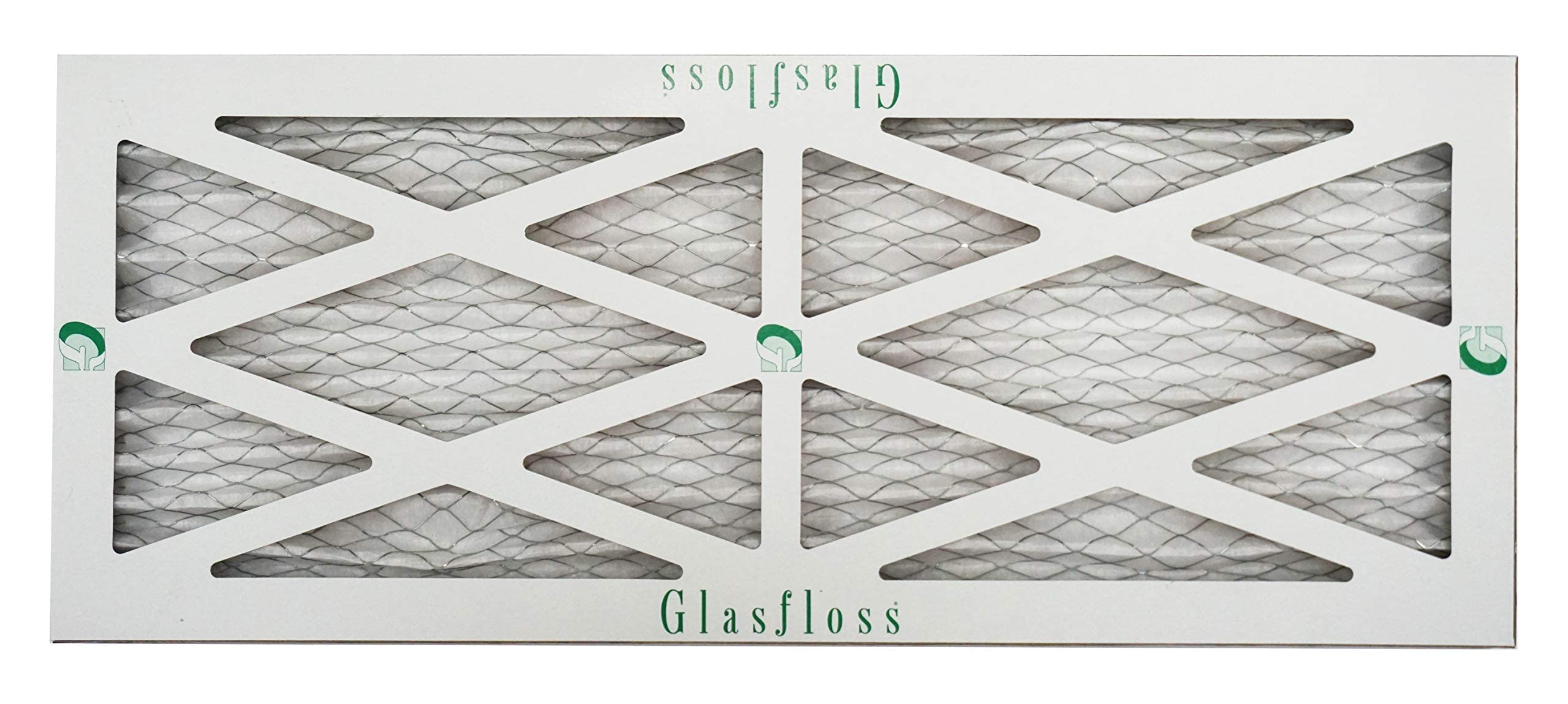

Glasfloss ZLP12251 12 inches x 25 inches x 1 inches MERV 10 Z-Line Standard Capacity Pleated Filter

Product Description

The Glasfloss ZLP12251 is a 12" x 25" x 1" MERV 10 Z-Line standard capacity pleated filter. This filter offers improved performance for virtually every application. It features fibers which do not absorb moisture and will not support microbial growth. The filter is classified under U.L. std. 900 and is rated to withstand temperatures up to 180 degrees Fahrenheit.

• Heavy-Duty Moisture Resistant Construction
• Galvanized Expanded Metal Backing
• Fibers do not absorb moisture

Product Highlights

This pleated filter offers excellent performance and value for a wide range of applications, with a heavy-duty, moisture-resistant construction.

Product Information

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: ZLP12251
• Country of Origin: US

Technical Specifications

• Brand: Glasfloss
• Width: 12 in
• Height: 25 in
• Length: 1 in
• Frame Type: Die-Cut Beverage Board
• Filter Type: Pleated
• MERV Rating: 10
• Removes Smoke: No
• Country of Origin: USA
• Filter Efficiency: 40% to 85%
• Removes Fine Dust: Yes
• Pleats per Linear Feet: 14
• Filter Rating (Microns): 1.0 to 10.0
• Nominal Filter Width in Inches: 12
• Nominal Filter Height in Inches: 25
• Nominal Filter Thickness in Inches: 1
• Nominal Filter Size in Inches (W x H x D): 12 x 25 x 1
• Initial Resistance: 0.18 in wg
• Temperature Rating: 180 deg F
• Depth: 1 in
• Domestic/Import: Domestic
• Final Resistance: 1 in WG
• Flow Rate: 300 fpm
• Media Material: Synthetic Fiber
• Mfg Standards/Approvals: ANSI/ASHRAE 52.2, Energy Star Qualified, LEED Certified, UL 900
• Nominal Pleat: 14 Plates/Linear-Ft
• Series: Z-Line ZL
• Actual Size: 24-1/2 in H x 11-1/2 in W x 7/8 in D
• Frame Material: Beverage Board
• Media Area: 1.73 sq-ft
• Rated Velocity: 300 fpm
