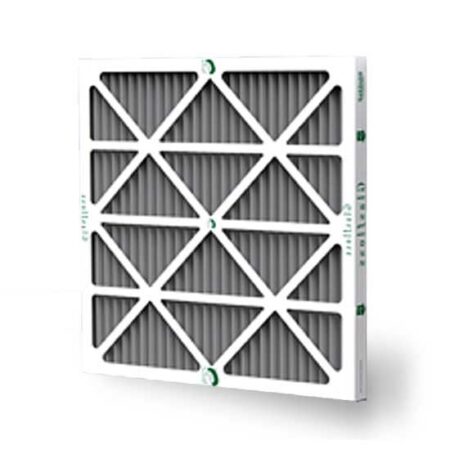

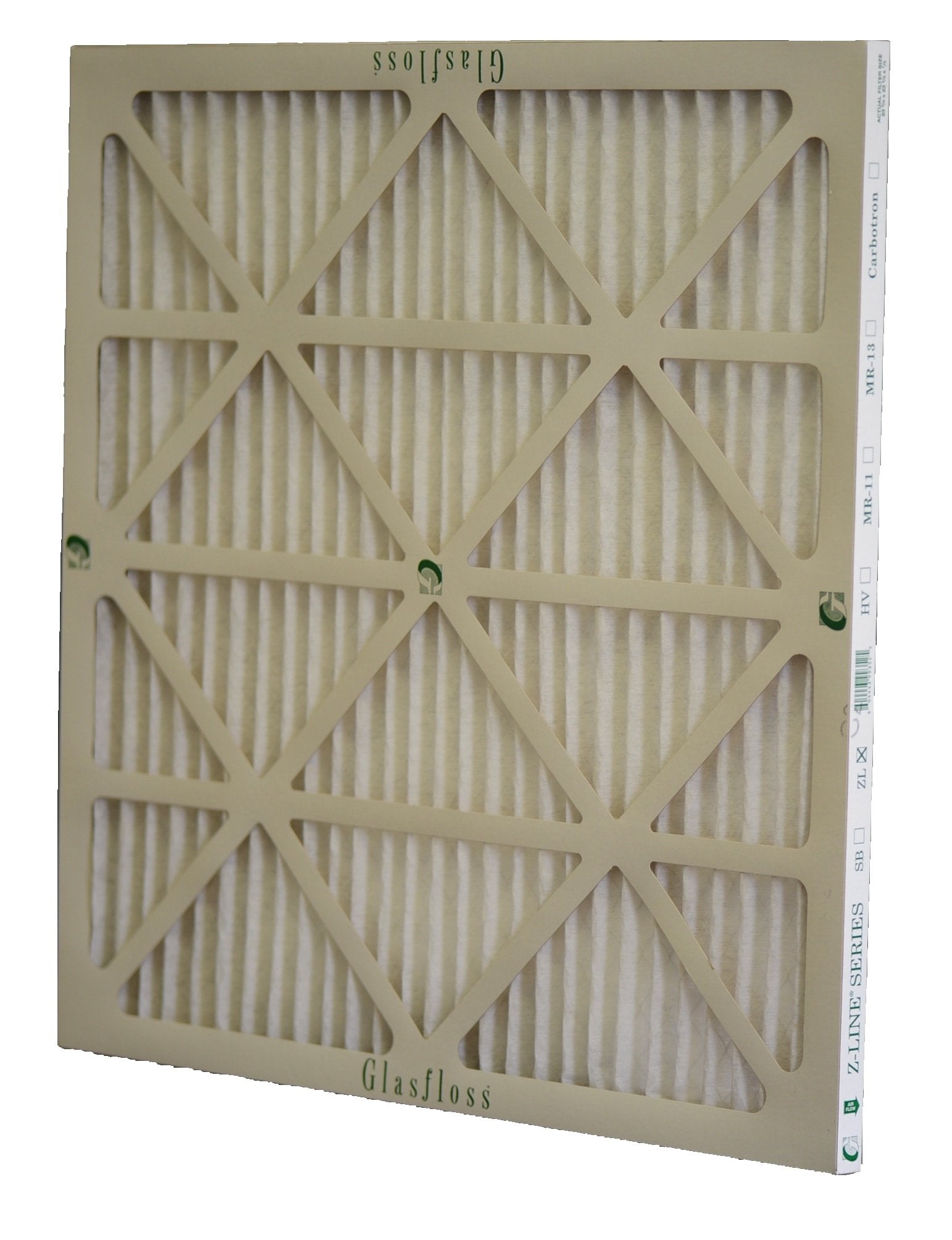

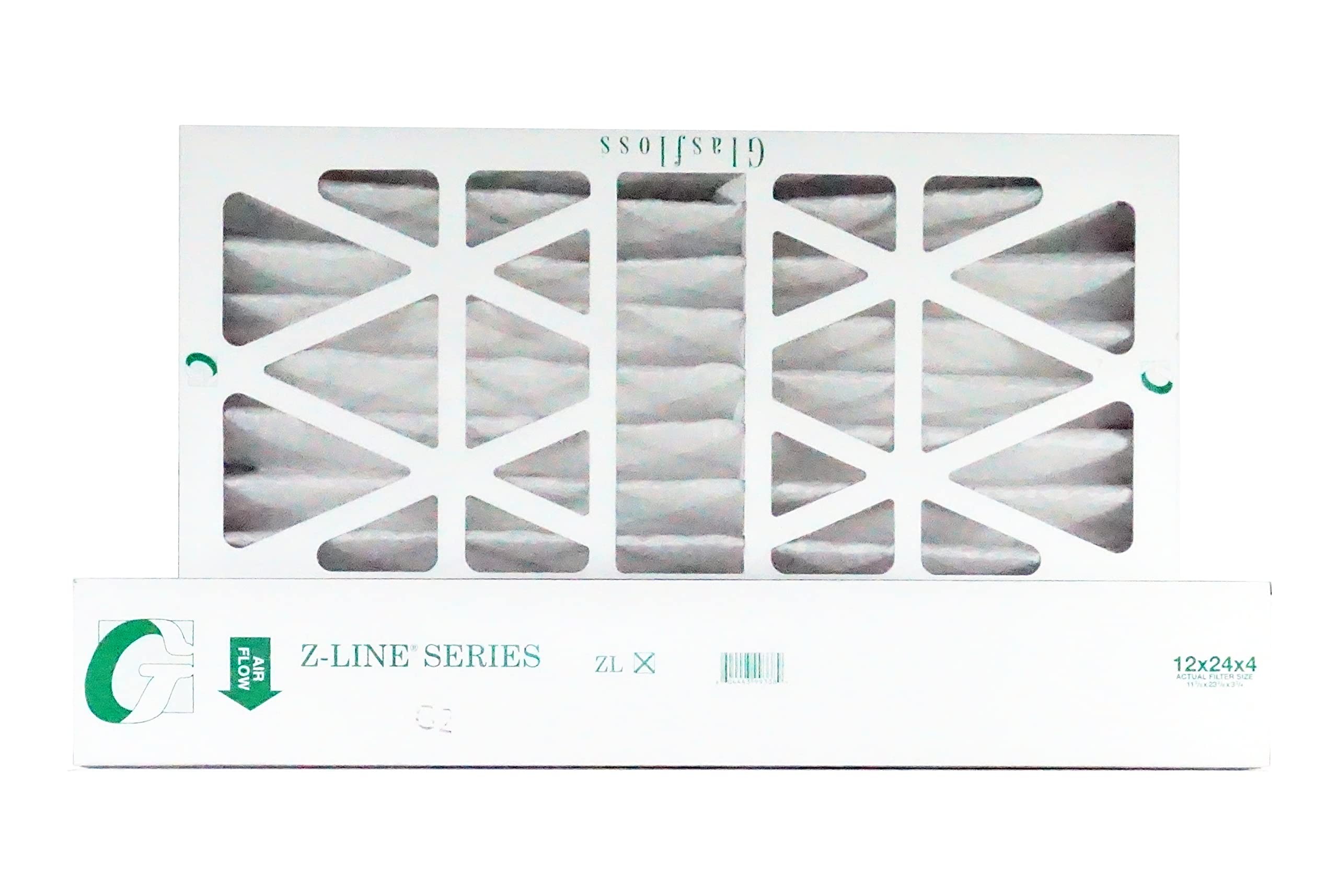

Glasfloss ZLP12244 12 inches x 24 inches x 4 inches MERV 10 Z-Line Standard Capacity Pleated Filter

Product Description

The Glasfloss ZLP12244 Z-Line Series pleated filter offers improved performance for many applications. This filter features synthetic fibers that resist moisture and microbial growth. The SB, ZL, and HV filters achieve a MERV 10 rating per the ANSI/ASHRAE 52.2 Test Standard. It features heavy-duty moisture resistant construction and galvanized expanded metal backing.

• Heavy-Duty Moisture Resistant Construction
• Galvanized Expanded Metal Backing
• Standard Size 4” and 6” Thick ZL, HV & MR-11 Incorporate Media Separators
• Geothermal Unit Replacement Filters

Product Highlights

The Glasfloss ZLP12244 filter provides excellent performance and value for a wide range of applications. Its synthetic fibers and heavy-duty construction ensure durability and efficiency.

Product Information

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: ZLP12244
• Country of Origin: USA

Technical Specifications

• Brand: Glasfloss
• Filter Efficiency: 40% to 85%
• Filter Rating (Microns): 1.0 to 10.0
• Filter Type: Pleated
• Frame Type: Die-Cut Beverage Board
• Height: 24 in
• Length: 4 in
• MERV Rating: 10
• Nominal Filter Height in Inches: 24
• Nominal Filter Size in Inches (W x H x D): 12 x 24 x 4
• Nominal Filter Thickness in Inches: 4
• Nominal Filter Width in Inches: 12
• Pleats per Linear Feet: 9
• Removes Fine Dust: Yes
• Removes Smoke: No
• Width: 12 in
• Country of Origin: USA
• Product Type: HVAC_AIR_FILTER
• Manufacturer: Glasfloss
• Construction: Heavy-Duty Moisture Resistant
• Metal Backing: Galvanized Expanded Metal
• Application: Replacement
• Series-Brand: Z-Line
• FPM: 500
• Material: Synthetic Fiber
• Temperature Rating: 180 deg F
• Flow Rate: 500 FPM
• Resistance: 0.25 Inch WG
• Actual Size: 11-3/8 in W x 23-3/8 in H x 3-3/4 in D
• Media Material: Synthetic Fiber
• Frame Material: Beverage Board
• Rated Velocity: 500 fpm
• Initial Resistance: 0.18 in wg
• Final Resistance: 1 in WG
• Green Type: EnergyStar
• Configuration: Pleated
• Depth: 4 in
• Air Flow: 500 fpm
• Maximum Temperature: 180 deg F
• Pleats: 9 Plates/Linear-Ft Nominal Pleat
• Applicable Standard: ANSI/ASHRAE 52.2, NAFA, HardI, USGBC, UL
• Nominal Width: 12 Inch
• Nominal Height: 24 Inch
• Nominal Depth: 4 Inch
• Media Area: 11.13 Square Foot
• Number of Pleats: 9 per Foot
• Mfg Standards/Approvals: ANSI/ASHRAE 52.2, Energy Star Qualified, LEED Certified, UL 900
• Nominal Pleat: 14 Plates/Linear-Ft
• Series: Z-Line ZL
• Collection: Z-LineSeries
• Item Type: Z-Line ZL (high-performance)
• Rating: MERV 10
