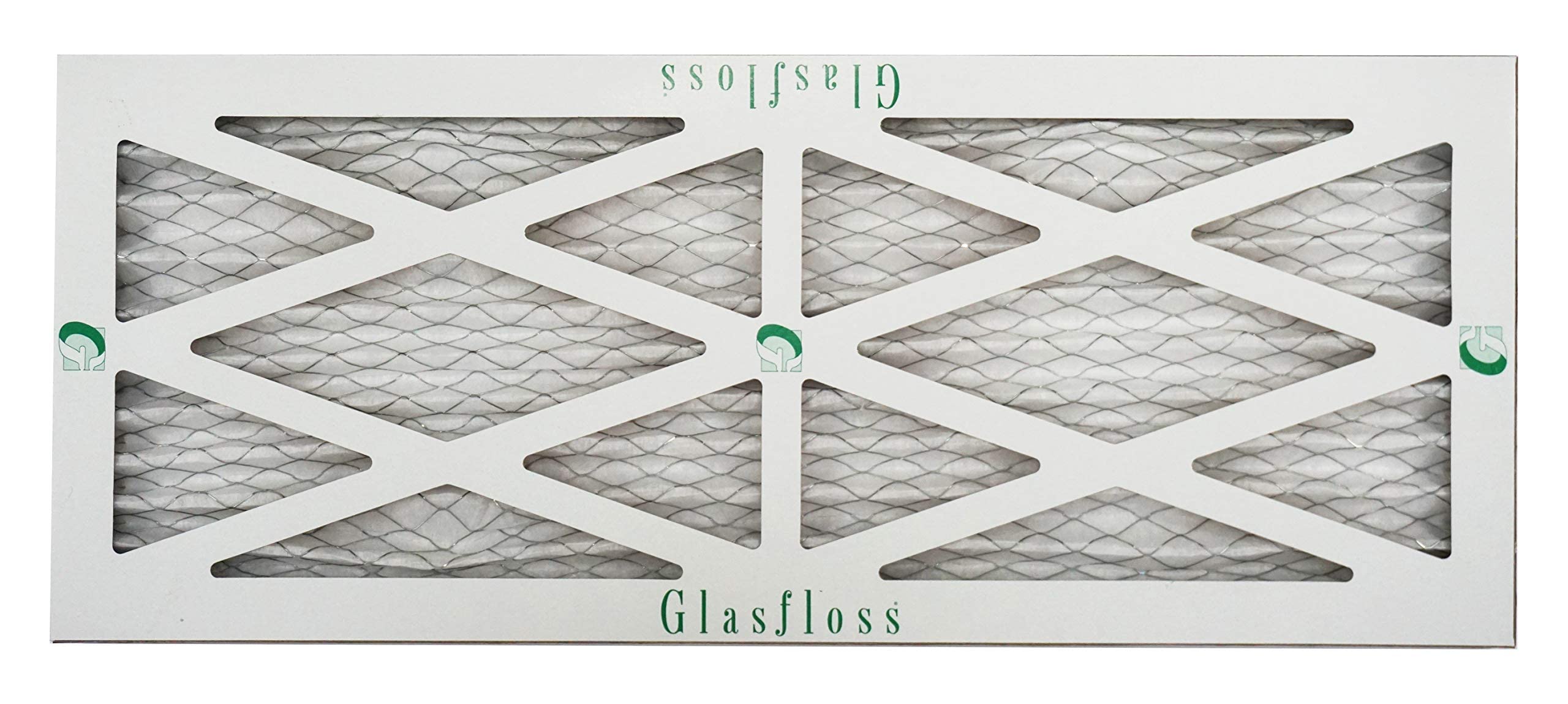

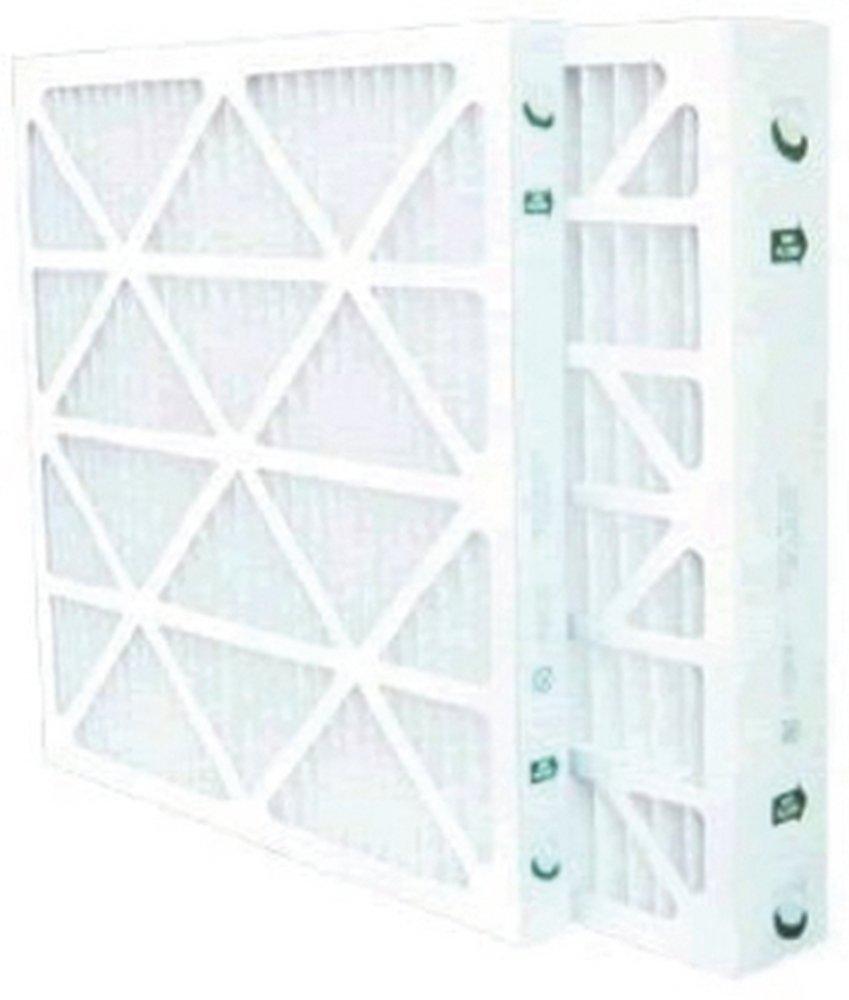

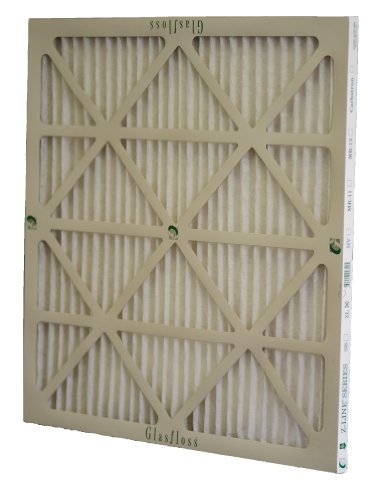

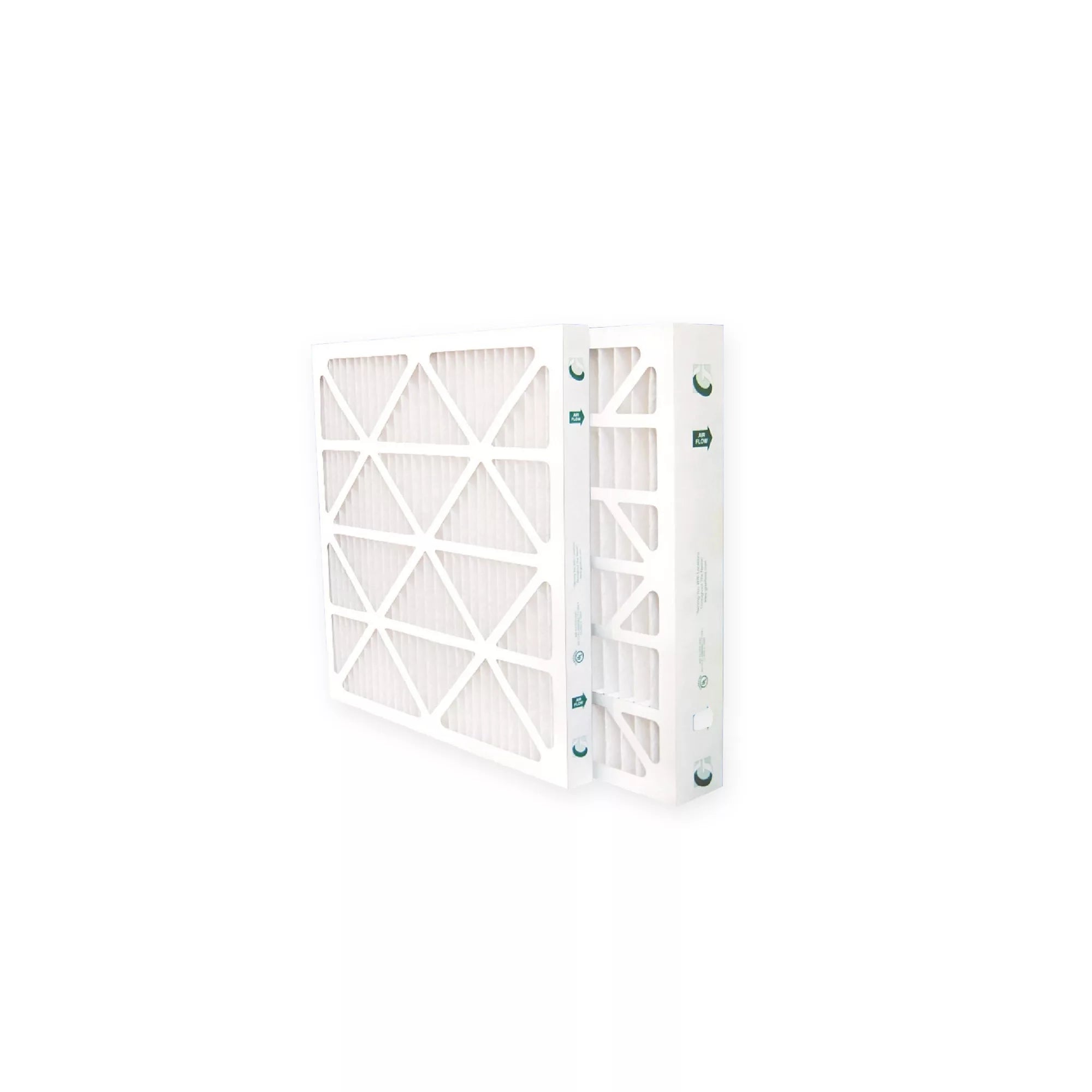

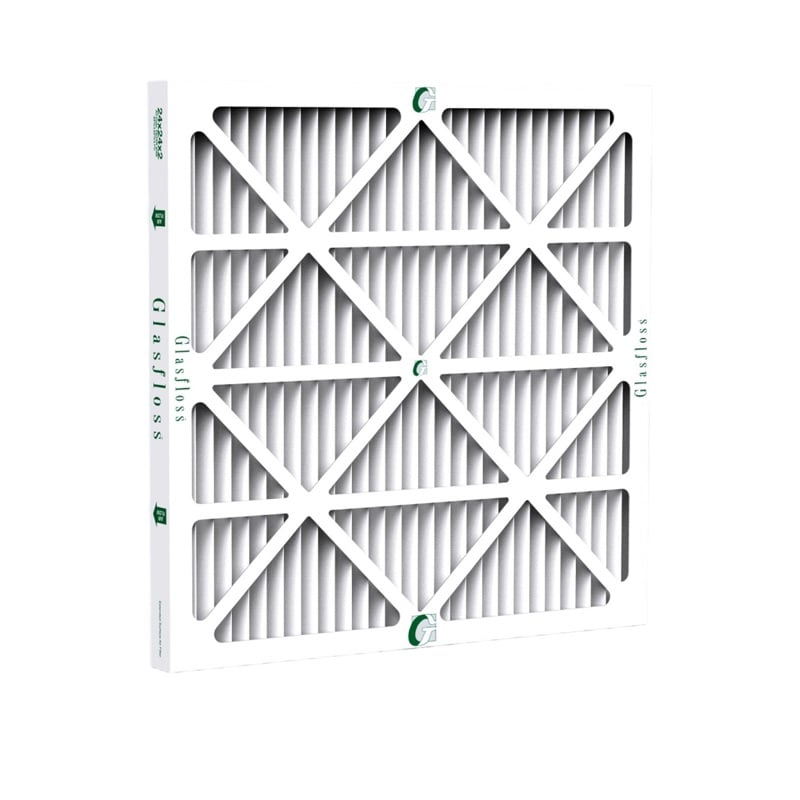

Glasfloss ZLP12241 Z-Line Standard Capacity Pleated Filter 12 x 24 x 1 inch

Product Description

The Glasfloss ZLP12241 Z-Line Series pleated filters offer improved performance for many applications. These filters feature fibers that do not absorb moisture and resist microbial growth. They achieve a MERV 10 rating per the ANSI/ASHRAE 52.2 Test Standard and are classified under U.L. std. 900, with a temperature rating up to 180 degrees Fahrenheit.

• Heavy-Duty Moisture Resistant Construction
• Galvanized Expanded Metal Backing
• Fibers do not absorb moisture and will not support microbial growth

Product Highlights

The Glasfloss ZLP12241 filter provides excellent performance and value for a wide range of applications.

Product Information

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: ZLP12241
• Country of Origin: USA

Technical Specifications

• Brand: Glasfloss
• MPN: ZLP12241
• Width: 12 in
• Height: 24 in
• Length: 1 in
• Frame Type: Die-Cut Beverage Board
• Filter Type: Pleated
• MERV Rating: 10
• Removes Smoke: No
• Country of Origin: USA
• Filter Efficiency: 40% to 85%
• Removes Fine Dust: Yes
• Pleats per Linear Feet: 14
• Filter Rating (Microns): 1.0 to 10.0
• Nominal Filter Width in Inches: 12
• Nominal Filter Height in Inches: 24
• Nominal Filter Thickness in Inches: 1
• Nominal Filter Size in Inches (W x H x D): 12 x 24 x 1
• Air Flow: 300 fpm
• Maximum Temperature: 180 deg F
• Initial Resistance: 0.18 in wg
• Final Resistance: 1 in WG
• Media: Synthetic Fiber
• Series: Z-Line ZL
• Media Material: Synthetic Fiber
• Rated Velocity: 300 fpm
• Actual Size: 11-3/8 x 23-3/8 x 7/8 in
• Temperature Rating: 180 deg F
• Material: Synthetic
• Collection: Z-Line® Series
