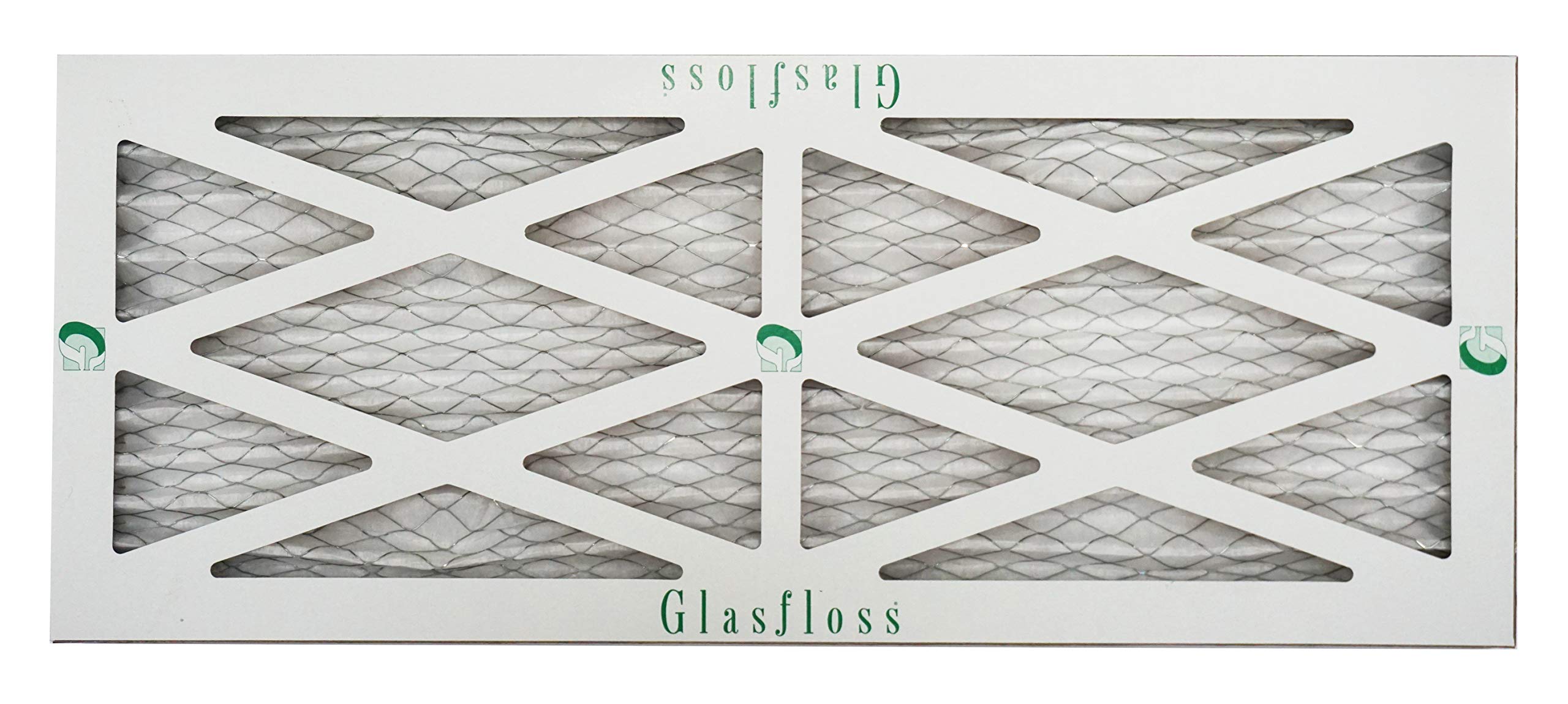

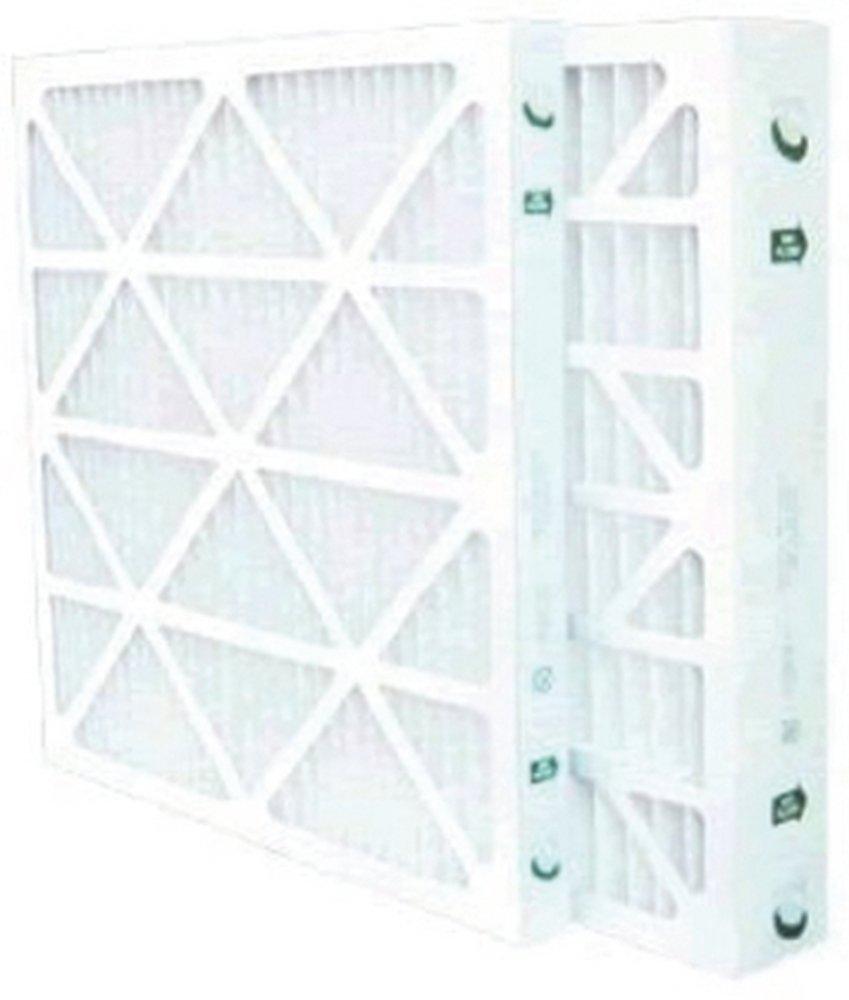

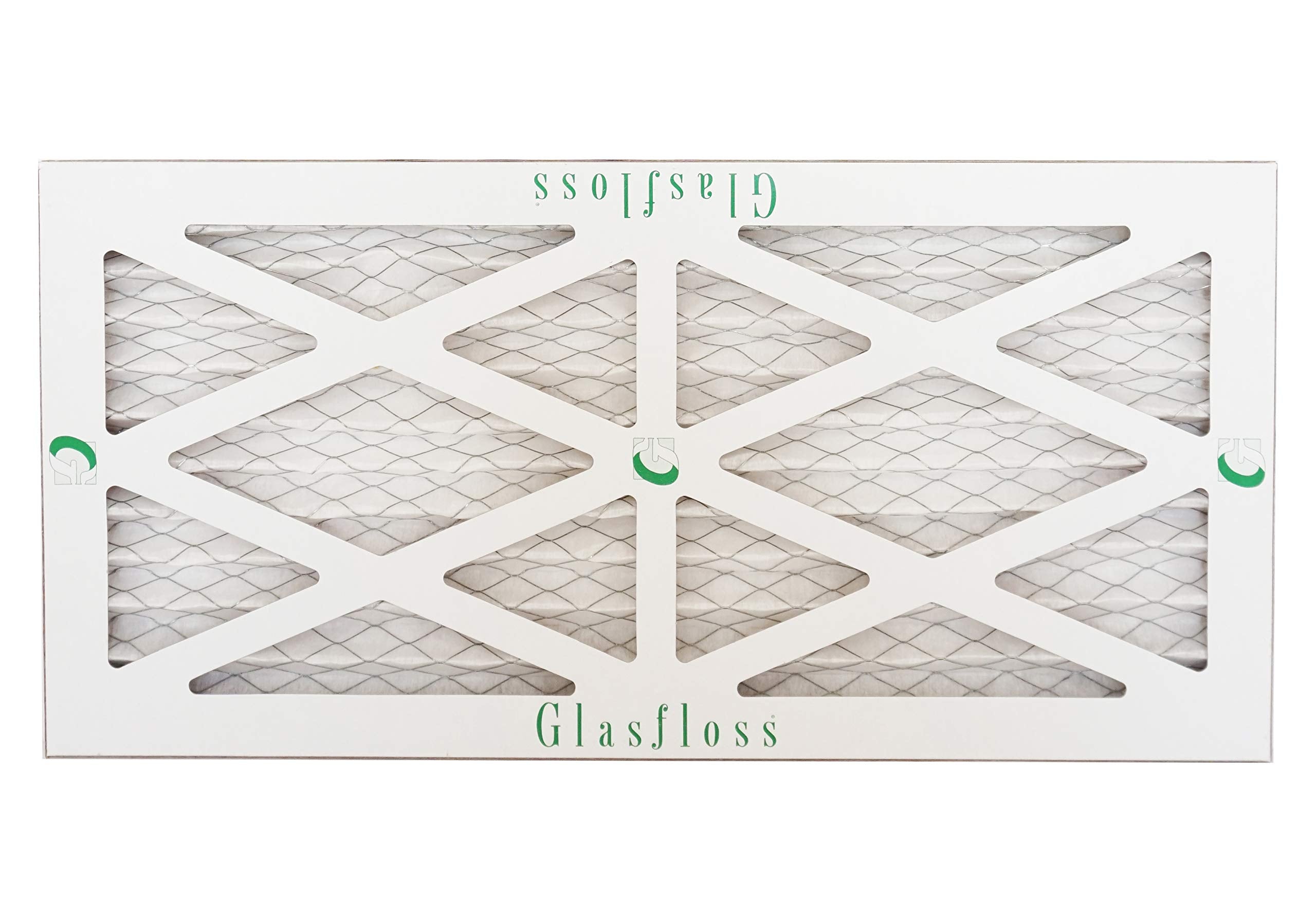

Glasfloss ZLP12201 Z-Line ZL Pleated Air Filter 12 inches x 20 inches x 1 inches

Product Description

The Glasfloss ZLP12201 Z-Line series pleated filter offers improved performance for many applications. These filters feature fibers that do not absorb moisture and will not support microbial growth. The media is made of 100% synthetic fibers pleated in a tapered radial configuration. This filter is classified under U.L. std. 900 and can withstand temperatures up to 180 degrees Fahrenheit.

• Heavy-Duty Moisture Resistant Construction
• Galvanized Expanded Metal Backing
• Fibers do not absorb moisture and will not support microbial growth

Product Highlights

The Glasfloss ZLP12201 pleated air filter provides excellent filtration for residential, commercial, and industrial HVAC applications.

Product Information

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: ZLP12201
• Country of Origin: USA

Technical Specifications

• Brand: Glasfloss
• MPN: ZLP12201
• Width: 12 in
• Height: 20 in
• Length: 1 in
• Frame Type: Die-Cut Beverage Board
• Filter Type: Pleated
• MERV Rating: 10
• Removes Smoke: No
• Country of Origin: USA
• Filter Efficiency: 40% to 85%
• Removes Fine Dust: Yes
• Pleats per Linear Feet: 14
• Filter Rating (Microns): 1.0 to 10.0
• Nominal Filter Width in Inches: 12
• Nominal Filter Height in Inches: 20
• Nominal Filter Thickness in Inches: 1
• Nominal Filter Size in Inches (W x H x D): 12 x 20 x 1
• UOM: EA
• UPC: 604443986428
• EAN: 0604443986428
• Temperature Rating: 180 deg F
• Depth: 1 in
• Series: Z-Line ZL
• Final Resistance: 1 in WG
• Flow Rate: 500 fpm
• Initial Resistance: 0.27 in wg
• Media Material: Synthetic Fiber
• Mfg Standards/Approvals: ANSI/ASHRAE 52.2, Energy Star Qualified, LEED Certified, UL 900
• Nominal Pleat: 10 Plates/Linear-Ft
• Rated Velocity: 300 fpm
• Media Area: 2.88 sq-ft
• Actual Size: 11-1/2 x 19-1/2 x 7/8 in
• Material: Metal
