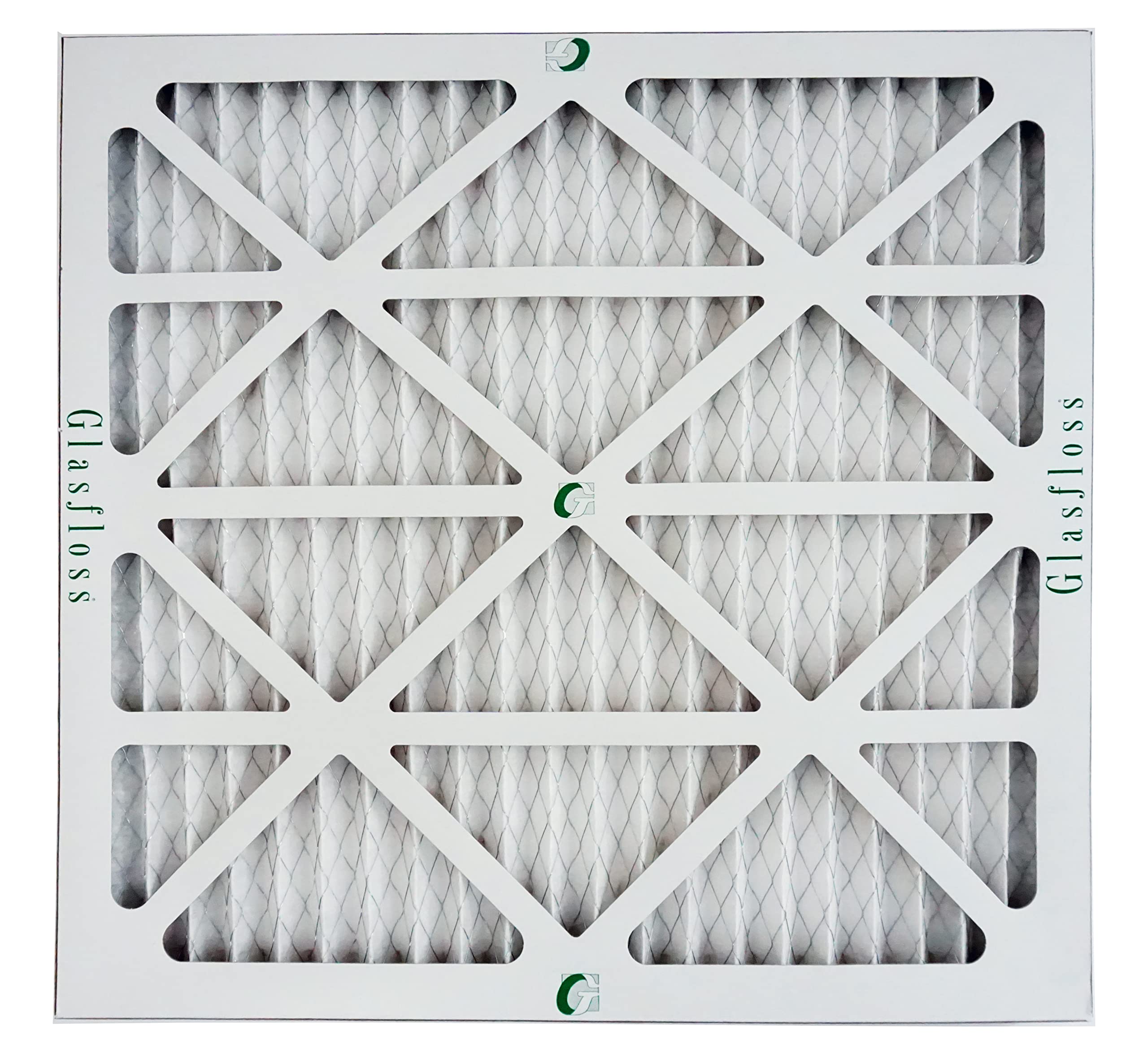

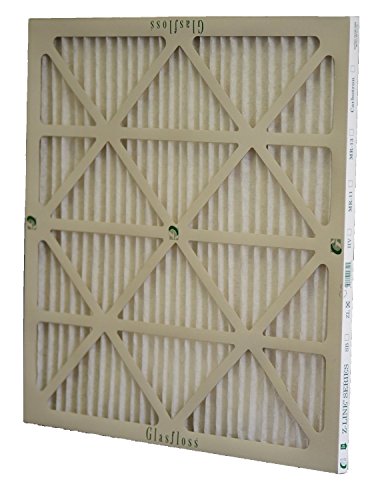

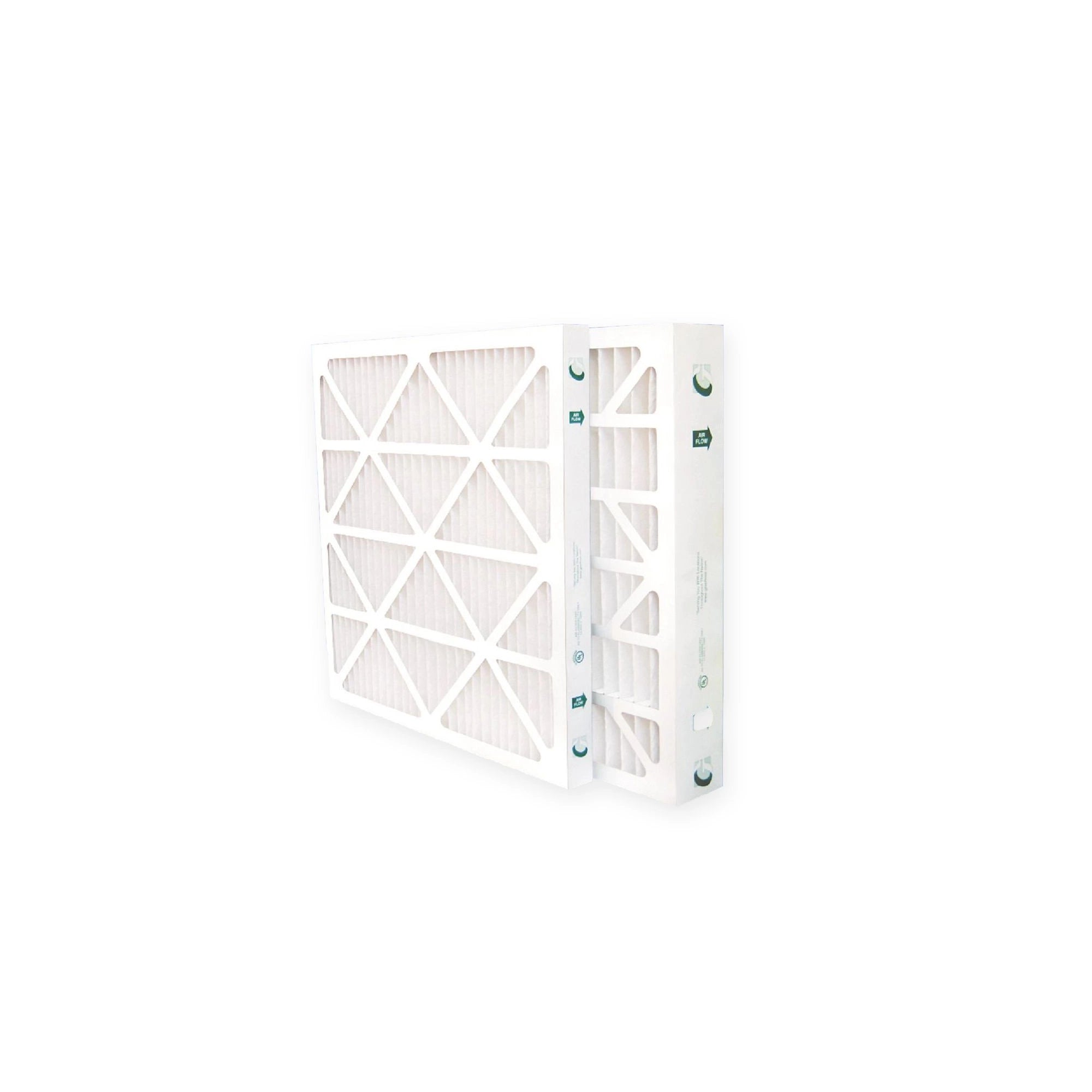

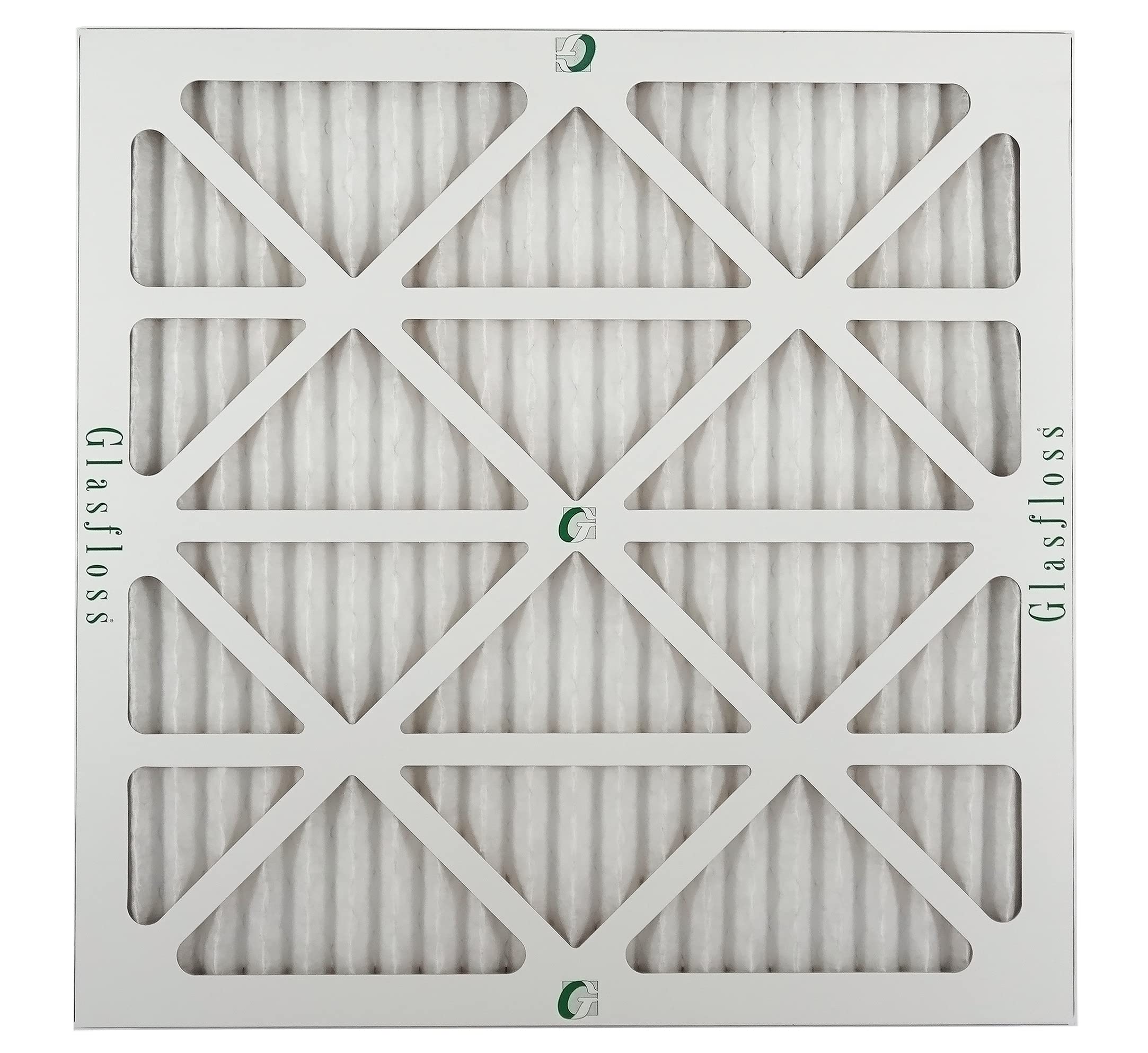

Glasfloss ZLP12121 Z-Line Standard Capacity Pleated Filter 12 inches x 12 inches x 1 inches

Product Description

The Glasfloss ZLP12121 Z-Line Series pleated filters offer improved performance for virtually every application. These filters feature fibers that do not absorb moisture and will not support microbial growth. They achieve a MERV 10 rating per the ANSI/ASHRAE 52.2 Test Standard and are classified under U.L. std. 900.

• Features heavy-duty moisture-resistant construction.
• Has a galvanized expanded metal backing.
• Made with 100% synthetic fibers and pleated in a tapered radial configuration.

Product Highlights

Glasfloss ZLP12121 filters provide excellent performance and value for a wide range of applications, including residential, commercial buildings, hospitals, and industrial settings.

Product Information

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: ZLP12121
• Country of Origin: USA

Technical Specifications

• Brand: Glasfloss
• MPN: ZLP12121
• Width: 12 in
• Height: 12 in
• Length: 1 in
• Frame Type: Die-Cut Beverage Board
• Filter Type: Pleated
• MERV Rating: 10
• Removes Smoke: No
• Country of Origin: USA
• Filter Efficiency: 40% to 85%
• Removes Fine Dust: Yes
• Pleats per Linear Feet: 14
• Filter Rating (Microns): 1.0 to 10.0
• Nominal Filter Width in Inches: 12
• Nominal Filter Height in Inches: 12
• Nominal Filter Thickness in Inches: 1
• Nominal Filter Size in Inches (W x H x D): 12 x 12 x 1
• Temperature Rating: 180 deg F
• Flow Rate: 300 fpm
• Media Material: Synthetic Fiber
• Domestic/Import: Domestic
• Final Resistance: 1 in WG
• Initial Resistance: 0.18 in wg
• Overall Dimensions: 11-1/2 in W x 7/8 in D x 11-1/2 in H
• Series: Z-Line ZL
• Material: Synthetic
• Rated Velocity: 300 fpm
• Actual Size: 11-1/2 x 11-1/2 x 7/8 in
