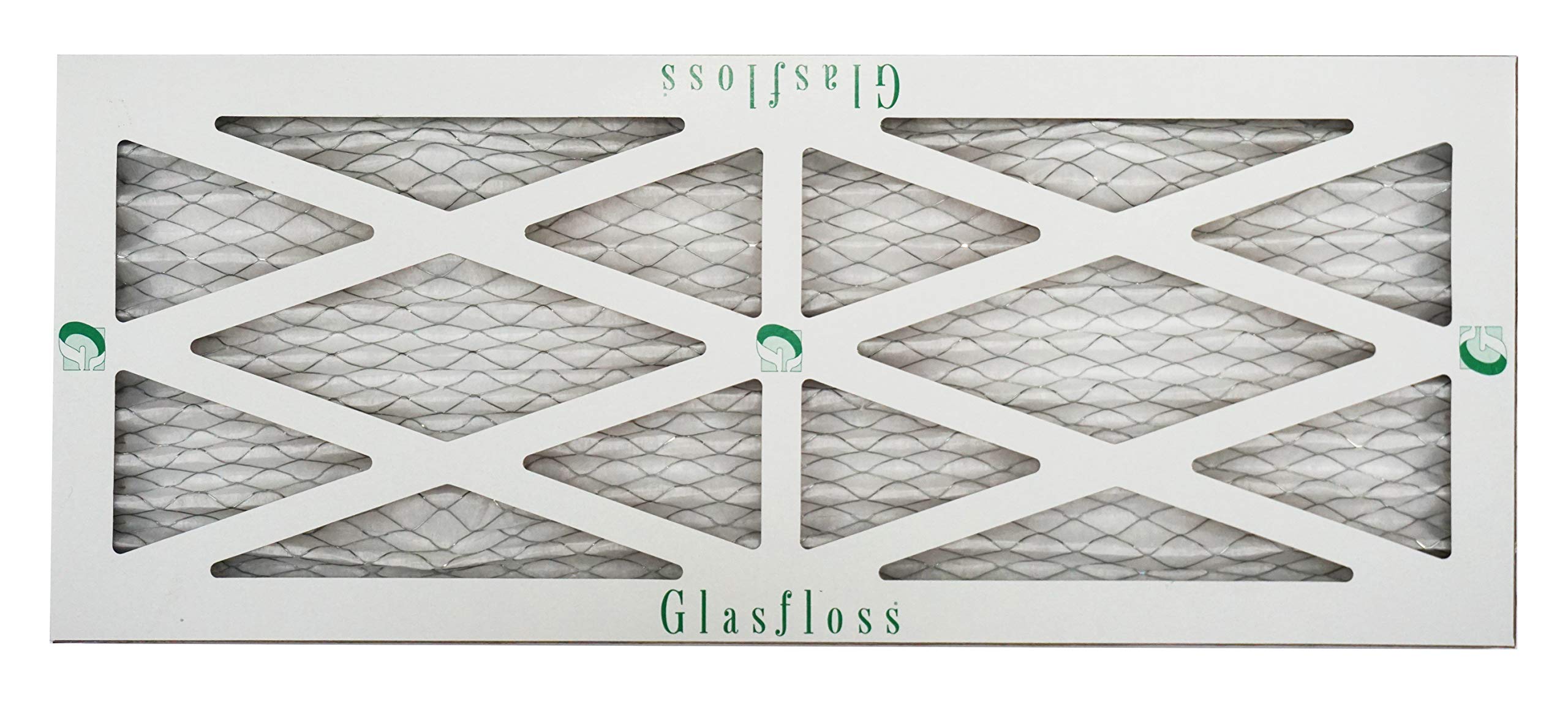

Glasfloss ZLP10241 Z-Line Standard Capacity Pleated Filter 10 inches x 24 inches x 1 inches

Product Description

The Glasfloss ZLP10241 Z-Line series pleated filter offers improved performance for various applications. This extended-surface, pleated-media filter is made of 100% synthetic fibers that do not absorb moisture and will not support microbial growth. It features a heavy-duty moisture-resistant beverage board encasing frame and a galvanized expanded metal backing.

• Heavy-Duty Moisture Resistant Construction
• Galvanized Expanded Metal Backing
• MERV 10 rating per the ANSI/ASHRAE 52.2 Test Standard

Product Highlights

The Glasfloss ZLP10241 filter is classified under U.L. std. 900 and is rated to withstand temperatures up to 180 degrees Fahrenheit.

Product Information

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: ZLP10241
• Country of Origin: USA

Technical Specifications

• Brand: Glasfloss
• MPN: ZLP10241
• Filter Type: Pleated
• Frame Type: Die-Cut Beverage Board
• Height: 24 in
• Length: 1 in
• MERV Rating: 10
• Width: 10 in
• Nominal Filter Size in Inches (W x H x D): 10 x 24 x 1
• Nominal Filter Thickness in Inches: 1
• Nominal Filter Width in Inches: 10
• Nominal Filter Height in Inches: 24
• Pleats per Linear Feet: 14
• Prop 65: Yes
• Removes Fine Dust: Yes
• Removes Smoke: No
• Filter Efficiency: 40% to 85%
• Filter Rating (Microns): 1.0 to 10.0
• Country of Origin: USA
• Temperature Rating: 180 deg F
• Media Material: Synthetic
• Actual Size: 9-1/2 in W x 23-1/2 in H x 7/8 in D
• Flow Rate: 300 FPM
• Initial Resistance: 0.21 in WG
• Depth: 1"
• Material: Synthetic
• Application: Replacement
