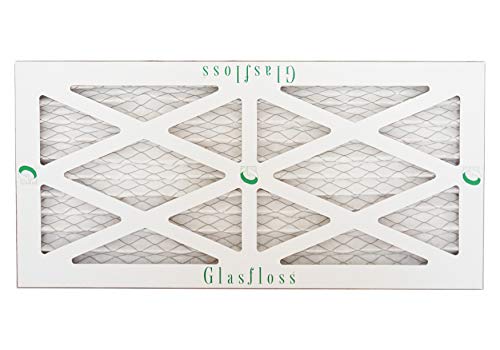

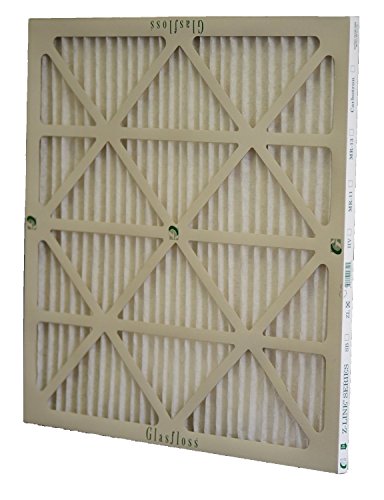

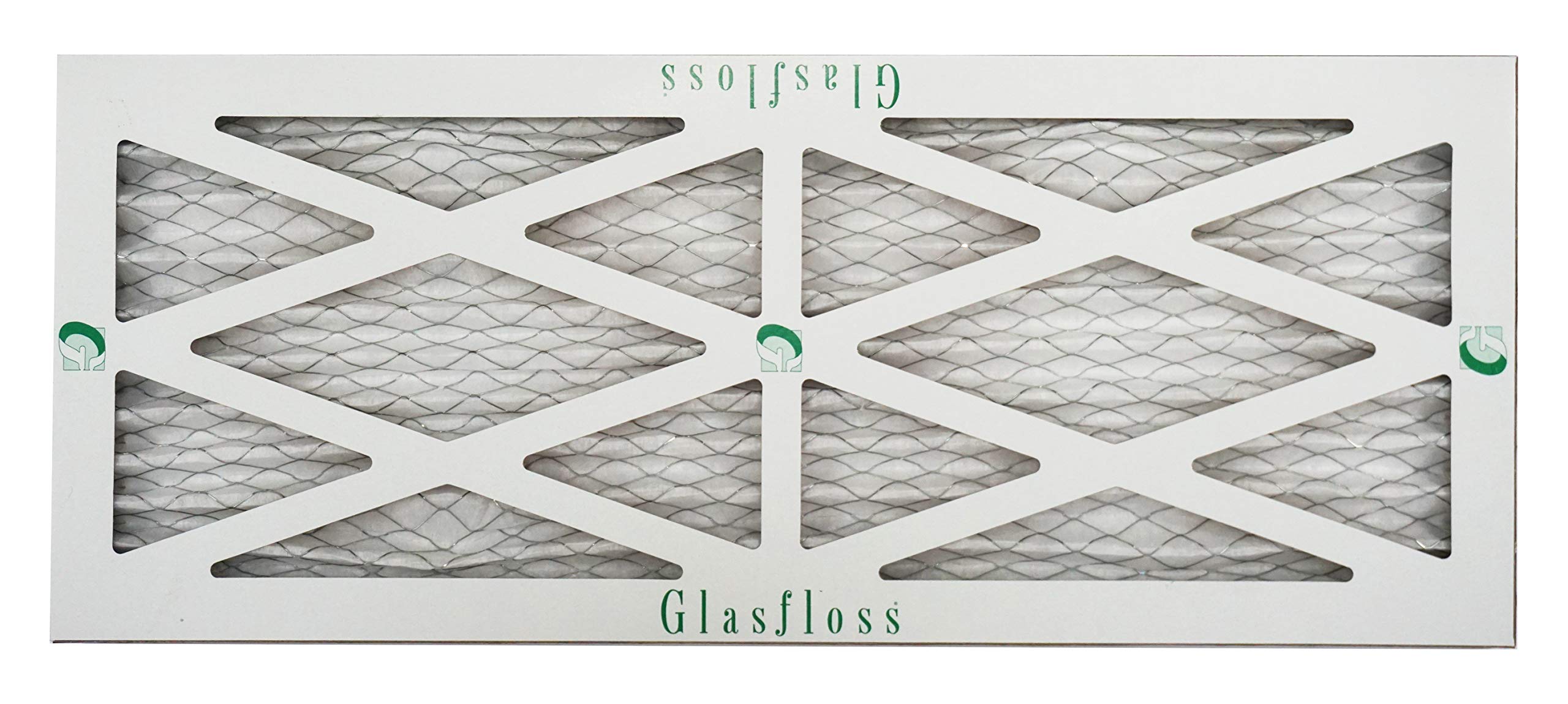

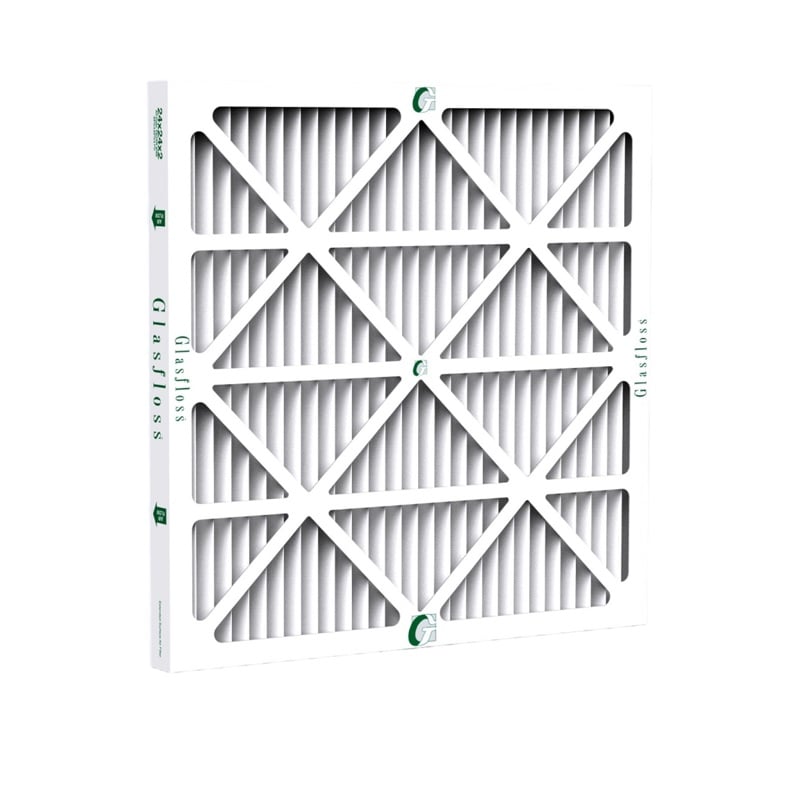

Glasfloss ZLP10201 Z-Line Standard Capacity Pleated Filter 10 inches x 20 inches x 1 inches

Product Description

The Glasfloss ZLP10201 Z-Line series pleated filters offer improved performance for various applications. These filters feature fibers that resist moisture and microbial growth. They achieve a MERV 10 rating per the ANSI/ASHRAE 52.2 Test Standard and are suitable as geothermal unit replacement filters.

• Heavy-Duty Moisture Resistant Construction
• Galvanized Expanded Metal Backing
• Features Media Separators
• MERV 10 rating

Product Highlights

Glasfloss Z-Line filters provide enhanced filtration with moisture-resistant construction and a galvanized metal backing for durability.

Product Information

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: ZLP10201
• Country of Origin: USA

Technical Specifications

• Brand: Glasfloss
• Filter Efficiency: 40% to 85%
• Filter Rating (Microns): 1.0 to 10.0
• Filter Type: Pleated
• Frame Type: Die-Cut Beverage Board
• Height: 20 in
• Length: 1 in
• MERV Rating: 10
• Nominal Filter Height in Inches: 20
• Nominal Filter Size in Inches (W x H x D): 10 x 20 x 1
• Nominal Filter Thickness in Inches: 1
• Nominal Filter Width in Inches: 10
• Pleats per Linear Feet: 14
• Prop 65: Yes
• Removes Fine Dust: Yes
• Removes Smoke: No
• Width: 10 in
• Country of Origin: USA
• Product Type: HVAC_AIR_FILTER
• Manufacturer: GlasFloss LP
• Model / MPN: ZLP10201
• Size: 1 inch
• Final Resistance: 1 in WG
• Flow Rate: 500 fpm
• Initial Resistance: 0.21 in-WG
• Media Material: Synthetic Fiber
• Mfg Standards/Approvals: ANSI/ASHRAE 52.2, Energy Star Qualified, LEED Certified, UL 900
• Nominal Pleat: 10 Plates/Linear-Ft
• Overall Dimensions: 19-1/2 in H x 9-1/2 in W x 1-3/4 in D
• Series: Z-Line ZL
• Temperature Rating: 180 deg F
• FPM: 300
• Material: Polyester
• Product Dimensions: 9.5"L x 9.5"W x 0.88"Th
• Compatible Devices: Air Conditioner, Furnace
• Actual Size: 9-1/2 x 19-1/2 x 7/8 in
• Rated Velocity: 300 fpm
