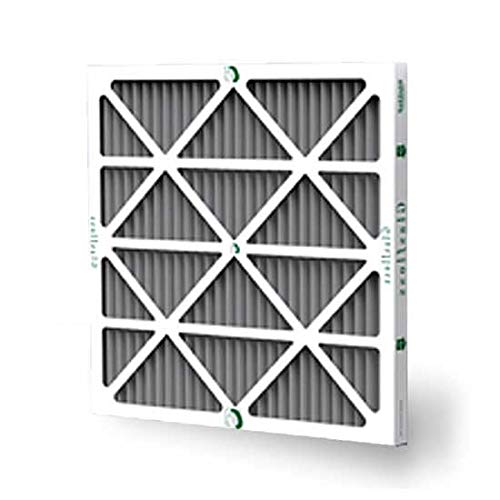

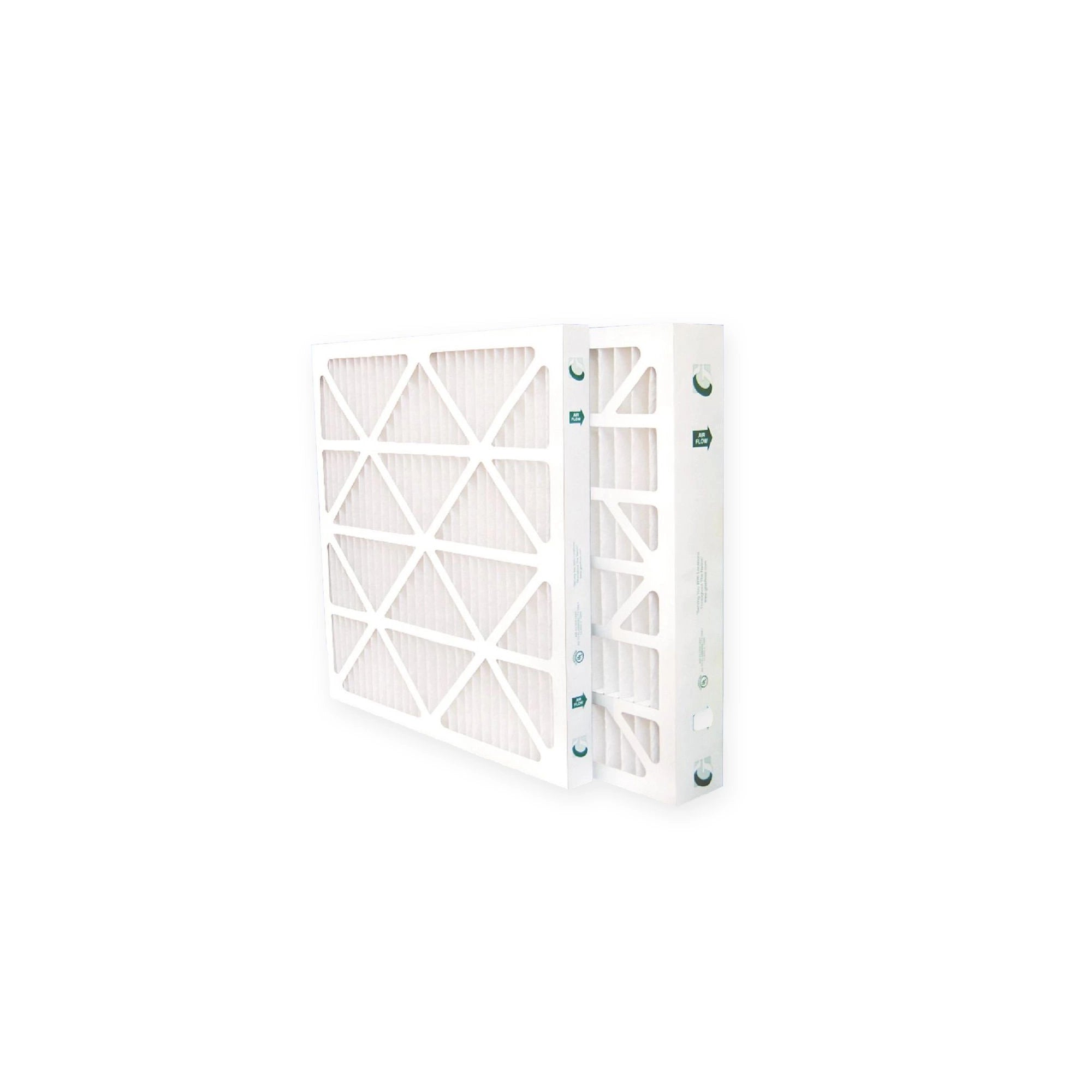

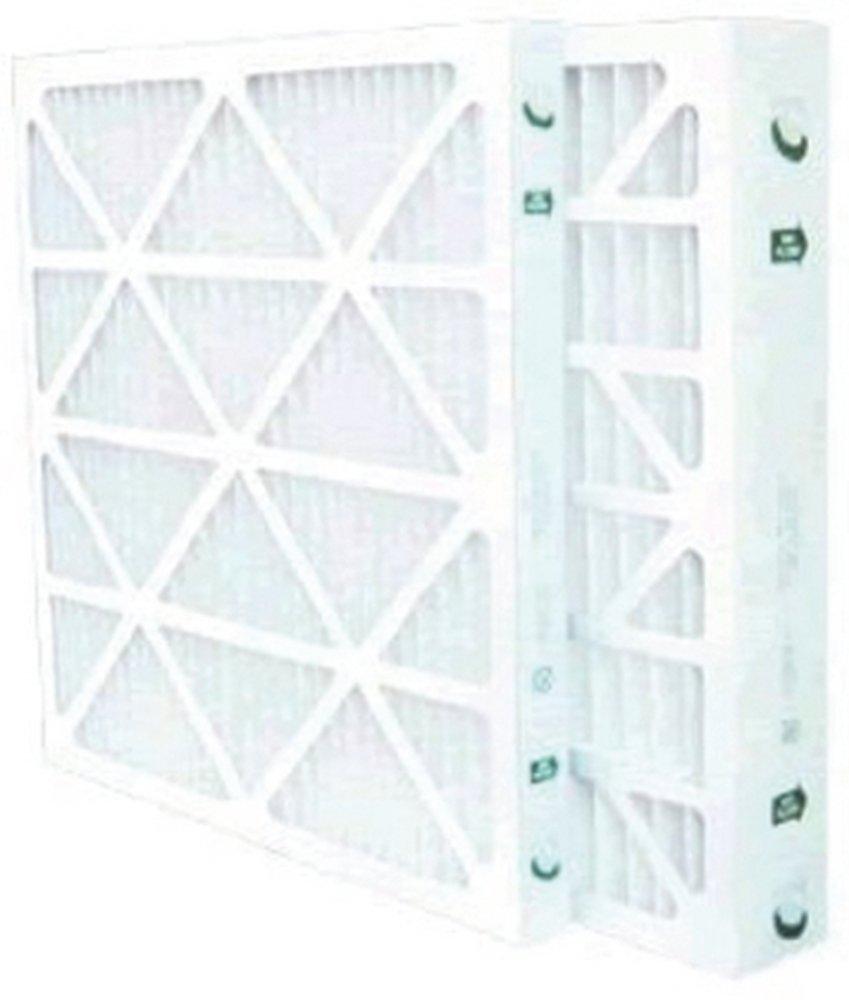

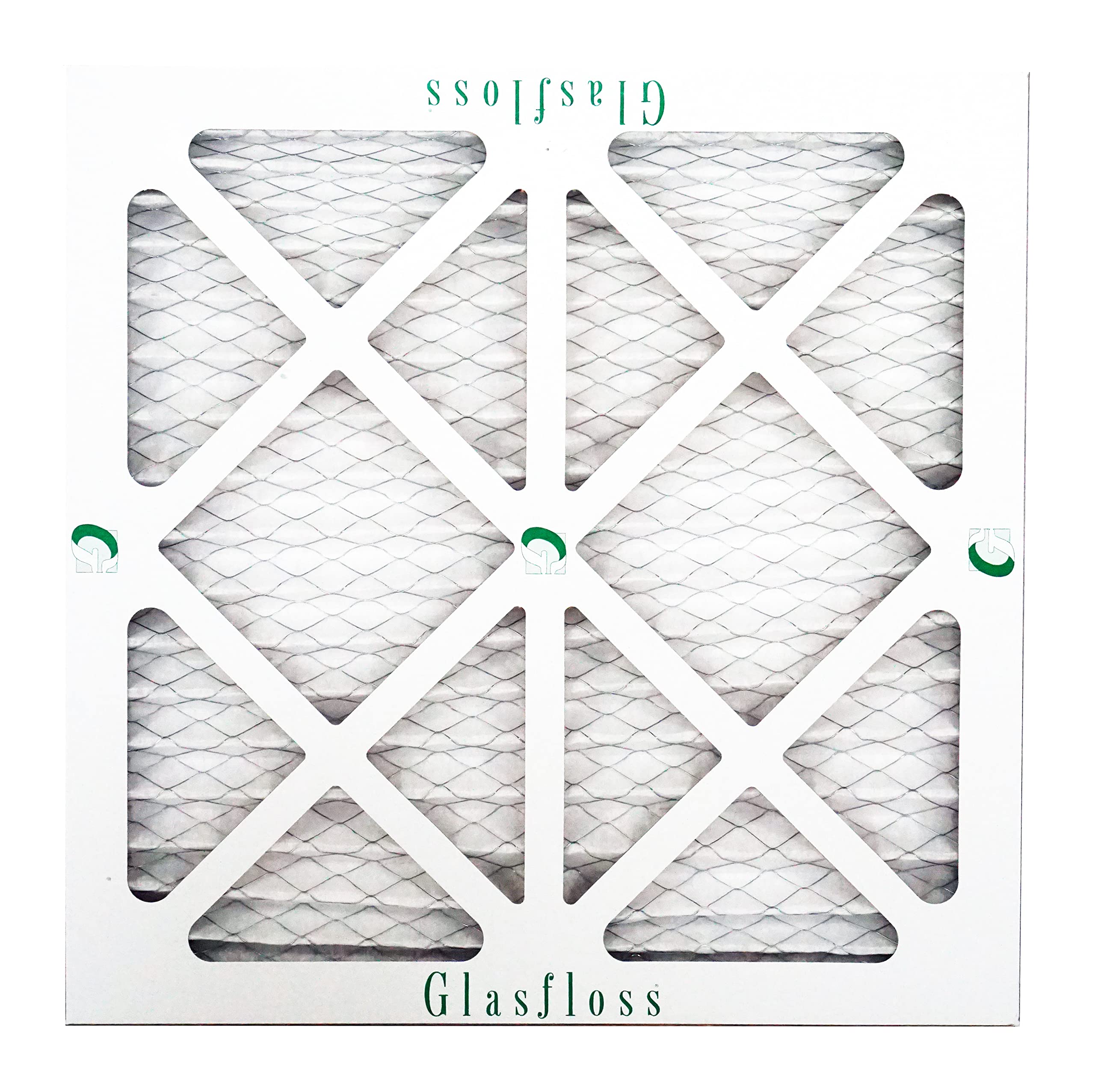

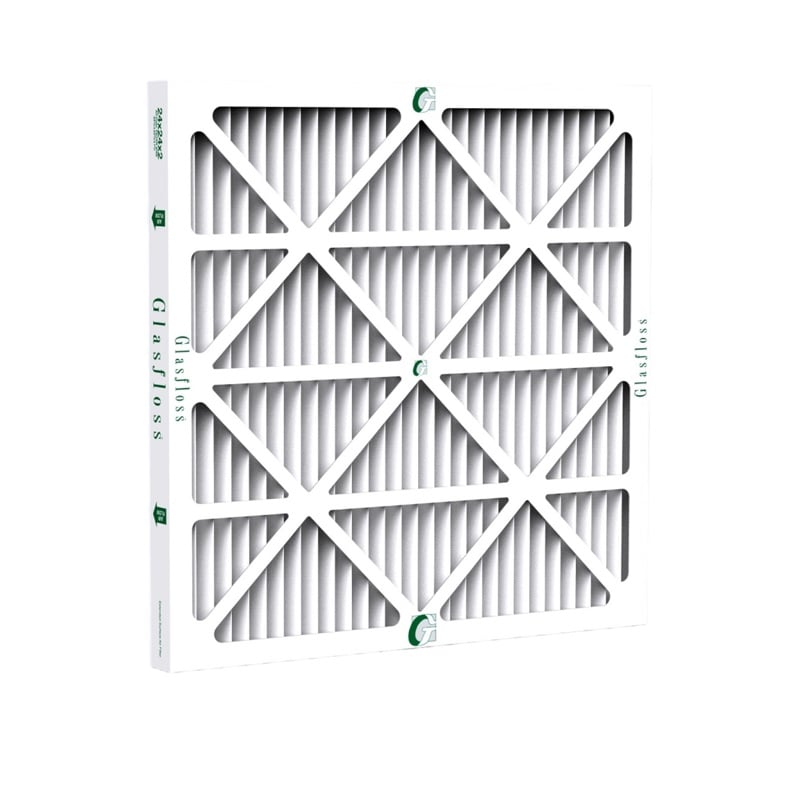

Glasfloss ZLP10101 Z-Line Standard Capacity Pleated Filter 10 inches x 10 inches x 1 inches

Product Description

The Glasfloss ZLP10101 Z-Line Series pleated filters offer improved performance for virtually every application. These filters feature fibers which do not absorb moisture and will not support microbial growth. The SB, ZL and HV filters achieve a MERV 10 rating per the ANSI/ASHRAE 52.2 Test Standard.

• Heavy-Duty Moisture Resistant Construction
• Galvanized Expanded Metal Backing
• MERV 10 rating

Product Highlights

Glasfloss Z-Line filters provide excellent performance and value for a wide range of applications. Ideal for residential, commercial, and industrial HVAC application.

Product Information

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: ZLP10101
• Country of Origin: USA

Technical Specifications

• Brand: Glasfloss
• MPN: ZLP10101
• Width: 10 in
• Height: 10 in
• Length: 1 in
• Frame Type: Die-Cut Beverage Board
• Filter Type: Pleated
• MERV Rating: 10
• Removes Smoke: No
• Country of Origin: USA
• Filter Efficiency: 40% to 85%
• Removes Fine Dust: Yes
• Pleats per Linear Feet: 14
• Filter Rating (Microns): 1.0 to 10.0
• Nominal Filter Width in Inches: 10
• Nominal Filter Height in Inches: 10
• Nominal Filter Thickness in Inches: 1
• Nominal Filter Size in Inches (W x H x D): 10 x 10 x 1
• UOM: EA
• UPC: 604443995666
• Depth: 1 in
• Final Resistance: 1 in WG
• Flow Rate: 300 fpm
• Initial Resistance: 0.18 in wg
• Media Material: Synthetic Fiber
• Mfg Standards/Approvals: ANSI/ASHRAE 52.2, Energy Star Qualified, LEED Certified, UL 900
• Nominal Pleat: 14 Plates/Linear-Ft
• Temperature Rating: 180 deg F
• Product Type: HVAC_AIR_FILTER
• Manufacturer: Glasfloss Industries
• Series: Z-Line ZL
• Actual Size: 9-1/2 x 9-1/2 x 7/8
• Material: Synthetic
