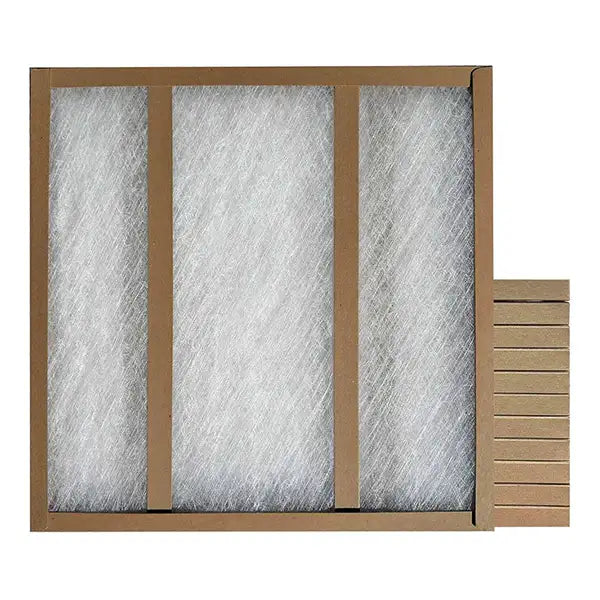

Glasfloss PTA_16X30X1 Disposable Panel Air Filter 16x30x1

Product Description

The GLASFLOSS PTA_16X30X1 is a disposable panel air filter built for reliable particulate capture in HVAC air handling systems. Measuring 16 inches wide by 30 inches tall by 1 inch deep, this filter fits a range of air handler, furnace, and ventilation applications. It is constructed with a heavy-duty one-piece craft-board frame and heavy-duty media backed by a metal grid on the air-leaving side to maintain structural integrity under operating pressure. Initial resistance is 0.1 inches WC and final resistance is 0.5 inches WC, with a rated face velocity of 300 FPM. Rated to 180 degrees F. Certified to UL 900, HARDI, and NAFA standards and manufactured in the USA.

The PTA_16X30X1 is suited for residential, commercial, and industrial HVAC installations where a standard one-inch panel filter is specified. Typical applications include forced-air furnace systems, rooftop units, air handling units, and inline filter racks. The 3.33 square feet of media area and rigid frame construction make it appropriate for both low-demand residential systems and more demanding light-commercial or industrial air handling setups where filter integrity under sustained airflow is required.

Key Features

• Heavy-duty one-piece craft-board frame resists collapse under sustained airflow
• Metal support grid on the air-leaving side maintains media position and prevents blowout
• 300 FPM rated face velocity with 0.1 inches WC initial and 0.5 inches WC final resistance
• Temperature rated to 180 degrees F for use in higher-heat HVAC environments
• Certified to UL 900, HARDI, and NAFA standards
• Disposable construction for straightforward replacement without cleaning
• Made in the USA

Compatibility

Designed as an OEM-style replacement or new-install panel filter for residential, commercial, and industrial HVAC systems requiring a 16-inch by 30-inch by 1-inch disposable panel filter in standard filter racks or filter frames.

Installation Notes

Panel air filters of this type are installed by HVAC technicians or qualified service personnel. Always power down the air handling unit or furnace at the disconnect before removing or installing a filter. Confirm the filter rack dimensions match the nominal filter size before installation, and verify airflow direction arrows on the frame align with the system airflow direction. Dispose of the used filter per local waste regulations.

Technical Specifications

• Overall Width: 16 inches
• Overall Height: 30 inches
• Overall Depth: 1 inch
• Media Area: 3.33 square feet
• Face Velocity: 300 FPM
• Initial Resistance: 0.1 inches WC
• Final Resistance: 0.5 inches WC
• Temperature Rating: 180 degrees F
• Frame: Heavy-Duty One-Piece Craft-Board
• Media: Heavy-Duty with Metal Exit-Side Grid
• Filter Type: Disposable Panel
• Applicable Standards: UL 900, HARDI, NAFA
• Application: Residential, Commercial, Industrial
• Country of Origin: USA

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: PTA_16X30X1
