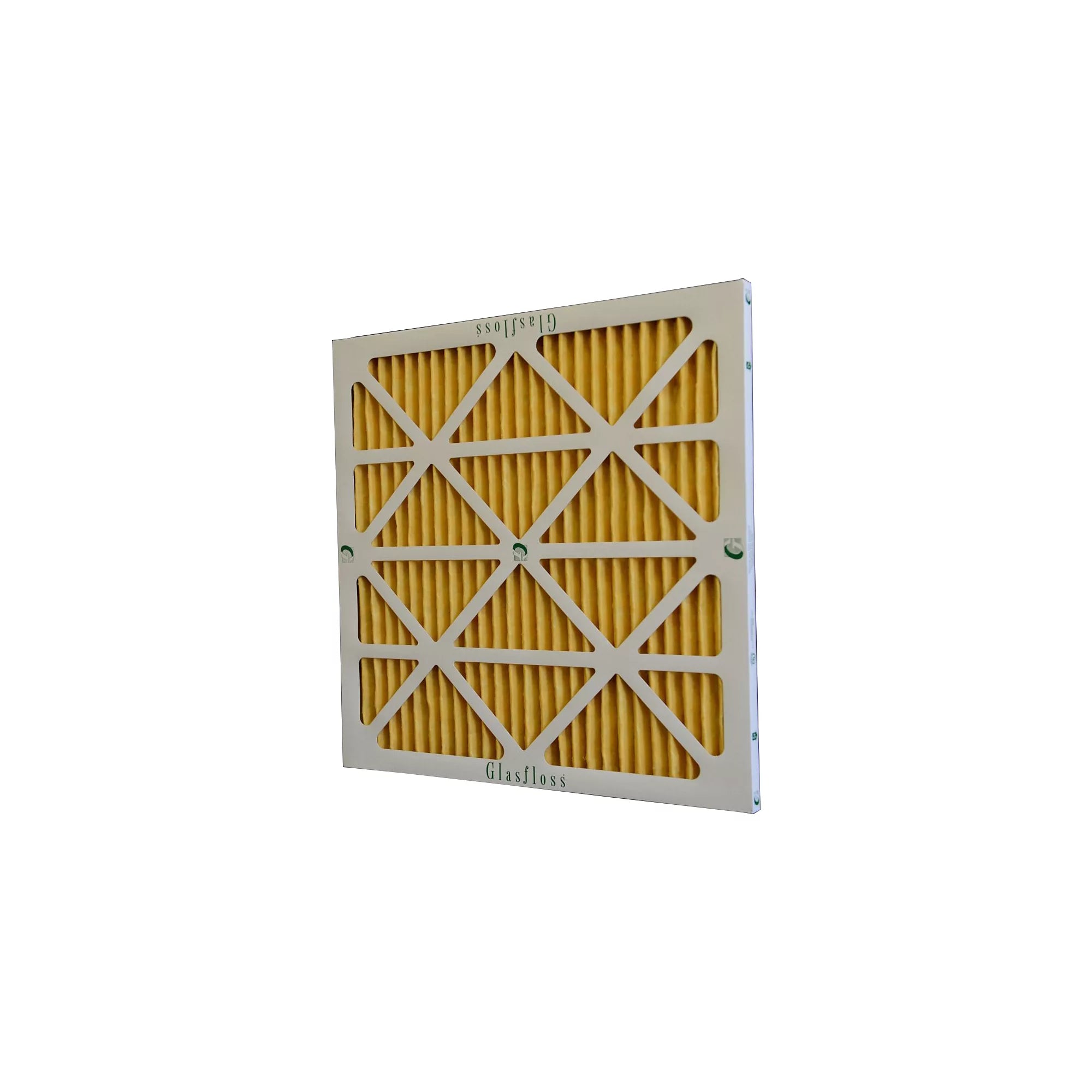

Glasfloss M1124242 Z-Line Series Pleated Filter MERV 11 24x24x2

Product Description

The Glasfloss M1124242 Z-Line Series Pleated Filter is an extended-surface pleated-media air filter, nominally sized at 24 x 24 x 2 inches. Designed for HVAC systems, it features 15 pleats per linear foot and achieves a MERV 11 rating per ANSI/ASHRAE 52.2. Constructed with 100% synthetic fibers, this filter is engineered to improve air quality by capturing fine dust and other particulates, while resisting microbial growth.

• Heavy-Duty Moisture Resistant Construction
• Galvanized Expanded Metal Backing
• Fibers which do not absorb moisture and will not support microbial growth

Product Highlights

Achieves a MERV 11 rating and is rated to withstand temperatures up to 180 degrees Fahrenheit.

Product Information

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: M1124242
• Country of Origin: USA

Technical Specifications

• Filter Efficiency: Not Rated
• Filter Rating (Microns): Equal to or greater than 85% but less than 90% at Range 3 (3.0 to 10.0 microns) / equal to or greater than 65% but less than 80% at Range 2 (1.0 to 3.0 microns) / equal to or greater than 20% but less than 35% at Range 3 (03. to 1.0 microns)
• Filter Type: Pleated
• Frame Type: Die-Cut Beverage Board
• MERV Rating: 11
• Pleats per Linear Foot: 15
• Removes Fine Dust: Yes
• Removes Smoke: No
• Nominal Filter Size (W x H x D): 24 x 24 x 2
• Series: Z-Line MR-11
• Actual Size: 23-3/8 x 23-3/8 x 1-3/4
• Material: Synthetic
• Flow: 500 FPM
• Media Square Feet: 17.61
• Initial Resistance: 0.31 W.G.
