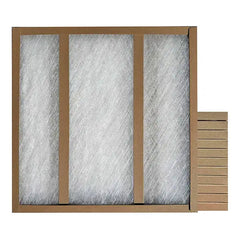

Glasfloss GDS_24X24X1 Panel Air Filter 24x24x1 Inches

Product Description

The GLASFLOSS GDS_24X24X1 is a disposable fiberglass panel air filter sized 24 inches by 24 inches by 1 inch, designed for forced-air HVAC systems in commercial, industrial, and residential applications. The filter uses progressively dense fiberglass media thermally bonded to a heavy-duty one-piece craft-board frame. Airflow resistance starts at 0.09 inches WC initial and rises to a final resistance of 0.5 inches WC, with a rated face velocity of 300 FPM. The double-strut internal frame construction provides 10% greater open media area compared to traditional metal-grill filters, supporting strong dust-holding capacity and consistent airflow performance across its service life.

This filter is suited for installation in commercial rooftop units, industrial air handlers, and residential furnace or air handler systems that accept a standard 1-inch panel filter. The craft-board frame eliminates sharp edges, making handling safer during changeout. The disposable design allows for straightforward removal and discard without disassembly. It is rated to 180 degrees F, making it compatible with equipment that sees elevated return-air temperatures. HVAC technicians and facility maintenance personnel are the typical installers for this filter type.

Key Features

• Progressively dense fiberglass media for efficient particle capture across the filter depth
• Heavy-duty one-piece craft-board frame with double-strut construction for durability under airflow pressure
• 10% greater open media area versus traditional metal-grill panel filters
• No sharp edges for safer handling during installation and disposal
• Rated to 180 degrees F for use in higher-temperature air-handling applications
• Meets UL 900, HARDI, and NAFA applicable standards

Compatibility

Designed as an OEM-style replacement panel filter for commercial, industrial, and residential forced-air HVAC systems requiring a 24-inch by 24-inch by 1-inch disposable panel filter.

Installation Notes

Installation is performed by licensed HVAC technicians or qualified maintenance personnel. Always shut down the air handler or furnace and confirm the unit is de-energized before opening the filter access panel. Install the filter with the airflow arrow on the frame pointing toward the blower and away from the return-air side. Dispose of the used filter in accordance with local waste guidelines.

Technical Specifications

• Filter Type: Disposable Panel
• Media: Fiberglass
• Frame: Heavy Duty 1-Piece Craft-Board
• Overall Width: 24 inches
• Overall Height: 24 inches
• Overall Depth: 1 inch
• Media Area: 4 square feet
• Face Velocity: 300 FPM
• Initial Resistance: 0.09 inches WC
• Final Resistance: 0.5 inches WC
• Temperature Rating: 180 degrees F
• Application: Commercial, Industrial, Residential
• Applicable Standards: UL 900, HARDI, NAFA
• Country of Origin: USA

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: GDS_24X24X1
