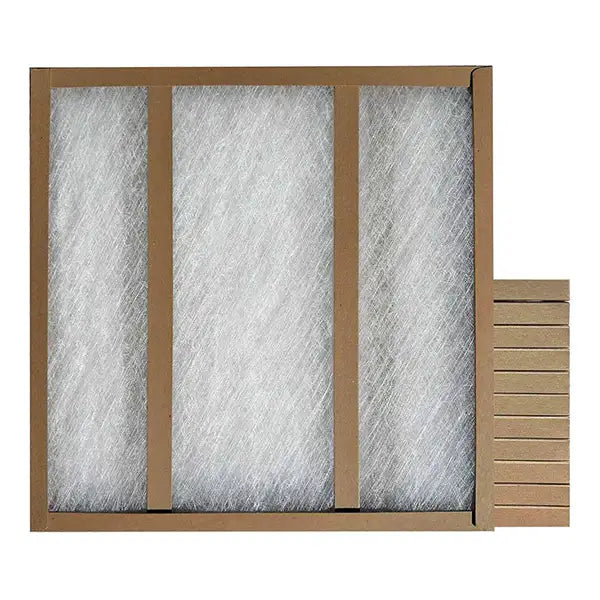

Glasfloss GDS_20X25X2 Fiberglass Panel Filter 20x25x2

Product Description

The GLASFLOSS GDS_20X25X2 is a disposable fiberglass panel air filter sized at 20 inches wide by 25 inches tall by 2 inches deep, designed for forced-air HVAC systems in commercial, industrial, and residential applications. The filter uses progressively dense fiberglass media thermally bonded to a heavy-duty one-piece craft-board frame, providing 3.47 square feet of media area. Airflow is rated at 500 FPM with an initial resistance of 0.28 inches WC and a final resistance of 0.50 inches WC. The reinforced double-strut frame construction delivers 10% greater open media area than traditional metal grill filters and is rated to 180 degrees F. Licensed HVAC technicians and building maintenance professionals are the primary installers.

This panel filter suits a wide range of forced-air systems where a 20 by 25 by 2 inch filter slot is specified. It is appropriate for light commercial air handling units, industrial ventilation systems, and residential furnace or air handler applications. The one-piece craft-board frame eliminates sharp edges for safer handling during filter changes and allows for easier disposal without disassembly. The design also reduces carton weight compared to metal-frame alternatives, making storage and job-site transport more practical for service technicians managing multiple units.

Key Features

• Progressively dense fiberglass media for efficient dust holding across the full filter life
• Heavy-duty one-piece craft-board frame with reinforced double-strut construction for structural integrity
• 10% greater open media area compared to traditional metal grill panel filters
• No sharp edges — safer handling during installation and disposal
• Rated to 180 degrees F for use in higher-temperature airstreams
• Disposable design allows straightforward replacement without tools
• Manufactured in the USA and listed to UL 900

Compatibility

Designed for HVAC filter housings, air handlers, and furnace filter slots accepting a 20 by 25 by 2 inch panel filter in commercial, industrial, and residential installations.

Installation Notes

A licensed HVAC technician or qualified maintenance professional should install this filter. Power down or set the thermostat to off before opening the filter compartment to prevent unfiltered air from bypassing the media during the changeout. Verify airflow direction arrow on the frame aligns with system airflow before securing the access panel. Dispose of the used filter per local waste-handling guidelines.

Technical Specifications

• Overall Width: 20 inches
• Overall Height: 25 inches
• Overall Depth: 2 inches
• Media Area: 3.47 square feet
• Flow Rate: 500 FPM
• Initial Resistance: 0.28 inches WC
• Final Resistance: 0.50 inches WC
• Temperature Rating: 180 degrees F
• Frame: Heavy-Duty 1-Piece Craft-Board
• Media: Fiberglass
• Filter Type: Disposable
• Application: Commercial, Industrial, Residential
• Standards: UL 900, HARDI, NAFA
• Country of Origin: USA

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: GDS_20X25X2
