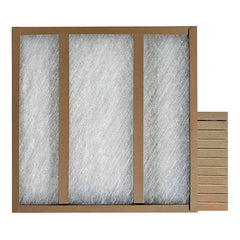

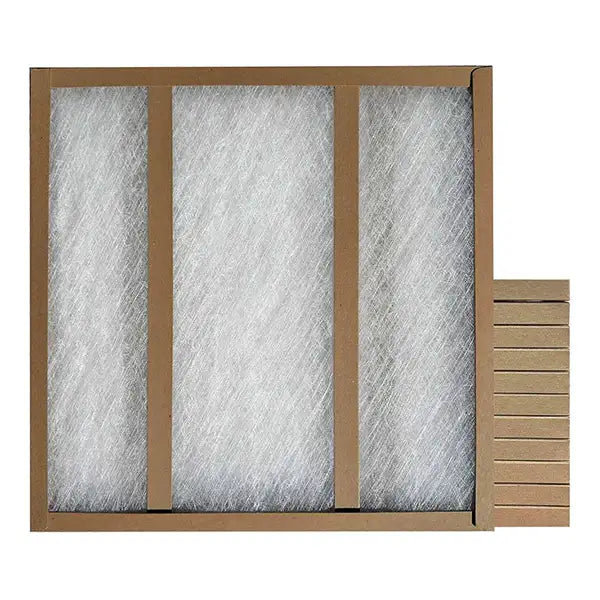

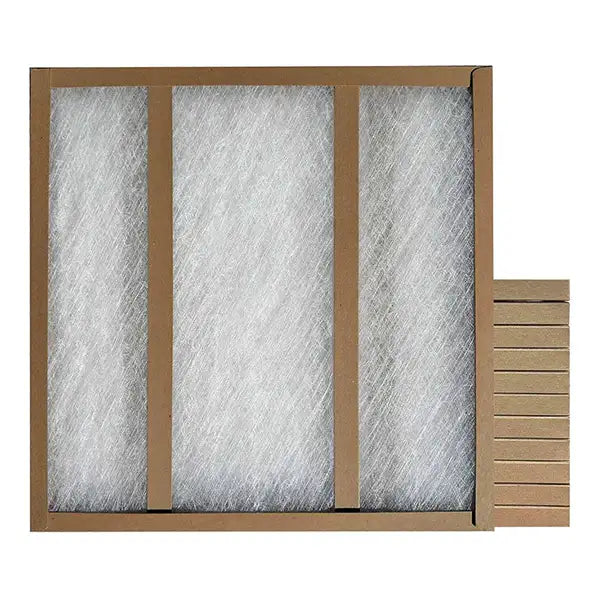

Glasfloss GDS_16X20X2 Fiberglass Panel Filter 16x20x2

Product Description

The GLASFLOSS GDS_16X20X2 is a disposable fiberglass panel air filter designed for commercial, industrial, and residential HVAC applications. Measuring 16 inches wide by 20 inches tall by 2 inches deep, it delivers a rated airflow of 500 FPM with an initial resistance of 0.28 inches WC and a final resistance of 0.50 inches WC. The filter uses progressively dense fiberglass media thermally bonded to a heavy-duty one-piece craft-board frame. The double-strut frame construction provides structural rigidity across the full 2.22 square feet of media area. HVAC technicians and facilities maintenance professionals install this filter in standard panel filter housings as a routine maintenance replacement.

The GDS_16X20X2 fits standard 16 x 20 x 2 inch filter slots found in commercial air handlers, industrial ventilation units, and residential forced-air furnaces and air handlers. Its one-piece craft-board box frame eliminates sharp metal edges, making it safer to handle during filter changeouts. The design provides 10 percent greater open media area compared to traditional metal grill filters, supporting strong dust holding capacity across all three application categories. Energy Star rated and manufactured in the USA, this filter suits scheduled preventive maintenance programs in light commercial and residential settings.

Key Features

• Progressively dense fiberglass media with thermal bonding for consistent filtration across the media face
• Heavy-duty one-piece craft-board frame with reinforced double-strut construction for durability in demanding applications
• 2.22 square feet of media area with 10 percent greater open area than traditional metal grill filters
• Initial resistance of 0.28 inches WC and final resistance of 0.50 inches WC at 500 FPM
• Eliminates sharp edges for safer handling and simpler disposal compared to metal-frame alternatives
• Energy Star rated and made in the USA

Compatibility

Designed as a direct-fit replacement for standard 16 x 20 x 2 inch panel filter applications in commercial, industrial, and residential HVAC systems. Meets UL 900, HARDI, and NAFA applicable standards.

Installation Notes

Panel air filters of this type are installed and replaced by HVAC technicians or qualified maintenance personnel. Always power down the air handler or furnace and set the thermostat to off before opening the filter access door. Confirm airflow direction arrow on the frame aligns with system airflow before seating the filter. Dispose of the used filter in accordance with local waste disposal requirements.

Technical Specifications

• Dimensions: 16 inches x 20 inches x 2 inches
• Media Area: 2.22 square feet
• Media Type: Fiberglass, thermally bonded
• Frame: Heavy-duty one-piece craft-board
• Flow Rate: 500 FPM
• Initial Resistance: 0.28 inches WC
• Final Resistance: 0.50 inches WC
• Temperature Rating: 180 degrees F
• Filter Type: Disposable panel
• Application: Commercial, Industrial, Residential
• Applicable Standards: UL 900, HARDI, NAFA
• Country of Origin: USA

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: GDS_16X20X2
