Glasfloss GDS_14X30X1 Panel Air Filter 14x30x1 in

Product Description

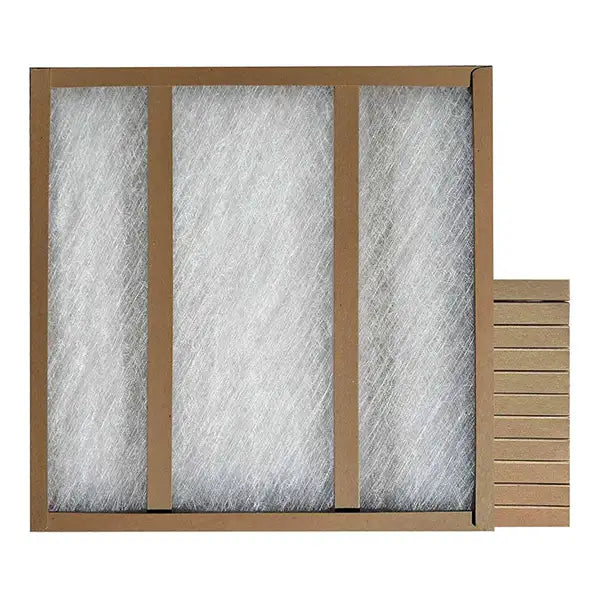

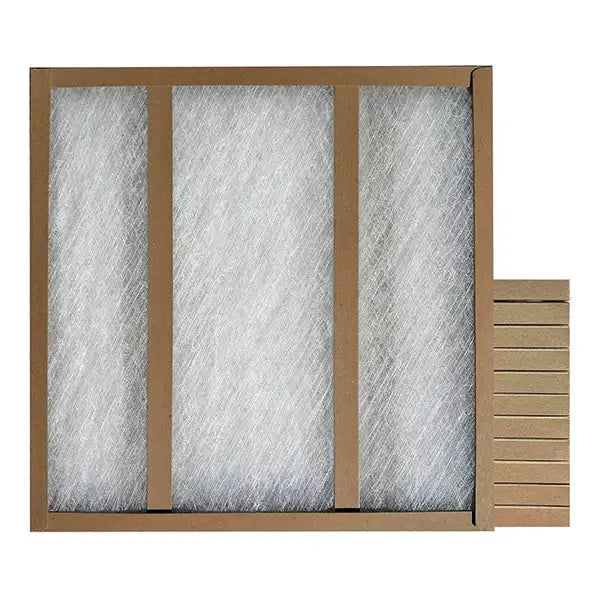

The GLASFLOSS GDS_14X30X1 is a disposable fiberglass panel air filter designed for forced-air HVAC systems in commercial, industrial, and residential applications. Measuring 14 inches wide by 30 inches tall by 1 inch deep, it delivers an effective media area of 2.91 square feet with a rated airflow of 300 FPM. Initial resistance is 0.09 inches WC, with a final resistance of 0.5 inches WC. The one-piece craft-board frame uses a reinforced double-strut construction that provides 10 percent greater open media area than traditional metal grill filters, improving dust holding capacity while keeping handling safe and disposal clean.

This filter fits ducted HVAC air handlers, furnaces, and return-air grilles in residential, light commercial, and industrial settings where a standard 1-inch throwaway panel filter is required. The progressively dense fiberglass media is thermally bonded for structural integrity throughout the service cycle. Its craft-board frame eliminates sharp edges, making it suitable for high-volume replacement programs where technician handling speed and safety matter. Rated for continuous operation up to 180 degrees F, it holds up in mechanical rooms and rooftop units subject to elevated ambient temperatures. Manufactured in the USA and rated Energy Star compliant.

Key Features

• 14 x 30 x 1 inch nominal size with 2.91 square feet of effective media area
• Progressively dense fiberglass media, thermally bonded for consistent performance
• Heavy-duty one-piece craft-board frame with reinforced double-strut construction
• 10 percent greater open media area versus traditional metal grill filters
• Initial resistance 0.09 inches WC, final resistance 0.5 inches WC at 300 FPM
• Rated to 180 degrees F; meets UL 900, HARDI, and NAFA standards
• Energy Star rated, made in USA, fully disposable with no sharp edges

Compatibility

Designed as an OEM-style replacement panel filter for ducted forced-air HVAC systems requiring a 14 x 30 x 1 inch disposable fiberglass filter in commercial, industrial, or residential installations.

Installation Notes

Installation is performed by HVAC technicians or qualified maintenance personnel. Power down or set the thermostat to off before opening the filter cabinet or return-air grille to avoid drawing an unfiltered air stream through the system. Confirm airflow direction arrow on the frame aligns with the direction of air movement toward the blower. Dispose of the used filter in a sealed bag to contain captured particulates.

Technical Specifications

• Overall Width: 14 inches
• Overall Height: 30 inches
• Overall Depth: 1 inch
• Media Area: 2.91 square feet
• Flow Rate: 300 FPM
• Initial Resistance: 0.09 inches WC
• Final Resistance: 0.5 inches WC
• Temperature Rating: 180 degrees F
• Media: Fiberglass
• Frame: Heavy Duty 1-Piece Craft-Board
• Filter Type: Disposable Panel
• Application: Commercial, Industrial, Residential
• Applicable Standards: UL 900, HARDI, NAFA
• Country of Origin: USA

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: GDS_14X30X1
