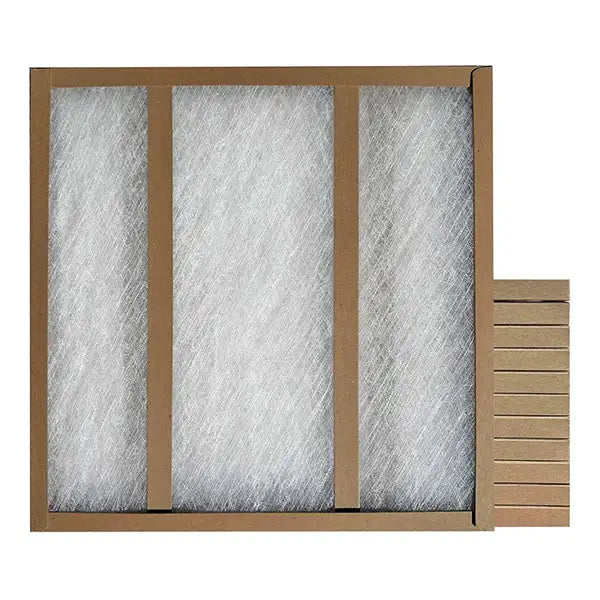

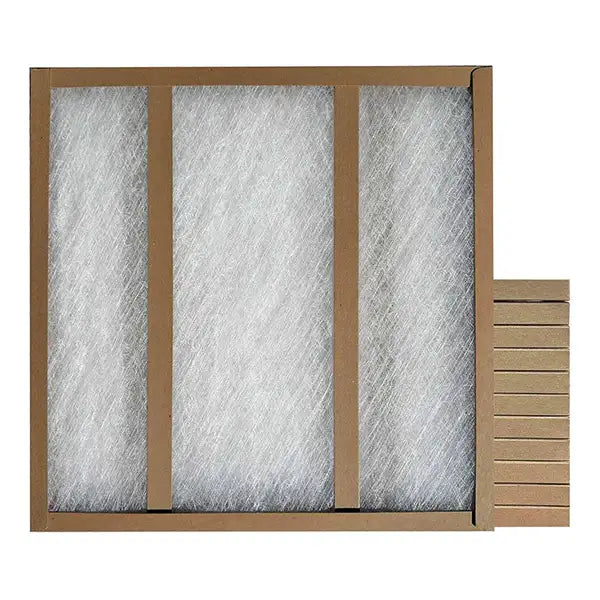

Glasfloss GDS_14X25X1 Fiberglass Panel Air Filter

Product Description

The GLASFLOSS GDS_14X25X1 is a disposable fiberglass panel air filter designed for use in forced-air HVAC systems across commercial, industrial, and residential applications. Measuring 14 inches wide by 25 inches tall by 1 inch deep, it delivers an initial resistance of 0.09 inches WC and a final resistance of 0.5 inches WC at a rated airflow of 300 FPM. The heavy-duty one-piece craft-board frame uses a reinforced double-strut construction that provides superior rigidity and 10% greater open media area than traditional metal-grill filters, improving dust holding capacity while simplifying end-of-life disposal.

This filter is suited for a wide range of HVAC installations including rooftop units, air handling units, and packaged systems in light commercial and industrial settings, as well as residential furnaces and air handlers. Its progressively dense fiberglass media traps airborne particulates efficiently throughout the filter's service life. The double-strut frame eliminates sharp edges, making handling safer for technicians during changeouts, and reduces carton weight compared to metal-frame alternatives. It is manufactured in the USA and carries an Energy Star rating.

Key Features

• Disposable fiberglass media with progressively dense construction for consistent particulate capture
• Heavy-duty one-piece craft-board frame with reinforced double-strut design for durability under sustained airflow
• 10% greater open media area than traditional metal-grill panel filters, improving dust holding capacity
• No sharp edges for safer handling and easier disposal at end of service life
• Rated to 180 degrees F, suitable for demanding commercial and industrial HVAC environments
• Energy Star rated and manufactured in the USA

Compatibility

Designed as an OEM-style replacement panel filter for commercial, industrial, and residential forced-air HVAC systems accepting a 14 x 25 x 1 inch filter size. Meets UL 900, HARDI, and NAFA applicable standards.

Installation Notes

Installation is performed by HVAC technicians or qualified service professionals. Always shut down the air handler or furnace and set the thermostat to the off position before removing the existing filter. Confirm airflow direction arrow on the frame aligns with the direction of airflow in the system before seating the filter. Disposable design means the filter should be bagged and discarded at end of service life rather than cleaned or reused.

Technical Specifications

• Filter Dimensions: 14 x 25 x 1 inches
• Media Area: 2.43 square feet
• Media Type: Fiberglass
• Frame: Heavy-duty one-piece craft-board
• Airflow Rating: 300 FPM
• Initial Resistance: 0.09 inches WC
• Final Resistance: 0.5 inches WC
• Temperature Rating: 180 degrees F
• Filter Type: Disposable
• Application: Commercial, Industrial, Residential
• Certifications: UL 900, HARDI, NAFA, Energy Star
• Country of Origin: USA

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: GDS_14X25X1
