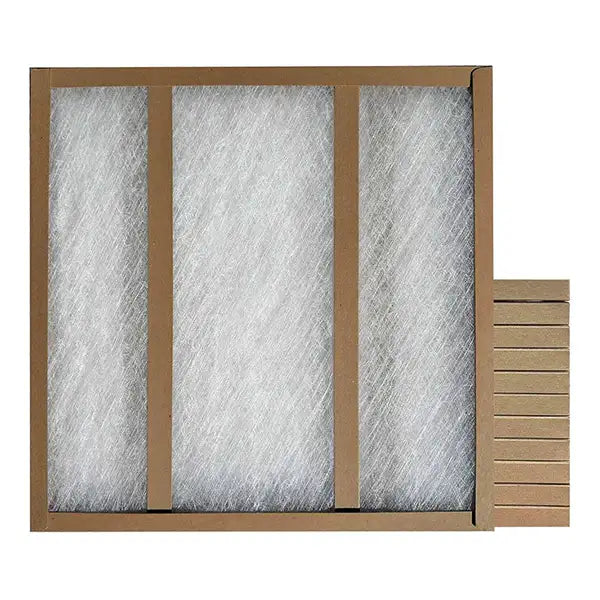

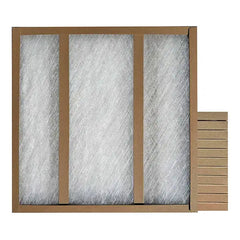

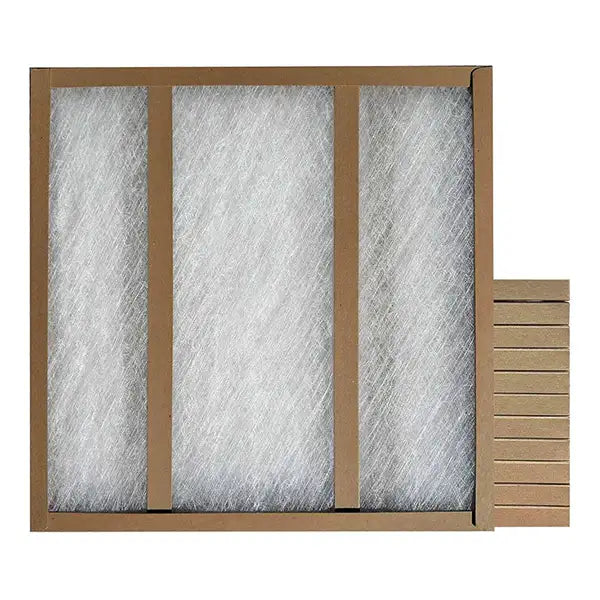

Glasfloss GDS_14X24X1 Fiberglass Panel Filter 14x24x1

Product Description

The GLASFLOSS GDS_14X24X1 is a disposable fiberglass panel air filter designed for forced-air HVAC systems in commercial, industrial, and residential applications. Measuring 14 inches wide by 24 inches tall by 1 inch deep, it delivers a 2.33 square foot media area and a rated face velocity of 300 FPM. The filter uses progressively dense fiberglass media that is thermally bonded for consistent particle capture. Initial resistance is 0.09 inches WC, with a final resistance of 0.5 inches WC, making it well-suited for low-restriction airflow scenarios. HVAC technicians and facility maintenance professionals are the typical installers.

This panel filter fits standard 14 x 24 x 1 inch filter slots in air handlers, furnaces, and rooftop units across commercial, industrial, and residential installations. The heavy-duty one-piece craft-board box frame provides structural integrity under airflow loads and eliminates the sharp metal edges common in traditional grill-style filters. The double-strut internal construction opens 10 percent more media area compared to conventional metal grill filters, improving dust holding capacity and airflow efficiency. Its disposable design simplifies changeout and reduces disposal effort.

Key Features

• Progressively dense fiberglass media with thermally bonded construction for reliable filtration
• Heavy-duty one-piece craft-board frame rated for commercial, industrial, and residential use
• Reinforced double-strut design delivers 10 percent greater open media area than traditional metal grill filters
• Low initial resistance of 0.09 inches WC supports efficient system airflow
• No sharp edges for safer handling during installation and disposal
• Rated to 180 degrees F; meets UL 900, HARDI, and NAFA applicable standards
• Energy Star rated and manufactured in the USA

Compatibility

Designed as a direct-fit disposable panel filter for any forced-air system accepting a 14 x 24 x 1 inch filter. Suitable for commercial, industrial, and residential HVAC applications per the manufacturer.

Installation Notes

Installation is performed by HVAC technicians or qualified maintenance personnel. Always shut down the air handler or furnace and set the thermostat to off before removing or installing the filter. Confirm airflow direction arrows on the filter frame align with the system airflow direction before seating the filter. Disposable panel filters should be discarded rather than cleaned; follow local regulations for fiberglass material disposal.

Technical Specifications

• Dimensions: 14 x 24 x 1 inches
• Media Area: 2.33 square feet
• Media Type: Fiberglass
• Frame: Heavy-duty one-piece craft-board
• Filter Type: Disposable panel
• Face Velocity: 300 FPM
• Initial Resistance: 0.09 inches WC
• Final Resistance: 0.5 inches WC
• Temperature Rating: 180 degrees F
• Application: Commercial, Industrial, Residential
• Applicable Standards: UL 900, HARDI, NAFA
• Country of Origin: USA

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: GDS_14X24X1
