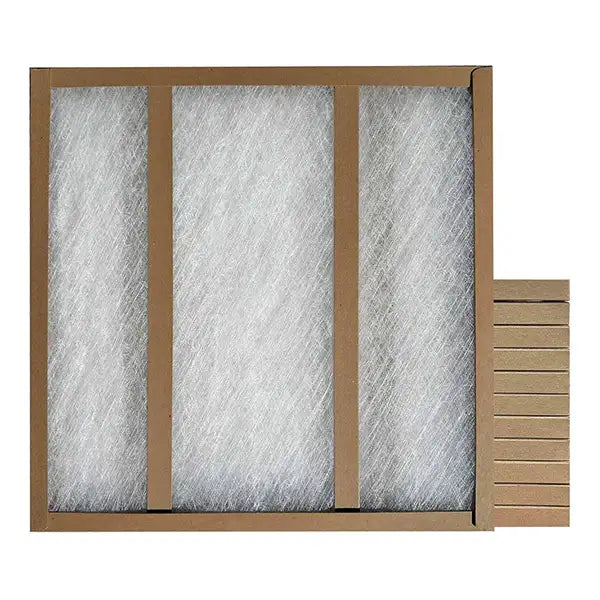

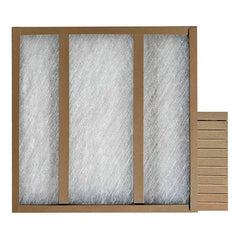

Glasfloss GDS_14X20X1 Fiberglass Panel Air Filter 14x20x1

Product Description

The GLASFLOSS GDS_14X20X1 is a disposable fiberglass panel air filter designed for use in forced-air HVAC systems across commercial, industrial, and residential applications. Measuring 14 inches wide by 20 inches tall by 1 inch deep, it delivers 1.94 square feet of media area with an airflow rating of 300 FPM. The filter uses progressively dense fiberglass media that is thermally bonded for consistent performance and excellent dust-holding capacity. A heavy-duty one-piece craft-board frame with reinforced double-strut construction provides rigidity throughout the filter service life. HVAC technicians and facility maintenance personnel install this filter as a standard panel replacement in air handlers, furnaces, and return-air grilles.

This filter is rated for commercial, industrial, and residential HVAC installations where a cost-effective, disposable panel filter is required. The one-piece box frame design provides 10 percent greater open media area compared to traditional metal-grill filters, which supports airflow efficiency and reduces static pressure buildup. The frameless-edge design eliminates sharp corners for safer handling during changeouts, and the lightweight craft-board construction reduces disposal weight. The 1-inch depth fits standard filter tracks sized for 14 x 20 x 1 nominal slots. This filter is rated to 180 degrees F, making it suitable for applications with elevated supply-air temperatures.

Key Features

• Progressively dense fiberglass media with thermally bonded construction for consistent dust capture
• Heavy-duty one-piece craft-board frame with reinforced double-strut design for durability
• 10 percent greater open media area than traditional metal-grill panel filters
• Initial resistance of 0.09 inches WC and final resistance of 0.5 inches WC for predictable pressure-drop performance
• Disposable construction with no sharp edges for safer, faster filter changes
• Energy Star rated and compliant with UL 900, HARDI, and NAFA standards
• Made in the USA

Compatibility

Designed as an OEM-style replacement panel filter for forced-air HVAC systems accepting a 14 x 20 x 1 inch nominal filter size in commercial, industrial, and residential applications.

Installation Notes

Installation is performed by licensed HVAC technicians or qualified maintenance personnel. Power down the air-handling unit or furnace before removing the existing filter and installing the replacement. Confirm airflow direction arrow on the filter frame is oriented toward the blower before securing the unit access panel. Dispose of used filters in accordance with local waste guidelines; the craft-board frame requires no special handling for standard disposal.

Technical Specifications

• Filter Dimensions: 14 x 20 x 1 inches
• Media Area: 1.94 square feet
• Media Type: Fiberglass, thermally bonded
• Frame Material: Heavy-duty one-piece craft-board
• Airflow Rating: 300 FPM
• Initial Resistance: 0.09 inches WC
• Final Resistance: 0.5 inches WC
• Maximum Temperature Rating: 180 degrees F
• Filter Type: Disposable panel
• Application: Commercial, industrial, residential
• Applicable Standards: UL 900, HARDI, NAFA
• Country of Origin: USA

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: GDS_14X20X1
