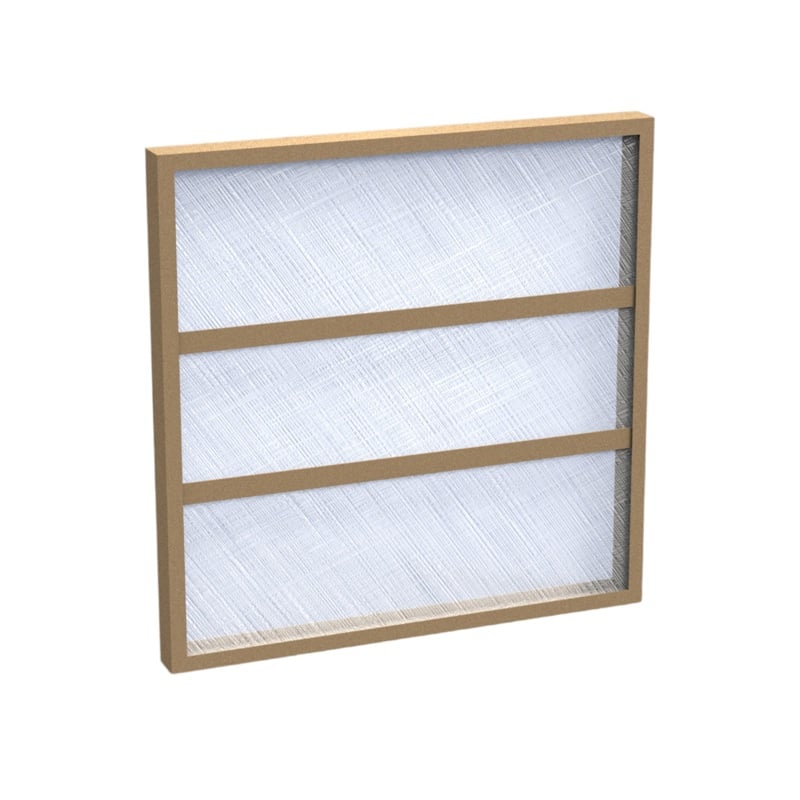

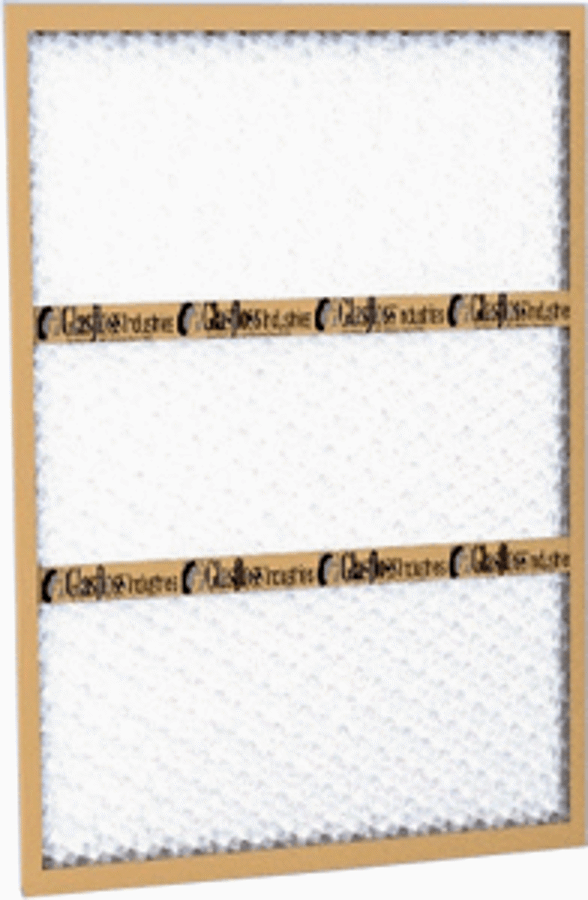

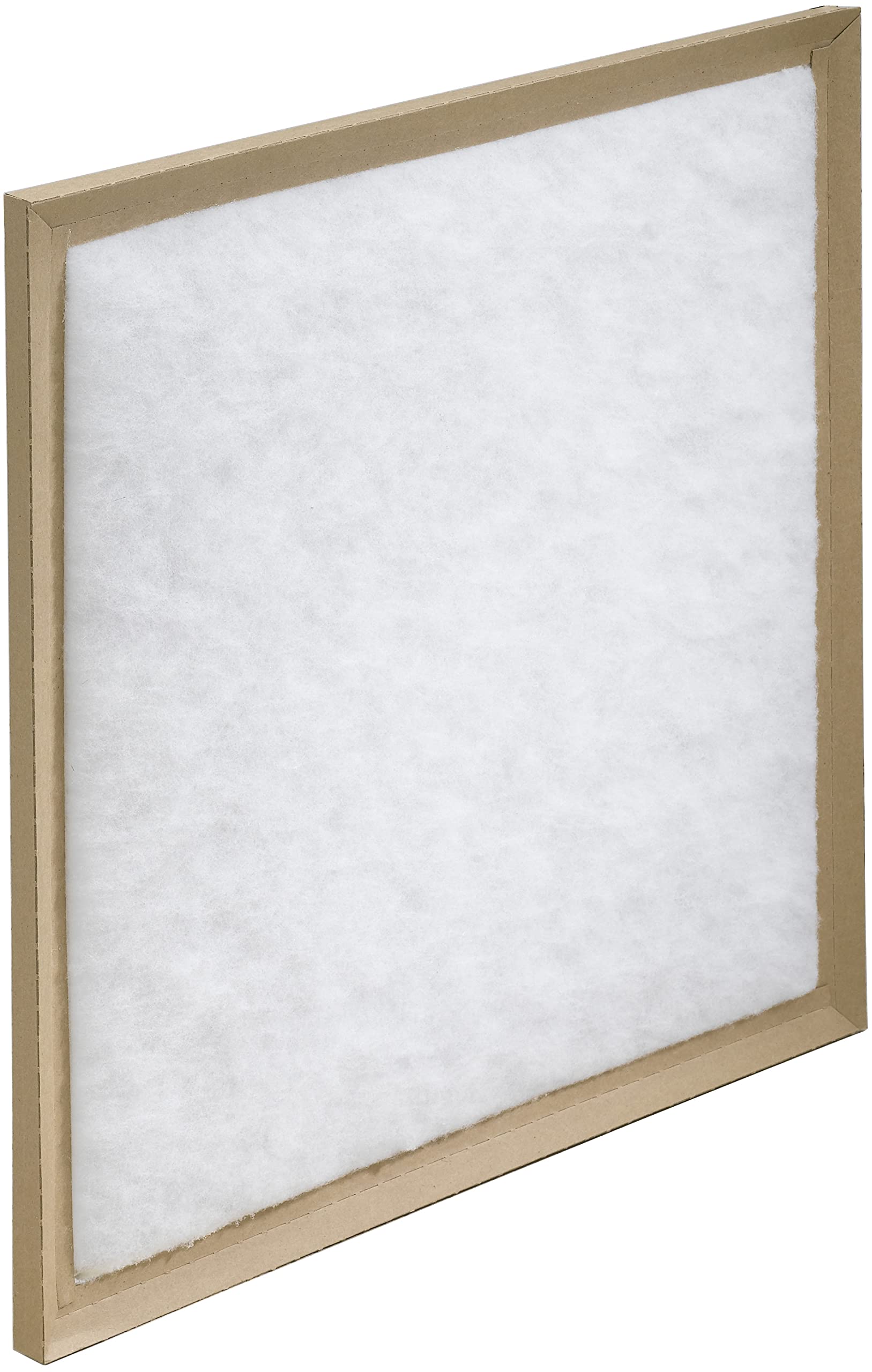

Glasfloss GDS20251 GDS Series 20 inches x 25 inches x 1 inches MERV 5 Fiberglass Filter

Product Description

The Glasfloss GDS20251 disposable panel filter features an innovative, reinforced, double strut construction for durability and performance in commercial, industrial, and residential applications. The design provides 10% greater open media area than traditional metal grill filters and offers excellent dust holding capacity. It is available in 1" and 2" depths in many standard sizes.

• Progressively dense heavy duty media
• Heavy-duty one piece box frame construction
• Thermally bonded

Product Highlights

The Glasfloss GDS20251 filter ensures durability and performance with its double strut construction and increased media area.

Product Information

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: GDS20251
• Country of Origin: USA

Technical Specifications

• Brand: Glasfloss
• MPN: GDS20251
• Composition: Heavy-Duty Fiberglass
• Filter Efficiency: 20%
• Filter Media Type: Fiberglass
• Filter Rating (Microns): 3.0 to 10.0
• Filter Type: Throwaway
• Frame Type: Craftboard
• Height: 25 in
• Length: 1 in
• MERV Rating: 5
• Nominal Filter Height in Inches: 25
• Nominal Filter Size in Inches (W x H x D): 20 x 25 x 1
• Nominal Filter Thickness in Inches: 1
• Nominal Filter Width in Inches: 20
• Prop 65: Yes
• UPC: 604443991903
• Width: 20 in
• Country of Origin: USA
• Actual Size: 19-5/8 x 24-5/8 x 3/4
• Product Type: HVAC_AIR_FILTER
• Manufacturer: Glasfloss Industries
• FPM: 300
• Material: Fiberglass
• Dimensions: 20" x 25" x 1"
• Application: Disposable
• Series: GDS
• Temperature Rating: 180 deg F
• Air Flow: 300 fpm
• Maximum Temperature: 180 deg F
• Particle Size: 3 to 10 micron
• Initial Resistance: 0.09 in WG
• Final Resistance: 1/2 in WG
• Media: Fiberglass
• Overall Dimensions: 24-5/8 in H x 19-5/8 in W x 3/4 in D
• Air Flow Capacity: 300 cfm
• Depth: 1 in
• Green Type: EnergyStar
• Flow: 300 FPM
• Specifications: 3.47 (Media Square Feet)
• Note: 0.09 W.G. (Initial Resistance)
• Case Qty: 1
