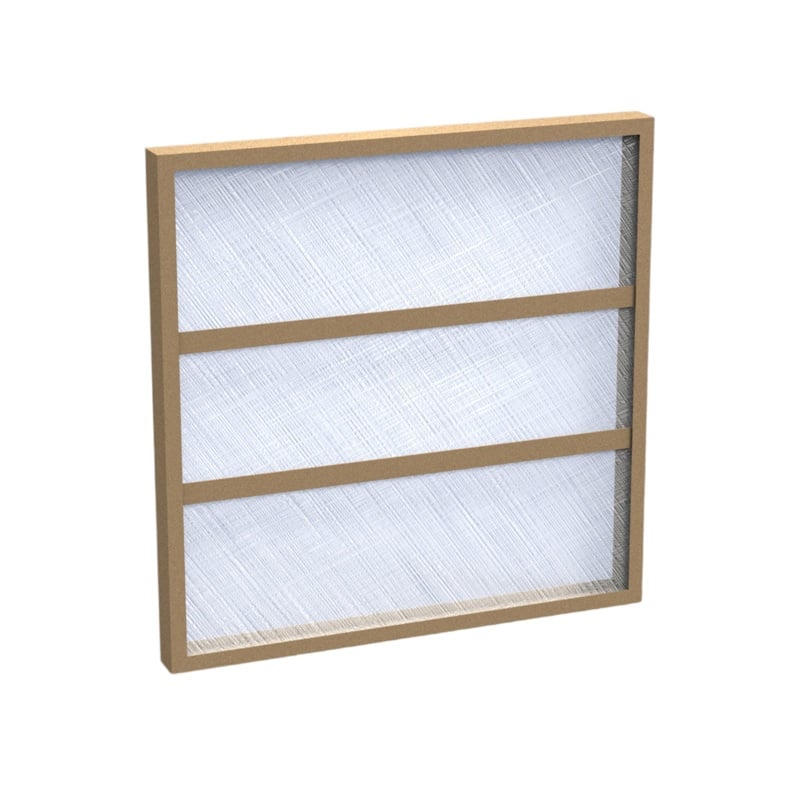

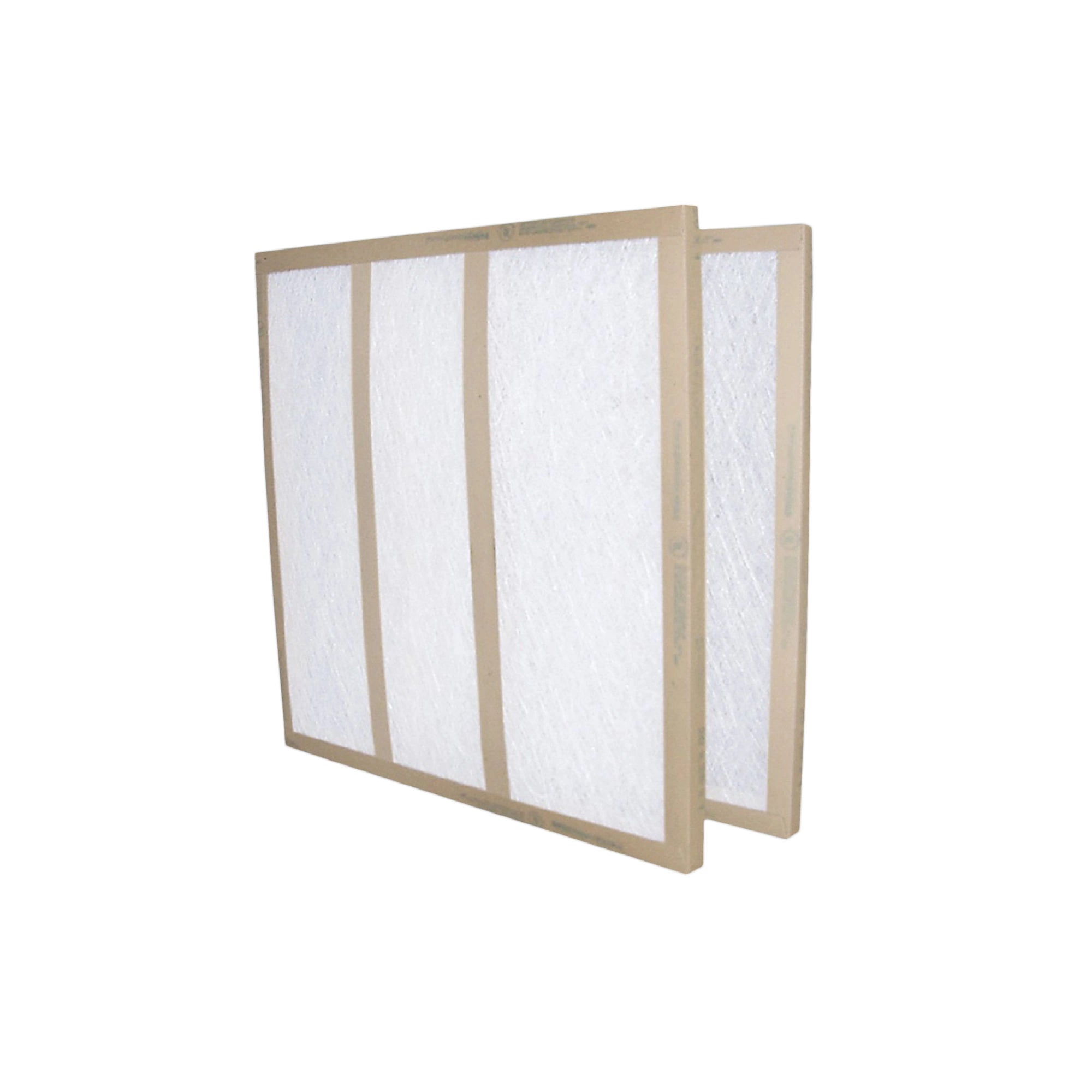

Glasfloss GDS20241 20 inches x 24 inches x 1 inches Fiberglass Double Strut Disposable Filter

Product Description

The Glasfloss GDS20241 disposable panel filter features an innovative, reinforced, double strut construction for durability and performance in commercial, industrial, and residential applications. The design provides 10% greater open media area than traditional metal grill filters and offers excellent dust holding capacity. Available in 1" and 2" depths in many standard sizes.

• Progressively Dense Heavy Duty Media
• Heavy-Duty One Piece Box Frame Construction
• Thermally Bonded

Product Highlights

The Glasfloss GDS20241 filter ensures excellent durability and performance with its double strut construction and enhanced dust holding capacity.

Product Information

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: GDS20241
• Country of Origin: USA

Technical Specifications

• Brand: Glasfloss
• MPN: GDS20241
• Nominal Filter Size in Inches (W x H x D): 20 x 24 x 1
• Width: 20 in
• Height: 24 in
• Length: 1 in
• Filter Efficiency: 20%
• Filter Media Type: Fiberglass
• Filter Rating: 3 to 10 micron
• Filter Type: Disposable
• Frame Type: Craftboard
• MERV Rating: 5
• Nominal Filter Height in Inches: 24
• Nominal Filter Width in Inches: 20
• Nominal Filter Thickness in Inches: 1
• Country of Origin: USA
• Composition: Heavy-Duty Fiberglass
• Application: Commercial, Industrial and Residential
• Depth: 1 in
• Domestic/Import: Domestic
• Final Resistance: 1/2 in WG
• Flow Rate: 300 fpm
• Frame Material: Kraft Board
• Initial Resistance: 0.09 in WG
• Media Material: Fiberglass
• Temperature Rating: 180 deg F
• Series: GDS
• FPM: 300
• Material: Fiberglass
• Rated Velocity: 300 fpm
• Actual Size: 19-5/8 x 23-5/8 x 3/4
