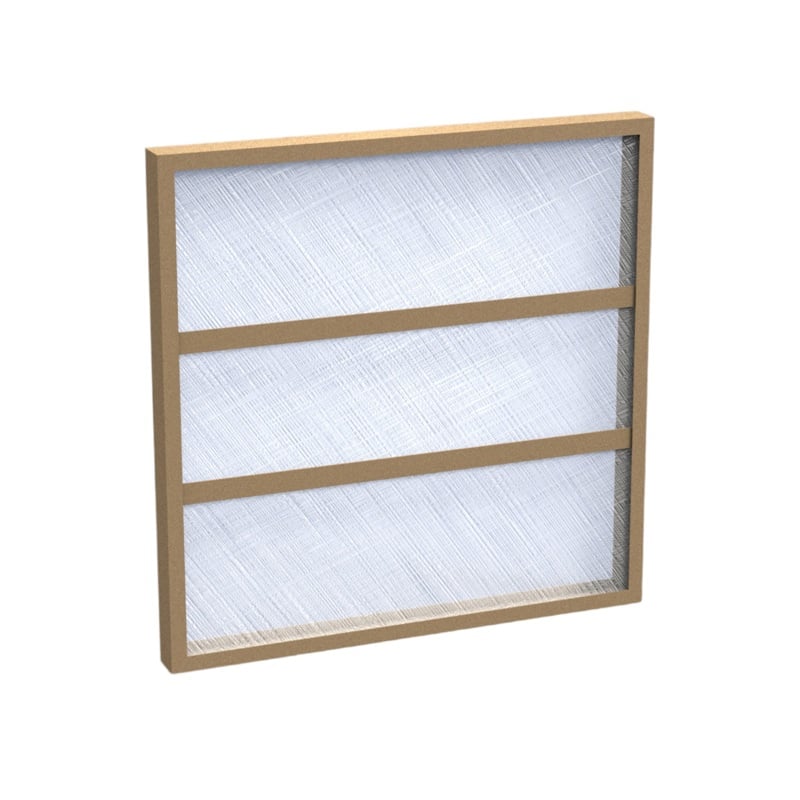

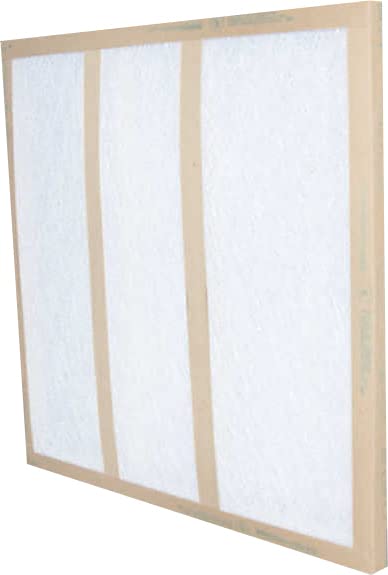

Glasfloss GDS18181 18 inches x 18 inches x 1 inches Fiberglass Double Strut Disposable Filter

Product Description

The Glasfloss GDS18181 disposable panel filter features an innovative, reinforced, double strut construction for durability and performance in commercial, industrial, and residential applications. The design provides 10% greater open media area than traditional metal grill filters and offers excellent dust holding capacity. It is available in 1" depth and is classified under U.L. std. 900.

• Progressively Dense Heavy Duty Media
• Heavy-Duty One Piece Box Frame Construction
• Thermally Bonded

Product Highlights

Features innovative double strut construction, excellent dust holding capacity and easier disposal.

Product Information

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: GDS18181
• Country of Origin: USA

Technical Specifications

• Brand: Glasfloss
• Composition: Heavy-Duty Fiberglass
• Filter Efficiency: 20%
• Filter Media Type: Fiberglass
• Filter Rating (Microns): 3.0 to 10.0
• Filter Type: Throwaway
• Frame Type: Craftboard
• Height: 18 in
• Length: 1 in
• MERV Rating: 5
• Nominal Filter Height in Inches: 18
• Nominal Filter Size in Inches (W x H x D): 18 x 18 x 1
• Nominal Filter Thickness in Inches: 1
• Nominal Filter Width in Inches: 18
• Prop 65: Yes
• Width: 18 in
• Country of Origin: USA
• Application: Disposable
• Depth: 1 in
• Domestic/Import: Domestic
• Final Resistance: 1/2 in WG
• Flow Rate: 300 fpm
• Frame Material: Kraft Board
• Initial Resistance: 0.09 in WG
• Media Material: Fiberglass
• Mfg Standards/Approvals: ANSI/ASHRAE 52.2, Energy Star Qualified, UL 900
• Overall Dimensions: 17-5/8 in H x 17-5/8 in W x 3/4 in D
• Series: GDS
• Temperature Rating: 180 deg F
• Material: Fiberglass
• Dimensions: 18" x 18" x 1"
• Series-Brand: GDS Series
• Actual Size: 17-5/8 x 17-5/8 x 3/4 in
• Rated Velocity: 300 fpm
• Rated Initial Resistance: 0.07 in wg
• Recommended Final Resistance: 0.5 in wg
• Filter Size: 18 x 18 x 1 in
• Filter Material: Fiberglass
• Max Operating Temperature: 180 °F
