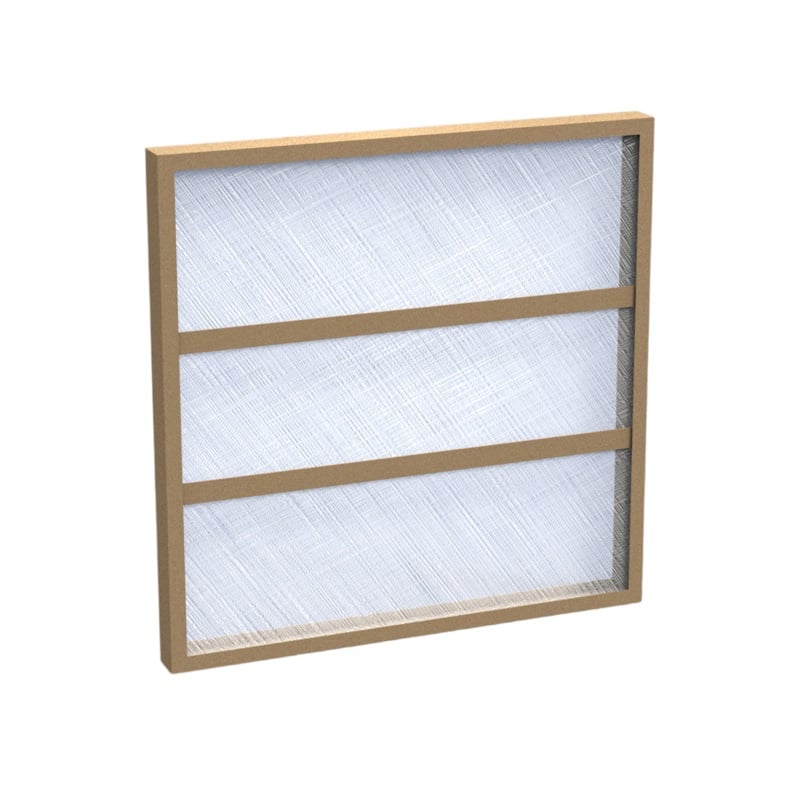

Glasfloss GDS16201 16 inches x 20 inches x 1 inches Fiberglass Double Strut Disposable Filter

Product Description

The Glasfloss GDS16201 disposable panel filter features an innovative, reinforced, double strut construction for durability and performance in commercial, industrial, and residential applications. The design provides 10% greater open media area than traditional metal grill filters and offers excellent dust holding capacity. It is available in 1" and 2" depths in many standard sizes.

• Features innovative, reinforced, double strut construction
• Provides 10% greater open media area than traditional metal grill filters
• Constructed of a heavy-duty, one piece craft-board frame

Product Highlights

The Glasfloss GDS16201 disposable filter is suitable for commercial, industrial, and residential applications. It features a heavy-duty construction and excellent dust holding capacity.

Product Information

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: GDS16201
• Country of Origin: USA

Technical Specifications

• Brand: Glasfloss
• MPN: GDS16201
• Nominal Filter Size in Inches (W x H x D): 16 x 20 x 1
• Width: 16 in
• Height: 20 in
• Length: 1 in
• Filter Media Type: Fiberglass
• Frame Type: Craftboard
• MERV Rating: 5
• Filter Efficiency: 20%
• Filter Rating (Microns): 3.0 to 10.0
• Filter Type: Throwaway
• Composition: Heavy-Duty Fiberglass
• UPC: 604443991934
• Prop 65: Yes
• Nominal Filter Width in Inches: 16
• Nominal Filter Height in Inches: 20
• Nominal Filter Thickness in Inches: 1
• Country of Origin: USA
• Application: Disposable
• Depth: 1 in
• Domestic/Import: Domestic
• Final Resistance: 1/2 in WG
• Flow Rate: 300 fpm
• Frame Material: Kraft Board
• Initial Resistance: 0.09 in WG
• Media Material: Fiberglass
• MERV: 1 to 5
• Mfg Standards/Approvals: ANSI/ASHRAE 52.2|EnergyStar Qualified|UL 900
• Overall Dimensions: 19-5/8 in H x 15-5/8 in W x 3/4 in D
• Series: GDS
• Temperature Rating: 180 deg F
• FPM: 300
• Type: Panel Air Filter
• Material: Fiberglass
• Dimensions: 16" x 20" x 1"
• Efficiency: <20%
• Micron: 3 to 10
• Media Area: 2.22 sq-ft
• Rated Velocity: 300 fpm
• Actual Size: 15-5/8 in W x 19-5/8 in H x 3/4 in D
