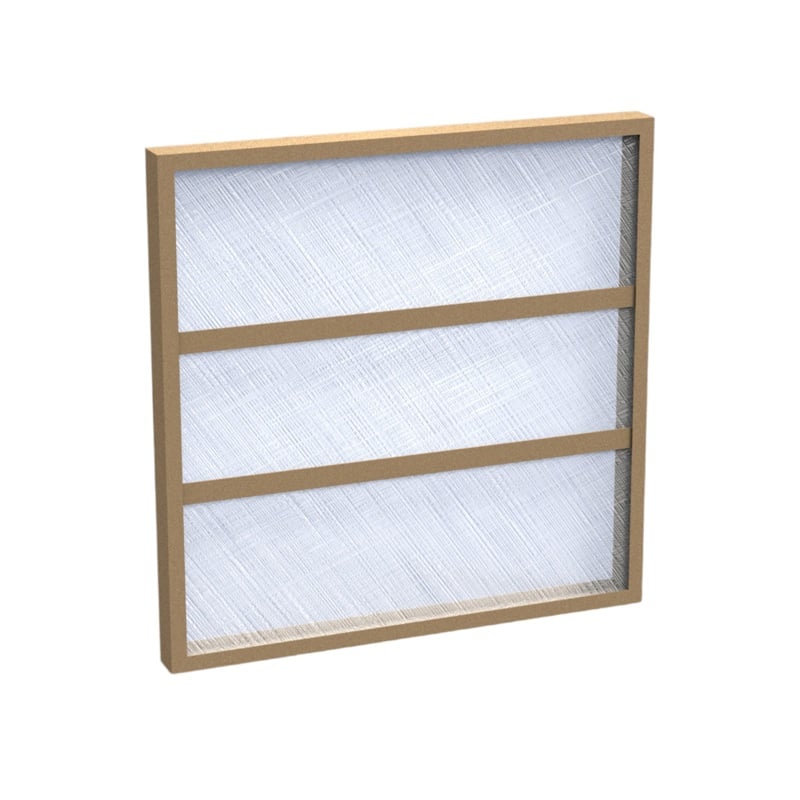

Glasfloss GDS14301 14 inches x 30 inches x 1 inches Fiberglass Double Strut Disposable Filter

Product Description

The Glasfloss GDS disposable panel filter features an innovative, reinforced, “double strut” construction for durability and performance in commercial, industrial, and residential applications. The design provides 10% greater open media area than traditional metal grill filters and offers excellent dust holding capacity. This disposable filter is available in 1" depth and features a heavy-duty, one piece craft-board frame.

• Progressively Dense Heavy Duty Media
• Heavy-Duty One Piece Box Frame Construction
• Thermally Bonded

Product Highlights

The Glasfloss GDS filter offers easier disposal, eliminates sharp edges for safer handling and reduces carton weight for lower shipping costs.

Product Information

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: GDS14301
• Country of Origin: USA

Technical Specifications

• Brand: Glasfloss
• MPN: GDS14301
• Nominal Filter Size in Inches (W x H x D): 14 x 30 x 1
• Width: 14 in
• Height: 30 in
• Length: 1 in
• Frame Material: Craftboard
• Filter Type: Disposable
• Filter Media Type: Fiberglass
• MERV Rating: 5
• Filter Efficiency: 20%
• Filter Rating (Microns): 3.0 to 10.0
• Temperature Rating: 180 deg F
• Application: Commercial, Industrial and Residential
• Series: GDS
• Initial Resistance: 0.09 in WG
• Media Material: Fiberglass
• Domestic/Import: Domestic
• Rated Velocity: 300 fpm
• Media Area: 2.91 sq-ft
• Flow Rate: 300 fpm
• Final Resistance: 1/2 in WG
• Country of Origin: USA
• Nominal Filter Height in Inches: 30
• Nominal Filter Width in Inches: 14
• Nominal Filter Thickness in Inches: 1
• Composition: Heavy-Duty Fiberglass
• Overall Dimensions: 29-5/8 in H x 13-5/8 in W x 3/4 in D
• Actual Size: 29-5/8 in H x 13-5/8 in W x 3/4 in D
