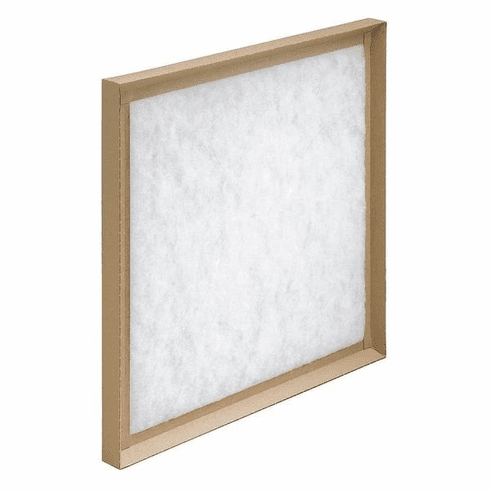

Glasfloss GDS14141 14 inches x 14 inches x 1 inches Fiberglass Double Strut Disposable Filter

Product Description

The Glasfloss GDS14141 disposable panel filter features an innovative, reinforced, “double strut” construction for durability and performance in commercial, industrial, and residential applications. The design provides 10% greater open media area than traditional metal grill filters and offers excellent dust holding capacity. It is available in 1" and 2" depths in many standard sizes.

• Progressively Dense Heavy Duty Media
• Heavy-Duty One Piece Box Frame Construction
• Thermally Bonded

Product Highlights

The GDS series disposable panel filter features double strut construction, excellent dust holding capacity, and easier disposal for commercial, industrial, and residential applications.

Product Information

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: GDS14141
• Country of Origin: USA

Technical Specifications

• Brand: Glasfloss
• Composition: Heavy-Duty Fiberglass
• Filter Efficiency: 20%
• Filter Media Type: Fiberglass
• Filter Rating (Microns): 3.0 to 10.0
• Filter Type: Throwaway
• Frame Type: Craftboard
• Height: 14 in
• Length: 1 in
• MERV Rating: 5
• Nominal Filter Height in Inches: 14
• Nominal Filter Size in Inches (W x H x D): 14 x 14 x 1
• Nominal Filter Thickness in Inches: 1
• Nominal Filter Width in Inches: 14
• Prop 65: Yes
• Width: 14 in
• Country of Origin: USA
• Application: Commercial, Industrial and Residential
• Depth: 1 in
• Domestic/Import: Domestic
• Final Resistance: 1/2 in WG
• Flow Rate: 300 fpm
• Frame Material: Kraft Board
• Initial Resistance: 0.09 in WG
• Media Material: Fiberglass
• Temperature Rating: 180 deg F
• Series: GDS
• Overall Dimensions: 13-5/8 in H x 13-5/8 in W x 3/4 in D
• Mfg Standards/Approvals: ANSI/ASHRAE 52.2|EnergyStar Qualified|UL 900
• Media Square Feet: 2.25
• Rated Velocity FPM: 300
• Size W x H x D Exact: 13 5/8" x 13 5/8" x 3/4"
• Size W x H x D Nominal: 14" x 14" x 1"
• MPN: GDS14141
• Actual Size: 13 5/8 x 13 5/8 x 3/4
• Material: Fiberglass
• Flow: 300 FPM
• Initial Resist in W G: 1.36
