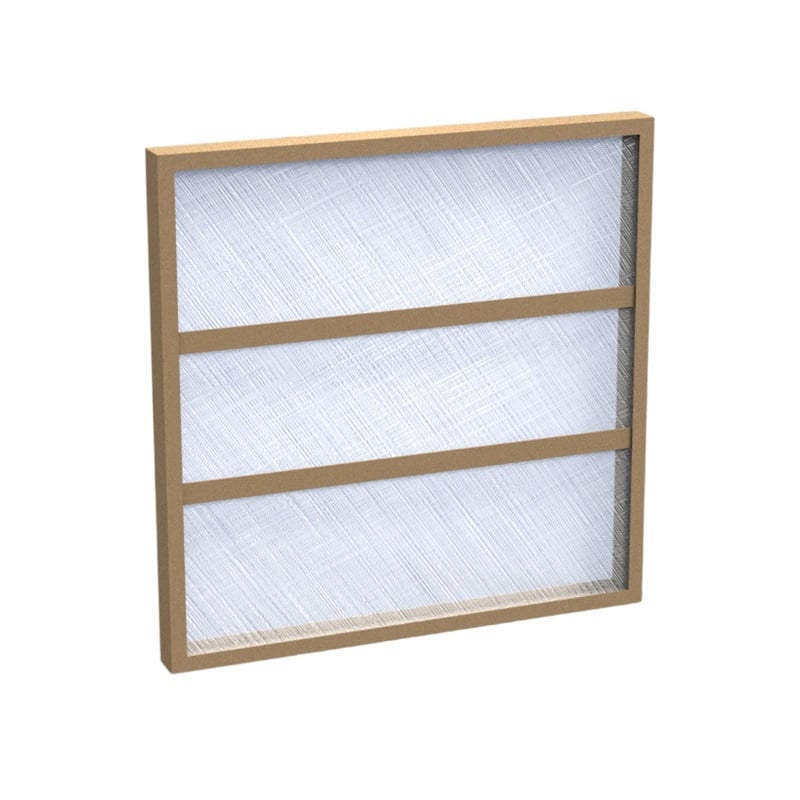

Glasfloss GDS12201 12 inches x 20 inches x 1 inches Fiberglass Double Strut Disposable Filter

Product Description

The Glasfloss GDS12201 disposable panel filter features an innovative, reinforced, double strut construction for durability and performance in commercial, industrial, and residential applications. The design provides greater open media area than traditional metal grill filters and offers excellent dust holding capacity. Available in 1" depth in many standard sizes.

• Progressively Dense Heavy Duty Media
• Heavy-Duty One Piece Box Frame Construction
• Thermally Bonded

Product Highlights

This disposable panel filter features double strut construction, excellent dust holding capacity, and easier disposal.

Product Information

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: GDS12201
• Country of Origin: USA

Technical Specifications

• Brand: Glasfloss
• Composition: Heavy-Duty Fiberglass
• Filter Efficiency: 20%
• Filter Media Type: Fiberglass
• Filter Rating (Microns): 3.0 to 10.0
• Filter Type: Throwaway
• Frame Type: Craftboard
• Height: 20 in
• Length: 12 in
• MERV Rating: 5
• Nominal Filter Height in Inches: 20
• Nominal Filter Size in Inches (W x H x D): 12 x 20 x 1
• Nominal Filter Thickness in Inches: 1
• Nominal Filter Width in Inches: 12
• Width: 12 in
• Country of Origin: USA
• Model / MPN: GDS12201
• Product Type: HVAC_AIR_FILTER
• Manufacturer: Glasfloss
• Application: Commercial, Industrial and Residential
• Depth: 1 in
• Domestic/Import: Domestic
• Filter Rating: 3 to 10 micron
• Final Resistance: 1/2 in WG
• Flow Rate: 300 fpm
• Frame Material: Kraft Board
• Initial Resistance: 0.09 in WG
• Media Material: Fiberglass
• Mfg Standards/Approvals: ANSI/ASHRAE 52.2, Energy Star Qualified, UL 900
• Series: GDS
• Temperature Rating: 180 deg F
• FPM: 300
• Material: Fiberglass
• Configuration: Non-Pleated
• Green Type: EnergyStar
• Actual Size: 19-5/8 in H x 11-5/8 in W x 3/4 in D
• Media Area: 1.66 sq-ft
• Rated Velocity: 300 fpm
• Merv Rating: MERV4
• Model: Flat Panel HD
• Retainer: Double Metal Retainer
• Size: 12X20X1
• Exact Size: 11-5/8 x 19-5/8 x 3/4
