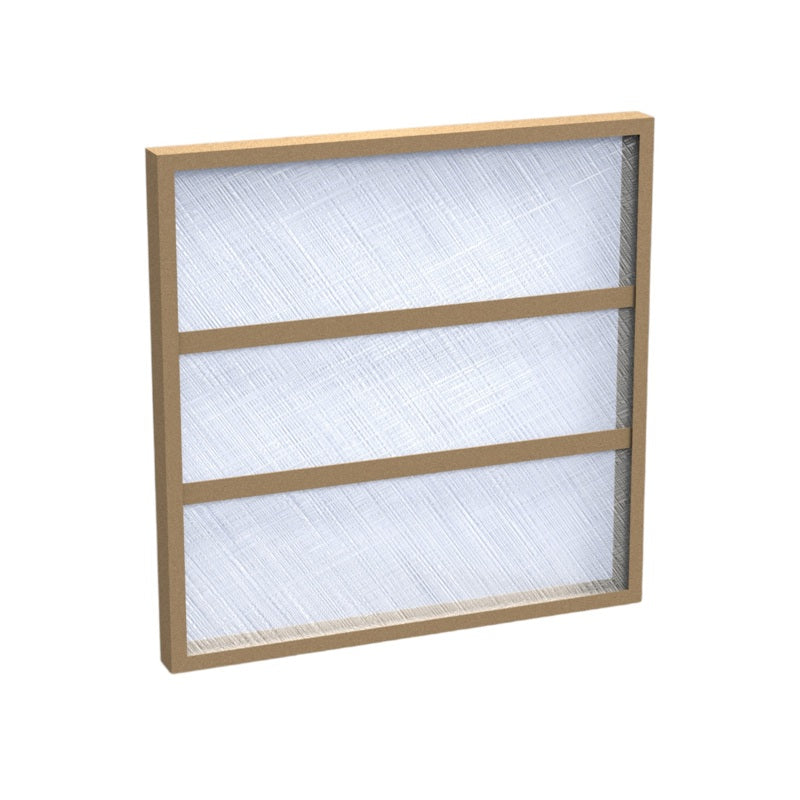

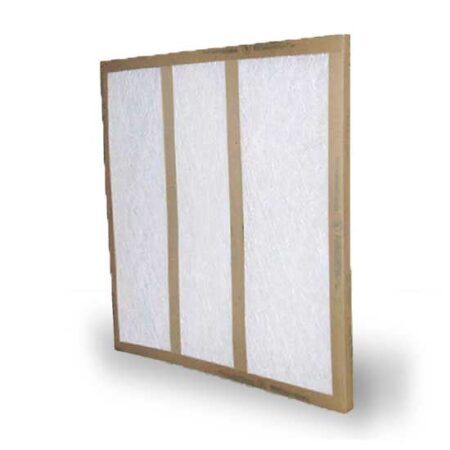

Glasfloss GDS10241 10 inches x 24 inches x 1 inches Fiberglass Double Strut Disposable Filter

Product Description

The Glasfloss GDS10241 disposable panel filter features an innovative, reinforced, double strut construction for durability and performance in commercial, industrial, and residential applications. The design provides 10% greater open media area than traditional metal grill filters and offers excellent dust holding capacity. It is available in 1" and 2" depths.

• Progressively dense heavy duty media
• Heavy-duty one piece box frame construction
• Thermally bonded

Product Highlights

The Glasfloss GDS10241 filter ensures durability and performance with its double strut construction and increased media area.

Product Information

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: GDS10241
• Country of Origin: USA

Technical Specifications

• Brand: Glasfloss
• Composition: Heavy-Duty Fiberglass
• Filter Efficiency: 20%
• Filter Media Type: Fiberglass
• Filter Rating (Microns): 3.0 to 10.0
• Filter Type: Throwaway
• Frame Type: Craftboard
• Height: 24 in
• Length: 1 in
• MERV Rating: 5
• Nominal Filter Height in Inches: 24
• Nominal Filter Size in Inches (W x H x D): 10 x 24 x 1
• Nominal Filter Thickness in Inches: 1
• Nominal Filter Width in Inches: 10
• Prop 65: Yes
• UPC: 604443991859
• Width: 10 in
• Country of Origin: USA
• Application: Commercial, Industrial and Residential
• Depth: 1 in
• Domestic/Import: Domestic
• Final Resistance: 1/2 in WG
• Flow Rate: 300 fpm
• Frame Material: Kraft Board
• Initial Resistance: 0.09 in WG
• Media Material: Fiberglass
• MERV: 1 to 5
• Mfg Standards/Approvals: ANSI/ASHRAE 52.2, Energy Star Qualified, UL 900
• Overall Dimensions: 23-5/8 in H x 9-5/8 in W x 3/4 in D
• Series: GDS
• Temperature Rating: 180 deg F
• FPM: 300
• Material: Fiberglass
• Dimensions: 10" x 24" x 1"
• Type: Panel Air Filter
• Actual Size: 9-5/8 in W x 19-5/8 in H x 3/4 in D
• Nominal Width: 10 Inch
• Nominal Height: 24 Inch
• Nominal Depth: 1 Inch
• Resistance: 0.09 Inch WC (Initial), 0.5 Inch WC (Final)
• Frame Detail: Heavy Duty 1-Piece Craft-Board
• Applicable Standard: UL 900, HardI, NAFA
• Media Area: 1.66 Square Foot
• Size: 10 x 24 x 1 In
