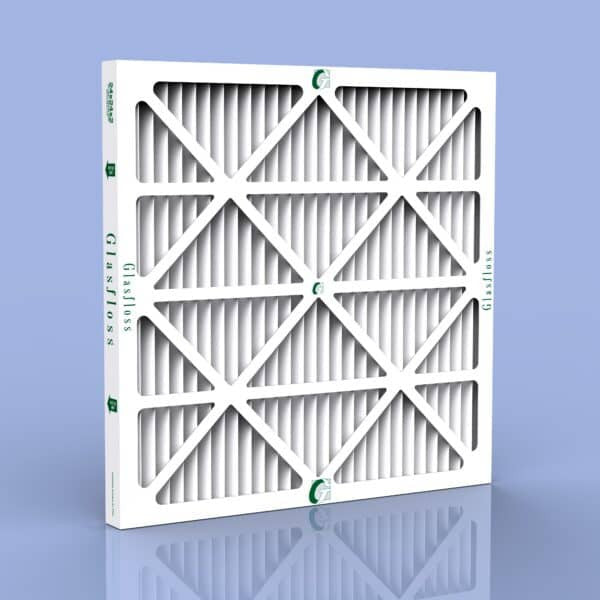

Glasfloss 20X30X2 Z-Line HVXM 15 pleated air filter MERV 10

Product Description

The Glasfloss 20X30X2 Z-Line HVXM Extended Surface Pleated Air Filter is designed for high velocity applications, offering MERV 10 efficiency. This synthetic filter features 15 pleats per lineal foot and a media area of 18.24 square feet, ensuring effective air filtration. It maintains an initial resistance of 0.27 inches W.G. at a rated airflow velocity of 500 FPM.

• Designed for Higher Air Volume Systems
• Higher Breach Strength
• Heavy-Duty Moisture Resistant Construction

Product Highlights

This Glasfloss Z-Line HVXM filter provides MERV 10 filtration for high velocity systems, featuring robust construction and resistance to moisture and microbial growth.

Product Information

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: 20X30X2

Technical Specifications

• Brand: Glasfloss Industries
• Manufacturer Part Number: 20X30X2
• Model Number: HVP20302XM
• Series: Z-Line HVXM
• Nominal Dimensions (W x H x D): 20 x 30 x 2 inches
• Actual Dimensions (W x H x D): 19-5/8 x 29-5/8 x 1-3/4 inches
• MERV Rating: 10 (50-55%)
• Filter Material: Synthetic
• Rated Airflow Velocity: 500 FPM
• Maximum Operating Temperature: 180 °F
• Recommended Application: High Velocity Systems
• Pleats Per Lineal Foot: 15
• Media Surface Area: 18.24 sq ft
• Initial Pressure Drop: 0.27 W.G.
