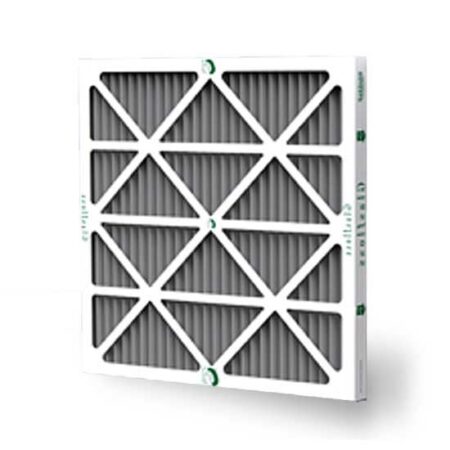

Glasfloss 10X20X2 M1310202 Z-Line MR-13 15 Pleated Air Filter MERV 13

Product Description

The Glasfloss 10X20X2 (M1310202) Z-Line MR-13 Extended Surface Pleated Air Filter is designed for commercial and industrial HVAC applications. This MERV 13 filter, measuring 10 inches by 20 inches by 2 inches, offers 80-85% efficiency. It features 15 pleats per lineal foot and a media area of 6.24 square feet, with an initial resistance of 0.38 inches W.G. at 500 FPM rated velocity. It can withstand temperatures up to 180°F.

• Electrostatically-Charged 100% Synthetic Media for enhanced filtration.
• Heavy-Duty Moisture-Resistant Construction ensures durability.
• MERV 13 rating provides 80-85% efficiency for improved air quality.

Product Highlights

Optimized for LEED compliance in new and existing buildings.

Product Information

Standard Information

• Brand: GLASFLOSS
• Manufacturer Part Number: 10X20X2

Technical Specifications

• Brand: Glasfloss
• Manufacturer Part Number: M1310202
• Series: Z-Line MR-13
• Nominal Dimensions (W x H x D): 10 x 20 x 2 inches
• Actual Dimensions (W x H x D): 9.5 x 19.5 x 1.75 inches
• MERV Rating: 13 (80-85% Efficiency)
• Filter Media Material: Synthetic
• Rated Airflow: 500 FPM
• Maximum Operating Temperature: 180 °F
• Application: Commercial, Industrial
• Pleats Per Lineal Foot: 15
• Media Area: 6.24 sq ft
• Initial Resistance: 0.38 inches W.G.
