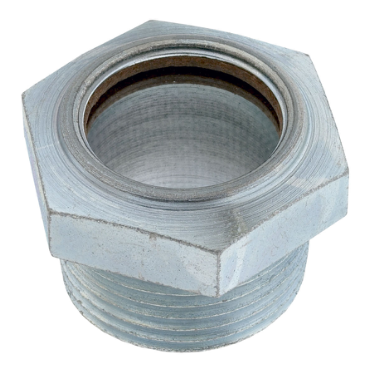

Gits Manufacturing Co. 04043 BW-10 Liquid Level Gauge 25 psi

Product Description

The Gits Manufacturing Co. 04043 BW-10 Liquid Level Gauge is a reliable choice for monitoring liquid levels in various settings. It features a clear window for easy visibility and an open back design for straightforward installation. This gauge is made from steel and zinc-plated for durability and resistance to corrosion. It is designed for insertion in tapped els, tees, or other NPT fittings. The maximum temperature for this gauge is two hundred fifty degrees Fahrenheit.

• Clear window for easy visibility
• Open back design for simple installation
• Durable steel, zinc-plated construction

Product Highlights

This liquid level gauge is perfect for industrial applications where accurate liquid level measurement is crucial. It is not suitable for air service, making it specifically designed for liquids.

Product Information

Standard Information

• Brand: Gits Manufacturing Co.
• Part Number: 101981756

Technical Specifications

• Window Diameter: 1 inch
• Pressure [Max]: 25 psi
• Thread Type: NPT
• Body Length: 1/2 inch
• Material: Steel, Zinc-Plated
• Thread Size: 1
• Threads per Inch: 11 1/2
• Thread Lead: 11/16 inch
• Assembly Clearance: 1 13/16 inches
• Weight: 0.196 lb
