Gibson Stainless 7075T GIBSON 3/4 SS T CONDUIT BODY

Product Description

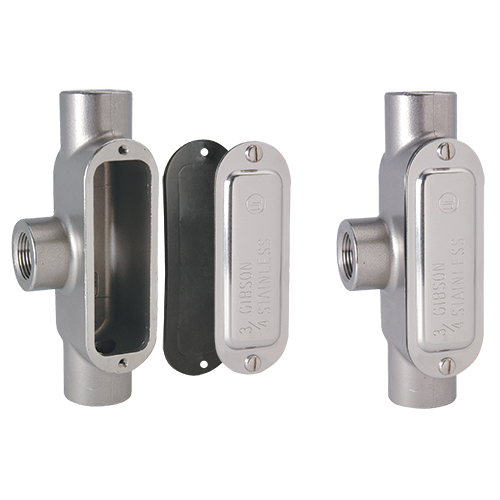

The Gibson Stainless 7075T is a Type T conduit body designed for use with electrical conduit systems. This product features a three-quarter inch hub and is made of polished stainless steel. The dimensions are six point six one inches in length, two point five inches in width, and two inches in height.

• Neoprene gasket included.
• Polished finish that does not require touch up or painting.
• Designed for making ninety-degree bends and changing conduit routes.

Product Highlights

Use this conduit body for wire pulls and connections in wet location applications. The flat back design provides increased wiring capacity. It is available in multiple configurations including C, LB, LL, LR, T, TB, and X.

Product Information

Standard Information

• Manufacturer: Gibson Stainless & Specialty Inc
• UPC: 81319202187

Technical Specifications

• Application: Wet Location Applications
• Dimensions: 6.61 in L x 2.5 in W x 2 in H
• Finish: Polished
• Hub Size: 3/4 in
• Manufacturer Part Number: 7075T
• Material: Stainless Steel
• Standards/Approvals: UL QCIT E300676
• Type: Type T
