Gibraltar Z9484SET Spherical Washer Assembly 1-1/4 Inch Bolt

Product Description

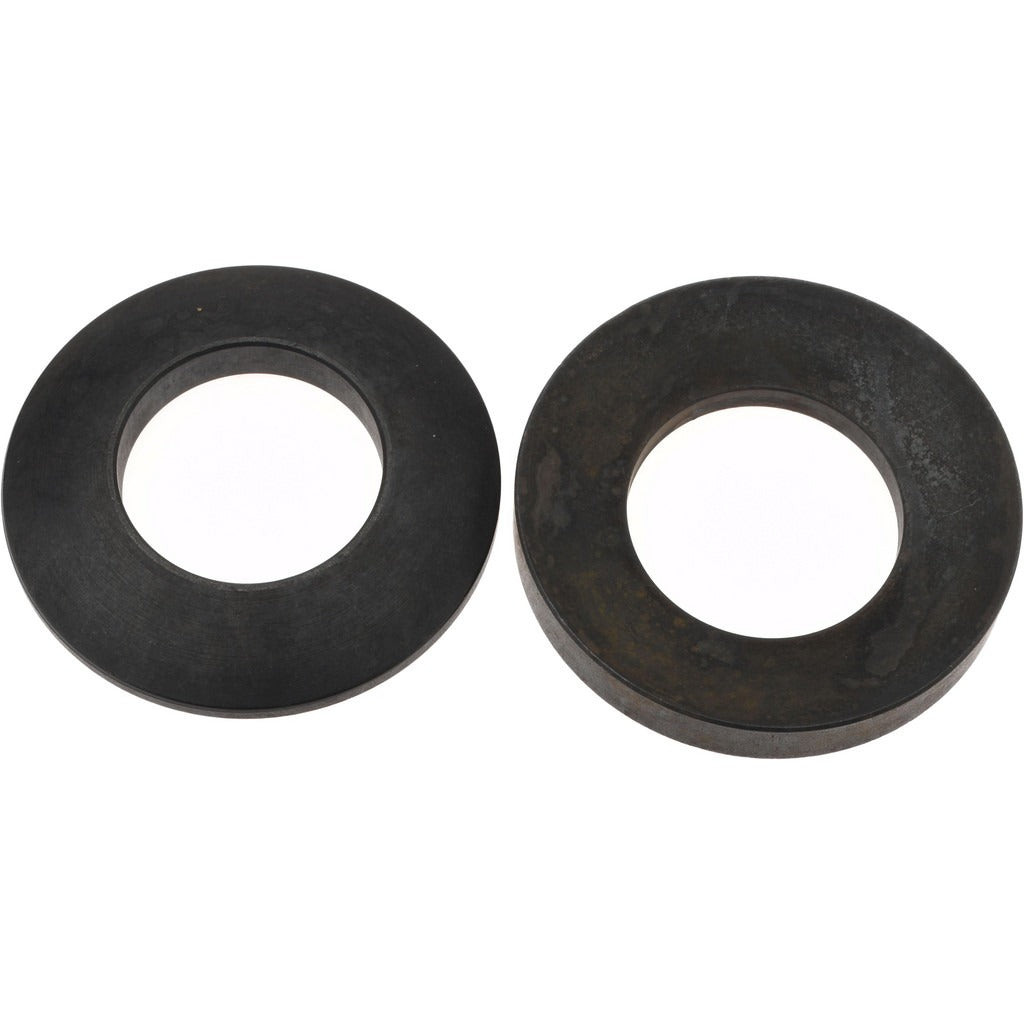

The GIBRALTAR Z9484SET is a spherical washer assembly designed for use with 1-1/4 inch bolts. It consists of a matched male and female washer pair that self-aligns under load, compensating for angular misalignment between a bolt and its mating surface. The female washer has a 1-3/8 inch inside diameter and 2-1/2 inch outside diameter. The male washer has a 1-5/16 inch inside diameter and 2-1/2 inch outside diameter. Both pieces are 1/2 inch thick with a 3 inch radius spherical seat. Manufactured from 12L14 grade case hardened steel with a black oxide finish for corrosion resistance. Maintenance technicians, millwrights, and industrial mechanics install these in structural bolted connections where surfaces are not perfectly perpendicular.

Spherical washer assemblies are used in structural, mechanical, and industrial fastening applications where bolt misalignment is a concern. Common install scenarios include equipment bases, structural steel connections, conveyor frames, and machinery mounting points. The self-seating spherical geometry distributes clamp load evenly across the bearing surface even when the bolt axis is not perfectly square to the joint face. This assembly ships as a matched set of one male and one female washer.

Key Features

• Matched male and female washer pair for self-aligning bolt connections
• 3 inch spherical radius provides angular compensation under load
• 12L14 grade case hardened steel for high surface hardness and durability
• Black oxide finish for moderate corrosion resistance and reduced light reflection
• 1/2 inch thickness on both male and female components
• Fits 1-1/4 inch fasteners with 1-5/16 inch male bore and 1-3/8 inch female bore

Compatibility

Designed for use with 1-1/4 inch diameter bolts in structural and industrial bolted connections requiring angular load compensation between non-parallel mating surfaces.

Installation Notes

Install by placing the female washer against the fixed surface with the concave face up, then seating the male washer convex-side down into the female. A licensed millwright or qualified maintenance mechanic should perform installation in structural or load-bearing applications. Torque the fastener in accordance with applicable structural or mechanical design specifications for the joint. Ensure both washer components are clean and free of debris before assembly to allow proper spherical seating.
