Gibraltar XSL-402 X-style Side Lock 1/4-20 Thread

Product Description

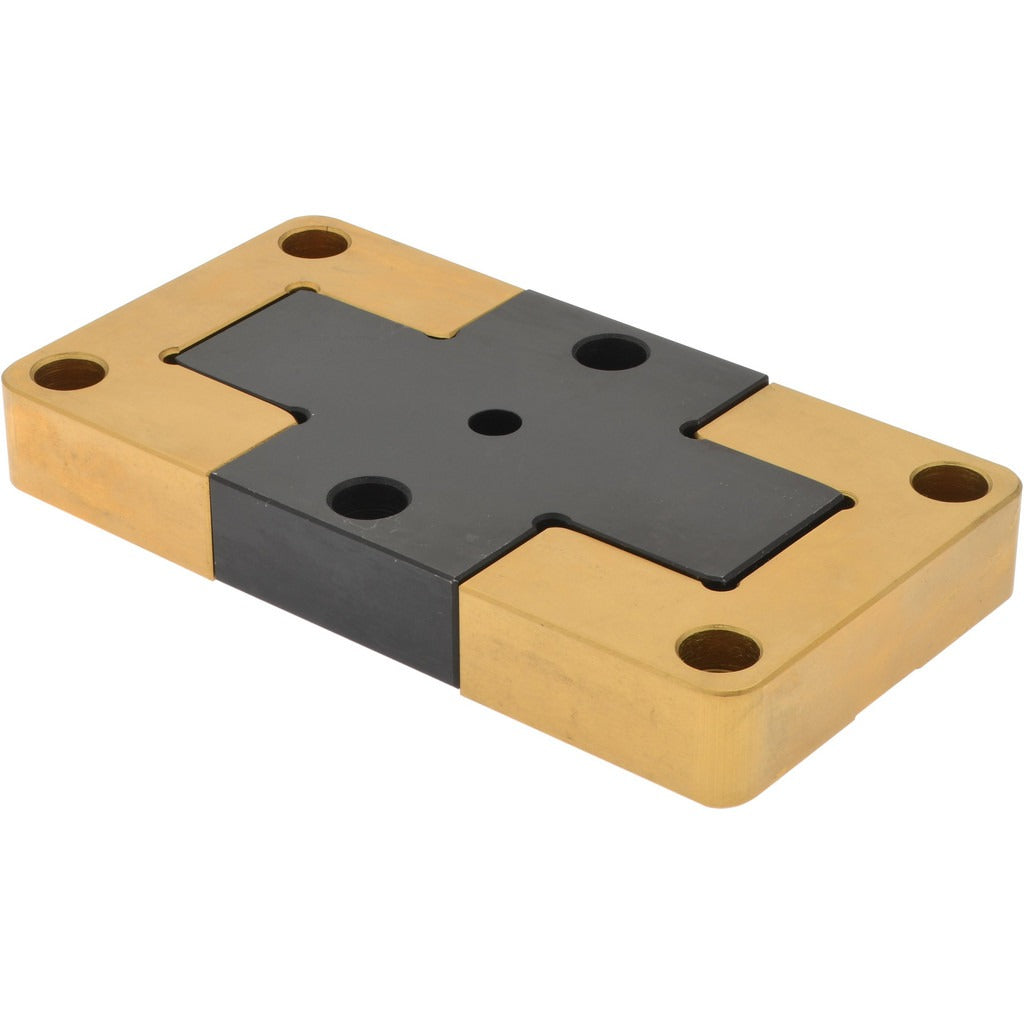

The GIBRALTAR XSL-402 is an X-Style Side Lock designed for use in mold blank and punch die set assemblies. This hardware component provides secure lateral locking action within the mold structure, maintaining precise alignment and position during die cast and injection molding operations. The XSL-402 features a 1/4-20 thread size and compact dimensions of 5.63 inches in length, 3 inches in width, and 0.75 inches in height. Weighing 0.5 pounds, it is a solid, purpose-built component installed by toolmakers, moldmakers, and die cast technicians working on precision tooling assemblies.

The XSL-402 is suited for installation in die cast mold and injection mold applications where a reliable side locking mechanism is required. Its X-style configuration is commonly used in mold base assemblies to lock slides, cores, or side-action components securely in place during the molding cycle. This part is sold individually and is a direct replacement or supplemental hardware component for existing mold sets requiring this locking style.

Key Features

• X-Style Side Lock design provides secure lateral retention in mold assemblies
• 1/4-20 thread size for standard fastener compatibility
• Compact form factor: 5.63 inches long, 3 inches wide, 0.75 inches tall
• Lightweight at 0.5 pounds for easy handling during tooling installation
• Compatible with both die cast mold and injection mold applications
• Sold as a single unit for targeted replacement or repair

Compatibility

Designed for use with die cast mold and injection mold assemblies requiring an X-Style Side Lock with 1/4-20 thread hardware.

Installation Notes

Installation is typically performed by qualified toolmakers or moldmakers during mold assembly or maintenance. Ensure the mold is fully de-energized, depressurized, and cooled before servicing any internal hardware components. Use appropriately sized hand tools to seat the lock without over-torquing the 1/4-20 threaded connection. Follow the mold manufacturer's assembly documentation for proper positioning and seating of side lock components.
