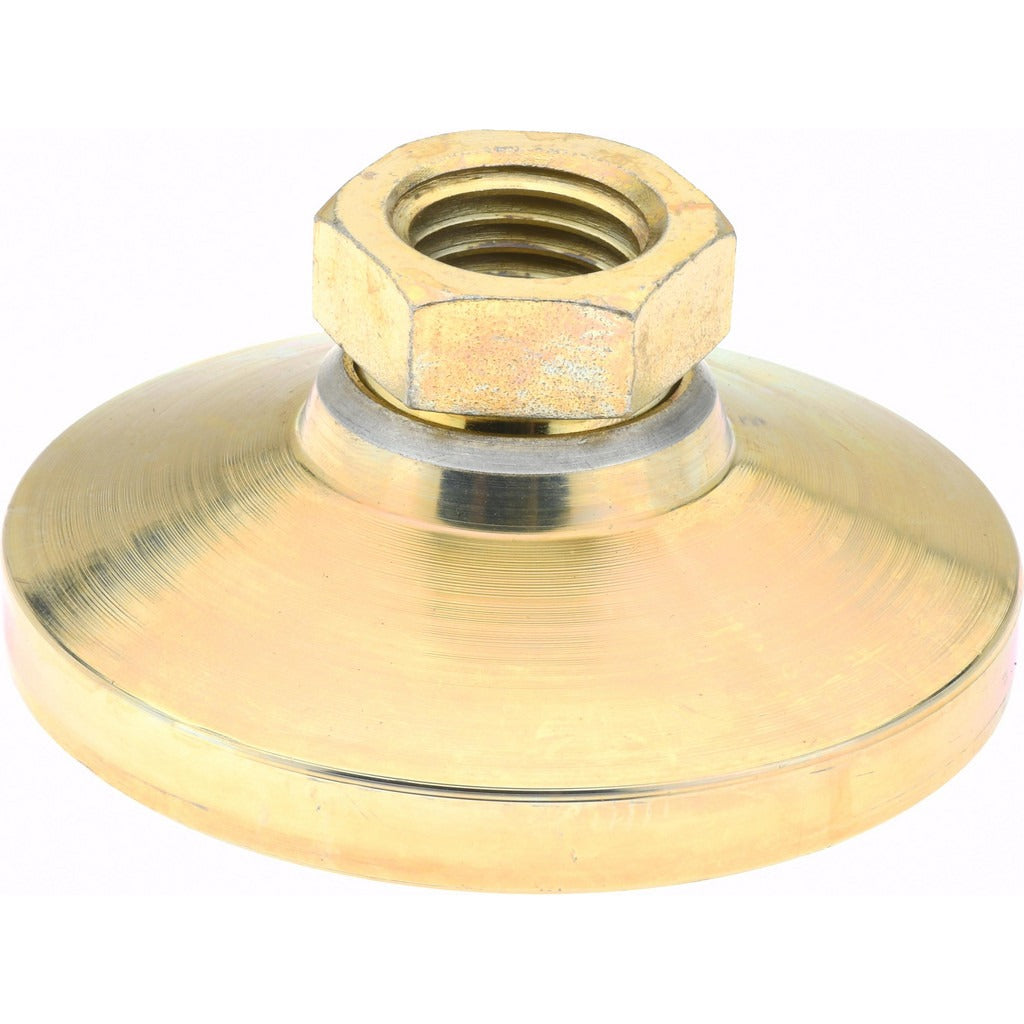

Gibraltar TSW-5Z-G Tapped Pivotal Leveling Mount 1-8 Thread

Product Description

The GIBRALTAR TSW-5Z-G is a tapped pivotal leveling mount designed for heavy industrial and commercial equipment positioning applications. Built with a zinc stud and zinc pad, this mount provides a stable, adjustable base for machinery and equipment that requires precise leveling under significant load. With a rated load capacity of 20,000 pounds and a 4-inch base diameter, the TSW-5Z-G is suited for demanding static load applications where floor contact stability and level adjustment are critical. The pivotal pad design allows the base to self-adjust to minor floor irregularities, maintaining consistent contact and load distribution. Millwrights, maintenance technicians, and industrial installers typically specify this mount for production equipment, machine tools, and heavy fabrication systems.

This leveling mount is appropriate for industrial and commercial settings where heavy machinery must be secured and leveled on concrete or finished floors. The 1-8 thread size accommodates standard heavy-duty mounting configurations. It is sold individually and is a direct fit for equipment requiring a 4-inch diameter pad footprint with a tapped pivotal mount style. Applications include machine tools, compressors, generators, fabrication equipment, and similar stationary industrial machinery requiring load-rated leveling support.

Key Features

• 20,000 lb rated load capacity for heavy-duty industrial equipment support
• Pivotal pad design self-adjusts to minor floor surface irregularities
• 4-inch base diameter provides a broad, stable floor contact footprint
• Zinc stud and zinc pad construction for corrosion-resistant performance
• 1-8 thread size compatible with standard heavy-duty tapped mount configurations
• 1-3/8 inch hex size for wrench-driven height adjustment

Compatibility

Designed as an OEM-style replacement or upgrade leveling mount for industrial machinery and commercial equipment requiring a tapped pivotal style mount with a 1-8 thread, 4-inch base diameter, and 20,000 lb load rating.

Installation Notes

Installation is typically performed by millwrights or maintenance technicians using a standard wrench sized for the 1-3/8 inch hex. Power down and de-energize all connected equipment before beginning leveling mount replacement or adjustment. Ensure the floor surface is clean and capable of supporting the rated static load before positioning the mount. Consult applicable local building and equipment codes for anchor and load requirements before final installation.
