Gibraltar TSW-5M-G Tapped Leveling Mount 1-8 Thread 1180 Lb

Product Description

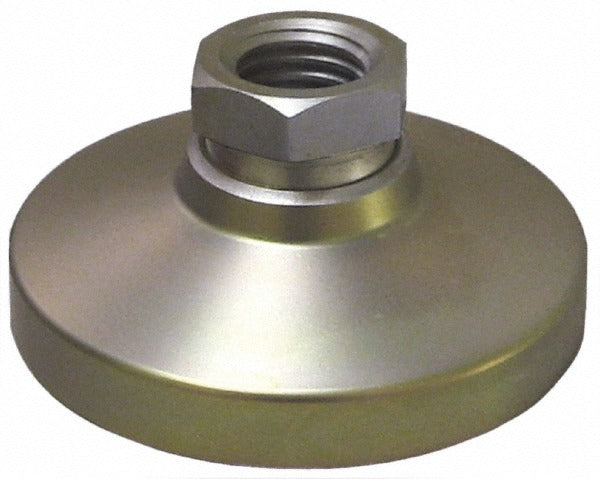

The GIBRALTAR TSW-5M-G is a tapped leveling mount designed for industrial and commercial equipment positioning applications. It features a 1-8 thread configuration and supports a load capacity of 1,180 pounds, making it suited for heavy-duty leveling tasks. The stud and pad are both constructed from zinc, providing corrosion resistance and durability under sustained load. The base measures 4 inches in diameter, and the overall length is 2.5 inches. This mount is installed by millwrights, maintenance technicians, and facilities personnel working on machine bases, equipment frames, and floor-mounted assemblies.

The TSW-5M-G is used in industrial, commercial, and institutional settings where precision leveling of heavy equipment is required. Typical applications include machinery bases, workbenches, assembly fixtures, and equipment stands. The 4-inch base diameter provides a stable footprint on concrete or finished floor surfaces. The tapped mount style allows the stud to thread directly into a tapped hole in the equipment base, eliminating the need for a separate nut and providing a clean, low-profile mounting solution.

Key Features

• 1,180 lb load capacity for heavy-duty equipment support
• 1-8 thread size for compatibility with standard tapped mounting holes
• 4-inch base diameter for broad floor contact and stability
• Zinc stud and zinc pad construction for corrosion resistance
• 1-3/8 inch hex size for wrench-driven height adjustment
• Overall length of 2.5 inches for a compact, low-profile install

Compatibility

Designed as an OEM-style tapped leveling mount for industrial machinery, equipment bases, and floor-mounted assemblies requiring a 1-8 threaded stud configuration.

Installation Notes

Installation is performed by qualified maintenance or mechanical personnel. Power down and lock out all equipment before adjusting or replacing leveling mounts on active machinery. Use a wrench on the 1-3/8 inch hex to make height adjustments after the stud is threaded into the equipment base. Ensure the floor surface is clean and capable of supporting the rated load before finalizing leveling.
