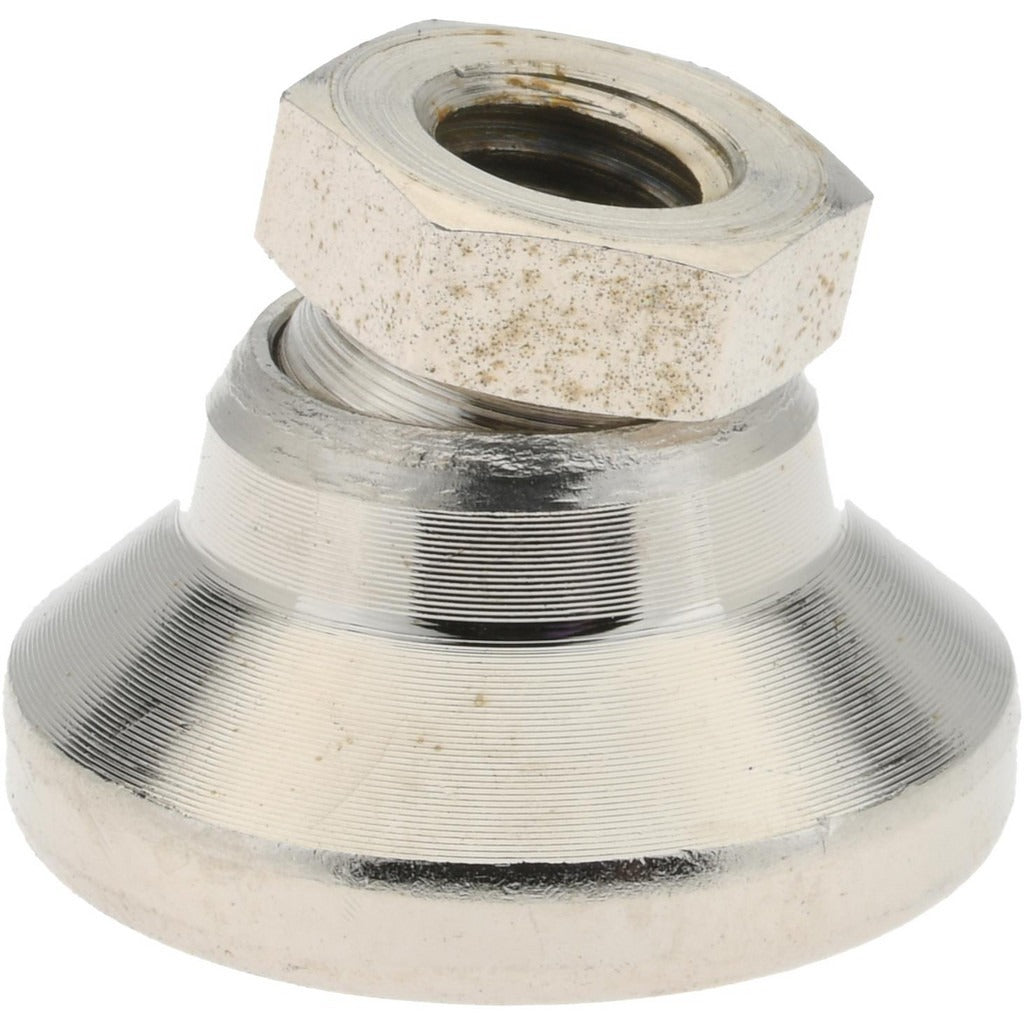

Gibraltar TSW-1N-G Tapped Pivotal Leveling Mount 3750 Lb

Product Description

The GIBRALTAR TSW-1N-G is a tapped pivotal leveling mount designed to support and level heavy equipment, machinery bases, and structural frames. It accepts a 3/8-16 threaded stud and is rated for a static load capacity of 3,750 pounds. The pivoting pad allows angular adjustment to compensate for uneven floors, keeping the supported load stable and properly aligned. Both the pad and stud are constructed from steel for durability under sustained load. This type of mount is typically installed by millwrights, industrial maintenance technicians, and equipment installation crews working in manufacturing, processing, and mechanical room environments.

The TSW-1N-G is suited for machine leveling applications where a compact, threaded-mount solution is required. The 1.25-inch base diameter and 0.875-inch overall length make it appropriate for tight installation footprints. The 3/8-16 thread size is a common industrial standard, making this mount compatible with a wide range of equipment bases and mounting plates that use standard UNC threaded inserts or pre-tapped holes. It is well suited to both new equipment installations and field retrofits where existing leveling hardware requires replacement.

Key Features

• 3,750 lb static load capacity for heavy-duty equipment support
• Pivoting pad design allows angular compensation on uneven surfaces
• 3/8-16 UNC thread size matches common industrial mounting standards
• Steel pad and steel stud construction for long-term durability under load
• Compact 1.25-inch base diameter suits tight equipment footprints
• 0.875-inch overall length for low-profile installations

Compatibility

Designed as a standard-thread tapped pivotal leveling mount for industrial machinery, equipment bases, and structural frames that use 3/8-16 UNC threaded mounting points.

Installation Notes

Installation is typically performed by millwrights or industrial maintenance technicians using standard hand tools. Ensure the mounting surface and threaded insert are free of debris before threading the stud. Torque the mount only to the equipment manufacturer's specified value for the thread size. Verify load distribution across all leveling mounts before returning equipment to service.
