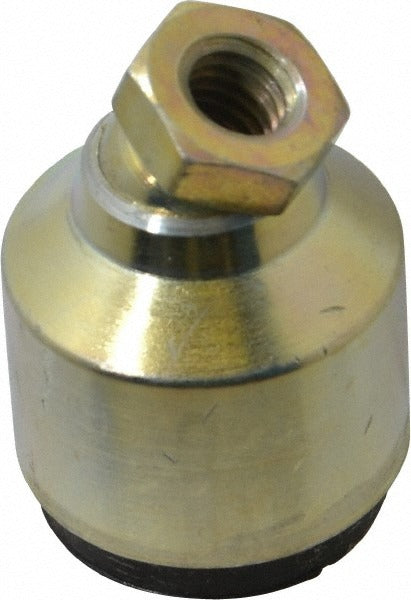

Gibraltar TSW-1L-G Tapped Leveling Mount 3/8-16 Thread

Product Description

The GIBRALTAR TSW-1L-G is a tapped leveling mount designed for equipment positioning and vibration isolation in industrial and commercial applications. Built with a zinc pad and zinc stud, it accepts a 3/8-16 threaded rod or bolt and supports a load capacity of 50 pounds. The 1-1/4 inch base diameter provides stable floor contact, while the overall length of 1-1/2 inches keeps the mount compact for tight installations. Machinists, millwrights, and equipment installers use tapped leveling mounts like this to achieve precise leveling on machine bases, enclosures, and structural frames without welding or permanent fastening.

This leveling mount is suited for light-duty machine leveling on production floors, equipment rooms, and fabrication environments. It is commonly installed on control panel enclosures, benchtop machinery, and light structural assemblies where a threaded adjustment point is needed. The 3/8-16 thread size is a standard coarse-thread specification widely used across equipment platforms in both inch-standard manufacturing and electrical enclosure applications.

Key Features

• 3/8-16 tapped thread accepts standard coarse-thread fasteners and leveling rods
• 50 pound load capacity for light-duty equipment support
• 1-1/4 inch base diameter for stable floor or surface contact
• 1-1/2 inch overall length for compact, low-profile installations
• Zinc stud and zinc pad construction for corrosion resistance in typical indoor environments
• 5/8 inch hex size allows wrench adjustment during leveling

Compatibility

Designed as a standard tapped leveling mount for use with 3/8-16 threaded hardware on light-duty machine bases, enclosures, and structural frames requiring adjustable leveling feet.

Installation Notes

Tapped leveling mounts are typically installed by millwrights, equipment technicians, or electricians during machine or enclosure commissioning. De-energize and isolate any equipment before working underneath or adjusting mounted hardware. Use a 5/8 inch wrench or socket on the hex stud for controlled height adjustment, and verify level with a precision level before final torque of any lock hardware. Do not exceed the rated load capacity of 50 pounds per mount.
