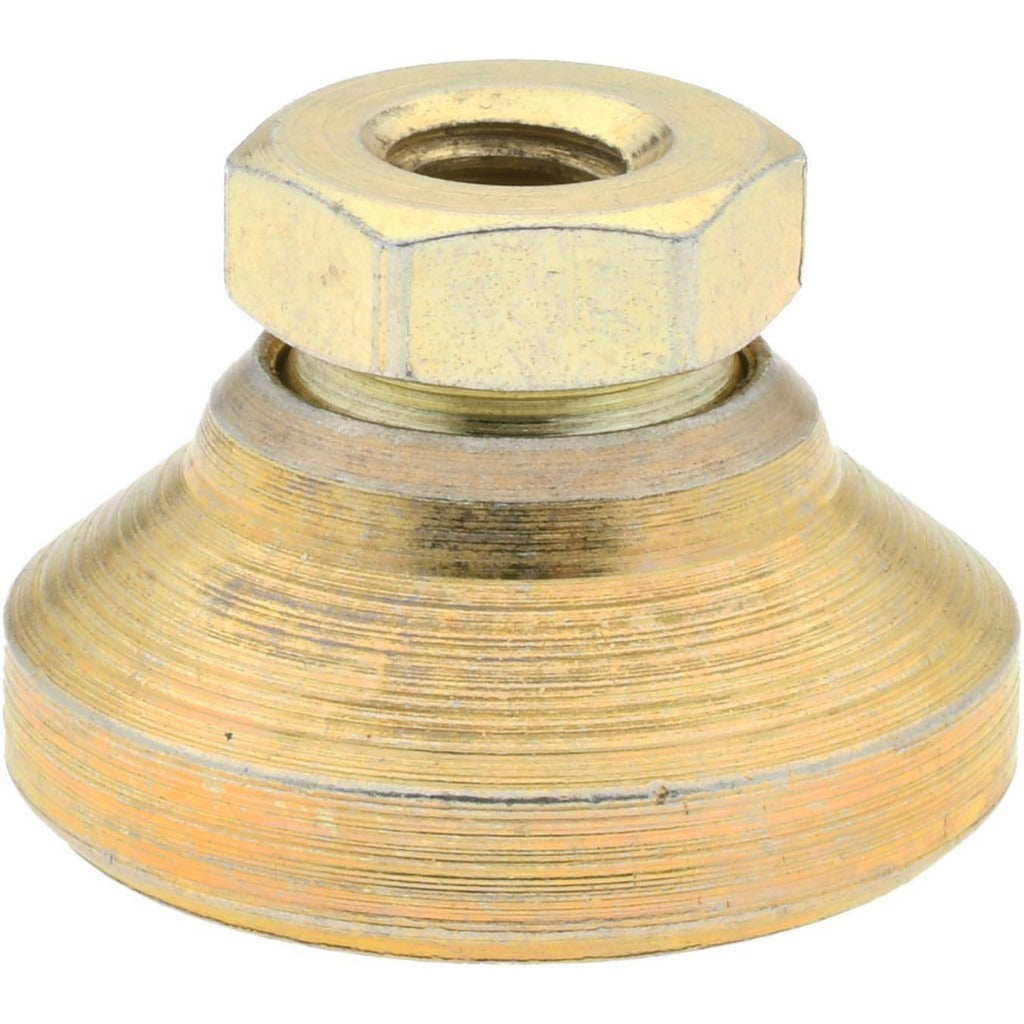

Gibraltar TSW-0Z-G Tapped Pivotal Leveling Mount 1/4-20

Product Description

The GIBRALTAR TSW-0Z-G is a tapped pivotal leveling mount designed for industrial and commercial equipment positioning applications. It features a 1/4-20 threaded stud and provides a rated load capacity of 1,000 pounds, making it suitable for stabilizing and leveling machinery, workbenches, enclosures, and similar equipment. The 1-inch diameter base distributes load across the mounting surface, while the pivotal design allows for angular adjustment to compensate for uneven floors or mounting surfaces. Both the stud and pad are zinc construction. Licensed tradespeople and millwrights installing or adjusting equipment leveling systems will find this mount straightforward to integrate into standard setups.

This leveling mount is suited for light industrial, commercial, and trade shop environments where precise equipment leveling is required. Typical applications include machine bases, electrical enclosures, workstation frames, and equipment cabinets requiring stable, adjustable footing. The 1/4-20 thread size is common in a wide range of light-duty to medium-duty equipment frames. The overall installed length of 45/64 inch keeps the mount compact for space-constrained installations.

Key Features

• 1,000 lb rated load capacity for reliable equipment support
• 1/4-20 threaded stud for compatibility with standard tapped mounting holes
• Pivotal base design allows angular adjustment to level on uneven surfaces
• 1-inch base diameter provides stable footing contact
• Zinc stud and zinc pad construction for corrosion resistance
• Compact 45/64 inch overall length for installations with limited clearance

Compatibility

Designed as an OEM-style leveling mount for equipment frames and enclosures with 1/4-20 tapped mounting holes requiring pivotal leveling adjustment.

Installation Notes

Installation is typically performed by millwrights, maintenance technicians, or equipment installers. Power down and de-energize any equipment before accessing the base frame or enclosure mounting points. Thread the stud fully into the tapped hole and adjust height and angle before locking the mount in position. Follow the equipment manufacturer's guidelines for final torque and leveling tolerances.
