Gibraltar SWPN-5A-G Threaded Spring Plunger 5/16-18

Product Description

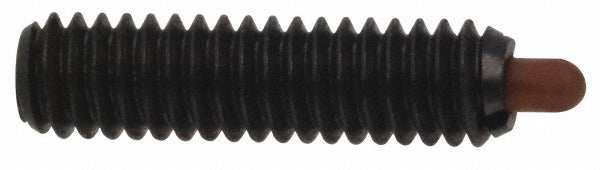

The GIBRALTAR SWPN-5A-G is a threaded spring plunger designed for indexing, positioning, and light-duty locking applications in mechanical assemblies. The plunger features a 5/16-18 unified coarse thread with a 1-inch thread length and a steel body rated for general industrial use. The phenolic nose provides a non-marring contact point, making it suitable for applications where surface protection is a priority. Initial end force is 1.5 pounds, and final end force is 4.5 pounds, delivering a consistent spring-loaded detent action. This part is installed by machinists, maintenance technicians, and mechanical assemblers working on fixtures, jigs, and production equipment.

The SWPN-5A-G is used in light industrial and manufacturing environments where repeatable positioning or controlled resistance is needed. Typical applications include machine tool fixtures, assembly jigs, sliding mechanisms, and enclosure panels requiring a spring-loaded stop or detent point. The 3/16-inch plunger projection and 0.135-inch maximum plunger diameter make it well-suited for compact assemblies with limited clearance. The standard plunger length type and 1-inch body length allow straightforward installation into tapped holes without additional hardware.

Key Features

• 5/16-18 unified coarse thread for direct installation into standard tapped holes
• Steel body construction for durability in industrial environments
• Phenolic nose provides non-marring contact with mating surfaces
• 1.5-pound initial end force and 4.5-pound final end force for controlled detent action
• 3/16-inch plunger projection with a maximum plunger diameter of 0.135 inches
• No locking element, allowing straightforward torque-in installation and removal

Compatibility

Designed as a standard threaded spring plunger for use in any assembly or fixture accepting a 5/16-18 tapped hole with sufficient depth to accommodate a 1-inch thread length.
