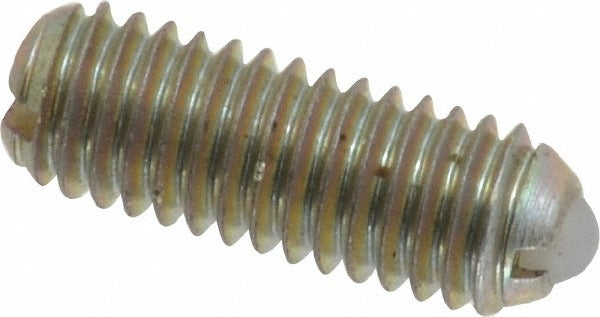

Gibraltar SWN10-3BHYZ-G Threaded Ball Plunger 10-32

Product Description

The GIBRALTAR SWN10-3BHYZ-G is a threaded ball plunger with a 10-32 thread size, designed for use in positioning, indexing, and detent applications across mechanical assemblies. The body is constructed from zinc-plated steel for corrosion resistance, while the nylon ball provides smooth, low-friction contact against mating surfaces. With a ball diameter of 0.094 inches and a maximum ball reach of 0.025 inches, this plunger delivers precise, repeatable positioning force. An initial end force of 2 pounds and a final end force of 5 pounds make it suitable for light-duty detent and locating tasks in tooling, fixtures, and machine components.

This ball plunger is used in manufacturing, tooling, and general mechanical assembly applications where a threaded, spring-loaded detent is required. Its compact body length of 0.513 inches allows installation in tight spaces. The 10-32 thread is a standard unified fine thread commonly found in light mechanical and instrument-grade assemblies. Machinists, tool and die makers, maintenance technicians, and mechanical assemblers typically install this type of component in jigs, fixtures, slides, and indexing mechanisms.

Key Features

• 10-32 threaded body for direct installation into tapped holes
• Zinc-plated steel body provides corrosion resistance in shop environments
• Nylon ball offers low-friction, non-marring contact on mating surfaces
• Initial end force of 2 pounds, final end force of 5 pounds for light-duty detent use
• Compact body length of 0.513 inches fits space-constrained assemblies
• No locking element — standard spring-loaded ball design for straightforward installation

Compatibility

Designed as an OEM-style replacement or new-installation threaded ball plunger for light mechanical assemblies, fixtures, and tooling applications requiring a 10-32 thread size.

Installation Notes

Installation requires a tapped 10-32 hole in the mating component. Use an appropriate hex key or driver to thread the plunger body to the required depth, ensuring the ball protrudes correctly against the detent surface. Do not overtighten, as excessive torque can damage the nylon ball or deform the plunger body. Always de-energize or secure any machine or assembly before installing or replacing plunger components.
