Gibraltar SWN10-3-G Threaded Spring Plunger 10-32 Steel

Product Description

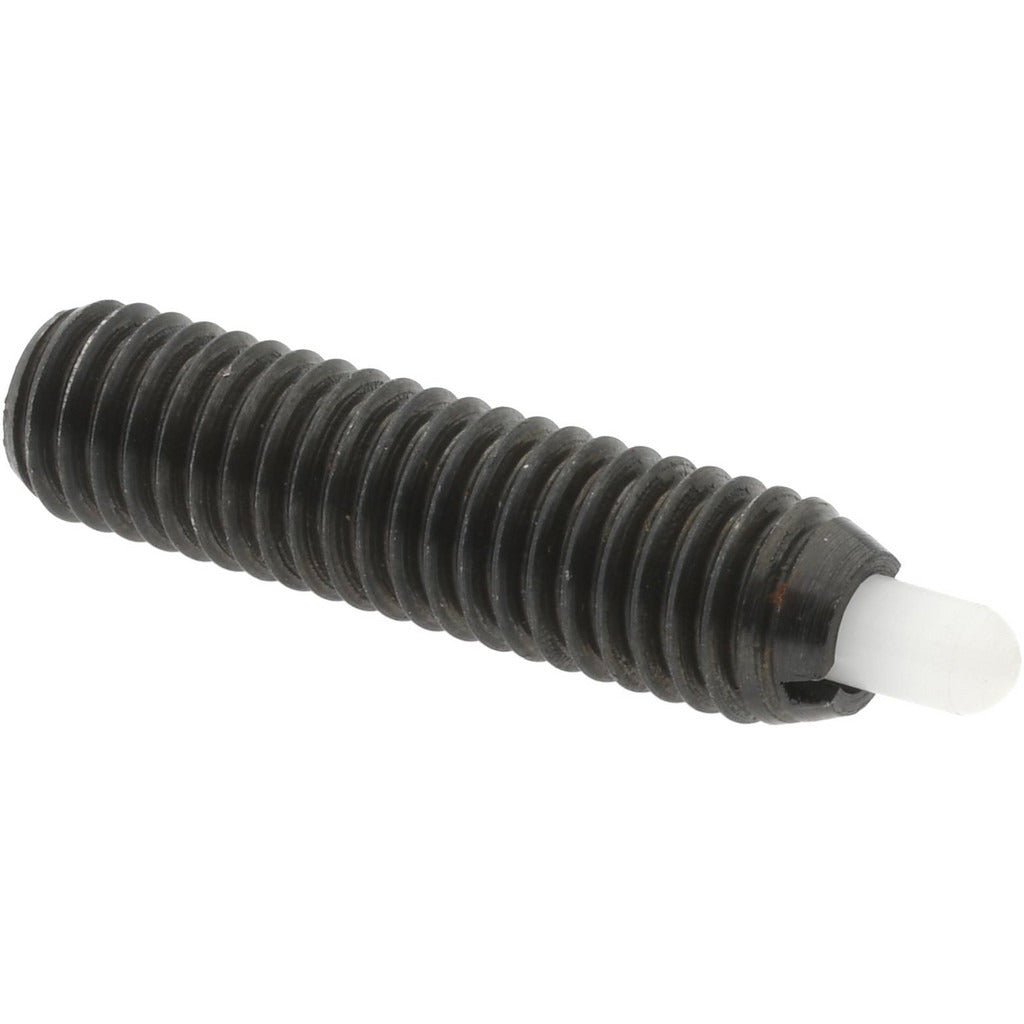

The GIBRALTAR SWN10-3-G is a threaded spring plunger designed for indexing, positioning, and light-duty holding applications in mechanical assemblies. The plunger features a steel body with a nylon nose, a 10-32 thread size, and a 3/4-inch thread length. At full compression, it delivers 11.1 pounds of final end force, with an initial end force of 2.9 pounds. The 0.092-inch maximum plunger diameter and 1/8-inch projection make it suitable for precision-fit installations where consistent spring force and minimal tip wear are required. Machinists, toolmakers, and mechanical assembly technicians are the primary installers of this component.

This spring plunger is used in fixtures, jigs, tooling plates, machine enclosures, and industrial equipment where repeatable spring-loaded positioning or detent action is needed. The standard-length plunger configuration fits threaded holes in metal or plastic housings. It is well-suited for light-load applications where a non-marring nylon nose is preferred to protect softer mating surfaces. The 10-32 thread size is common in precision machined components and instrument-grade assemblies.

Key Features

• 10-32 threaded body for installation in standard tapped holes
• Steel body construction for durability in industrial environments
• Nylon nose provides a non-marring contact surface on mating components
• 1/8-inch plunger projection with 0.092-inch maximum plunger diameter
• 2.9-pound initial end force and 11.1-pound final end force for consistent spring action
• No locking element — standard friction-fit installation

Compatibility

Designed as a standard threaded spring plunger for use in any application requiring a 10-32 tapped hole with a 3/4-inch thread depth.

Installation Notes

Install using a screwdriver or hex key appropriate for the drive type into a properly tapped 10-32 hole. Ensure the mating hole depth accommodates the 3/4-inch thread length before installation. Do not overtighten, as this can damage the nylon nose or distort the spring mechanism. No special tools or certifications are required for installation in standard mechanical assemblies.
