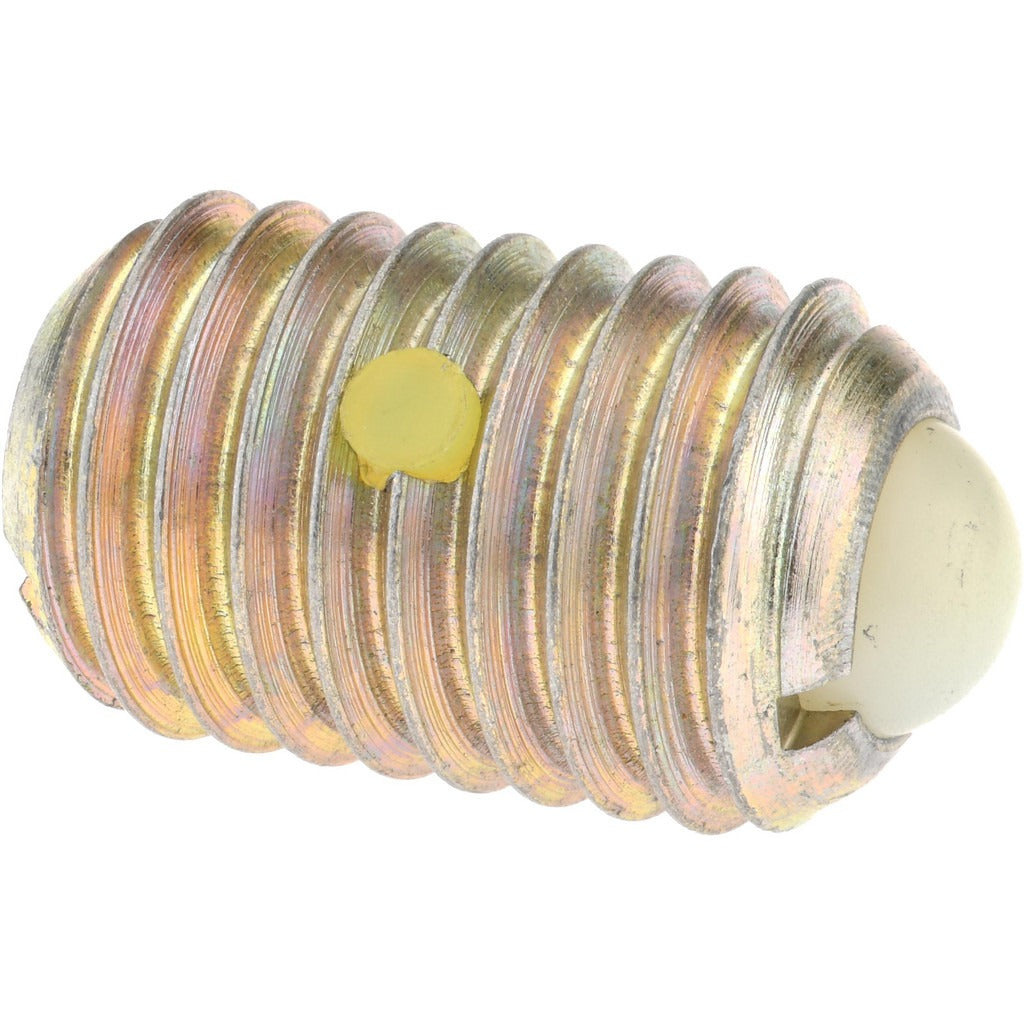

Gibraltar SWN10-10HYZ-PTG Threaded Ball Plunger 5/8-11

Product Description

The GIBRALTAR SWN10-10HYZ-PTG is a threaded ball plunger designed for indexing, positioning, and light-duty detent applications in mechanical assemblies. It features a 5/8-11 thread, a 0.375-inch nylon ball, and a zinc-plated steel body measuring 0.984 inches in body length. The nylon ball delivers a maximum reach of 0.096 inches with an initial end force of 7 pounds and a final end force of 50 pounds. A built-in locking element secures the plunger in place once installed. This component is typically installed by machinists, toolmakers, and maintenance technicians working with jigs, fixtures, and machine tool assemblies.

This ball plunger is suited for use in industrial and manufacturing environments where repeatable positioning or spring-loaded detent action is required. Common applications include fixture plates, tooling bodies, sliding mechanisms, and panel assemblies. The nylon ball reduces surface marring on softer workpieces or mating components. The zinc-plated steel body offers corrosion resistance in general shop environments. The purple color code aids in quick visual identification during assembly and maintenance operations.

Key Features

• 5/8-11 threaded body for direct installation into tapped holes
• 0.375-inch nylon ball minimizes surface damage on mating parts
• Initial end force of 7 pounds and final end force of 50 pounds for reliable detent action
• Maximum ball reach of 0.096 inches for controlled engagement depth
• Built-in locking element prevents unintended back-out after installation
• Zinc-plated steel body for corrosion resistance in general industrial use

Compatibility

Designed as a direct-install threaded ball plunger for any application requiring a 5/8-11 tapped hole and spring-loaded ball detent or positioning function in mechanical assemblies.

Installation Notes

Installation is typically performed by machinists or mechanical technicians using a standard hex wrench or spanner appropriate for the body size. Ensure the receiving tapped hole is clean and free of debris before threading in the plunger. The built-in locking element engages upon final seating to resist back-out; do not over-torque, as excessive force can damage the nylon ball or locking element. De-energize or lock out any associated machinery before servicing components in the assembly.
