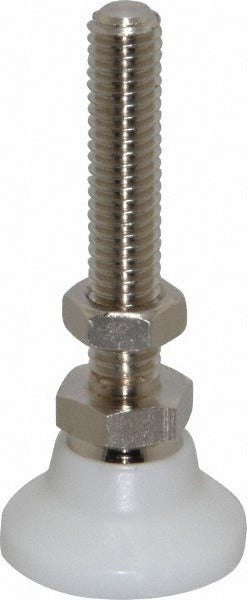

Gibraltar SWD-1N-G Studded Pivotal Leveling Mount 300 Lb

Product Description

The GIBRALTAR SWD-1N-G is a studded pivotal leveling mount designed to provide stable, adjustable support for equipment and machinery on uneven or hard floor surfaces. The mount features a 3/8-16 threaded steel stud for secure attachment and a Delrin pad base that pivots to compensate for surface irregularities. It carries a 300 lb load capacity and measures 2.875 inches in length with a 1.25 inch base diameter. Maintenance technicians, millwrights, and equipment installers use this type of mount during machine installation and leveling procedures.

This leveling mount is suited for light industrial, commercial, and trade applications where equipment feet require fine height adjustment and floor contact stabilization. Common install scenarios include HVAC unit bases, compressor skids, pumps, shop equipment, and other machinery that requires leveling on concrete or tile flooring. The pivoting Delrin pad accommodates minor floor slope without requiring a perfectly flat mounting surface.

Key Features

• 300 lb load capacity per mount for reliable equipment support
• 3/8-16 threaded steel stud for secure, standard fastener compatibility
• Pivoting Delrin pad accommodates uneven or slightly angled floor surfaces
• 1.25 inch base diameter provides a compact footprint
• 2.875 inch overall length allows for adequate height adjustment range
• Lightweight at 0.12 pounds — easy to handle and install in quantity

Compatibility

Designed as a general-purpose OEM-style leveling foot for machinery, equipment bases, and fabricated frames requiring a 3/8-16 threaded mounting stud.

Installation Notes

Installation is typically performed by millwrights, HVAC technicians, or equipment installers. Ensure all equipment power and fluid supplies are isolated before positioning or adjusting mounted machinery. Thread the stud into the equipment base and adjust height before fully loading the mount. Use a wrench on the stud hex to lock the desired height once leveling is confirmed with a level gauge.
