Gibraltar SWD-1AN-G Studded Pivotal Leveling Mount 300 Lb

Product Description

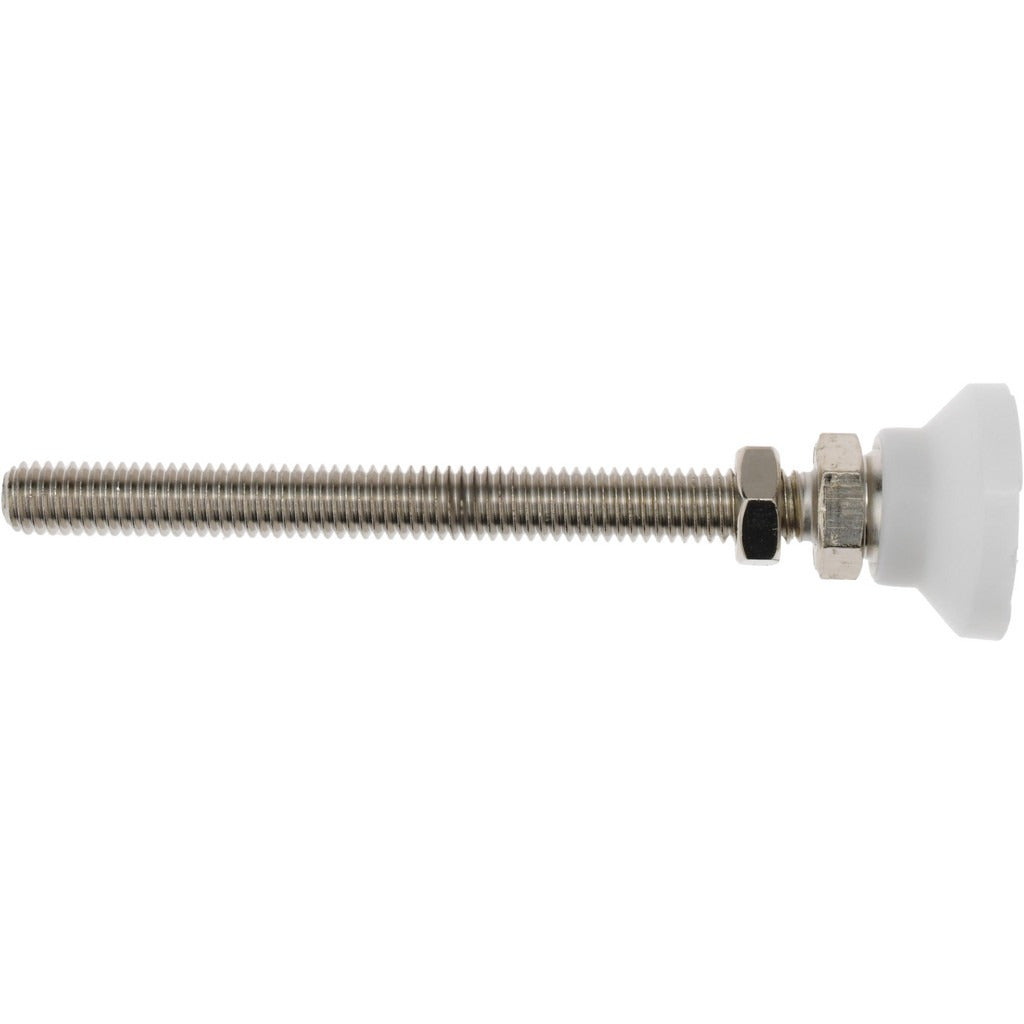

The GIBRALTAR SWD-1AN-G is a studded pivotal leveling mount designed to provide stable, adjustable support for machinery, equipment frames, and industrial workstations. The mount features a steel stud with a 3/8-16 bolt thread and a Delrin pad base that pivots to accommodate uneven surfaces, distributing load evenly across the contact point. It carries a rated load capacity of 300 pounds and extends to 4.875 inches in length with a 1.25-inch base diameter. This type of hardware is installed by millwrights, maintenance technicians, and equipment installers in light industrial and commercial settings where leveling and vibration isolation are required.

The SWD-1AN-G is suited for use under equipment bases, machine frames, and fabricated steel stands where floor surfaces are not perfectly flat. The pivoting Delrin pad self-adjusts to compensate for minor angular misalignment between the floor and the equipment base plate, reducing stress on the stud and mounting surface. It is a common component in industrial maintenance, mechanical contracting, and equipment installation work across manufacturing and commercial facility environments.

Key Features

• 300 pound load capacity per mount for reliable equipment support
• Pivoting Delrin pad accommodates uneven or angled floor surfaces
• Steel stud with 3/8-16 thread for secure fastening to equipment bases
• 1.25-inch base diameter keeps footprint compact
• 4.875-inch length provides adjustment range for leveling applications
• Lightweight at 0.18 pounds, minimizing added mass to the assembly

Compatibility

Designed as a standard studded pivotal leveling mount for use with machinery, equipment frames, and fabricated stands that accept a 3/8-16 threaded stud mount.

Installation Notes

Installation is typically performed by maintenance technicians or mechanical contractors using standard hand tools. Before installing or adjusting leveling mounts under powered equipment, de-energize the machine and follow applicable lockout/tagout procedures. Thread the steel stud into the equipment base to the desired height and lock in position if a jam nut is used. Do not exceed the rated 300 pound load capacity per mount when calculating total support requirements for the application.
