Gibraltar SWD-00N-G Studded Pivotal Leveling Mount

Product Description

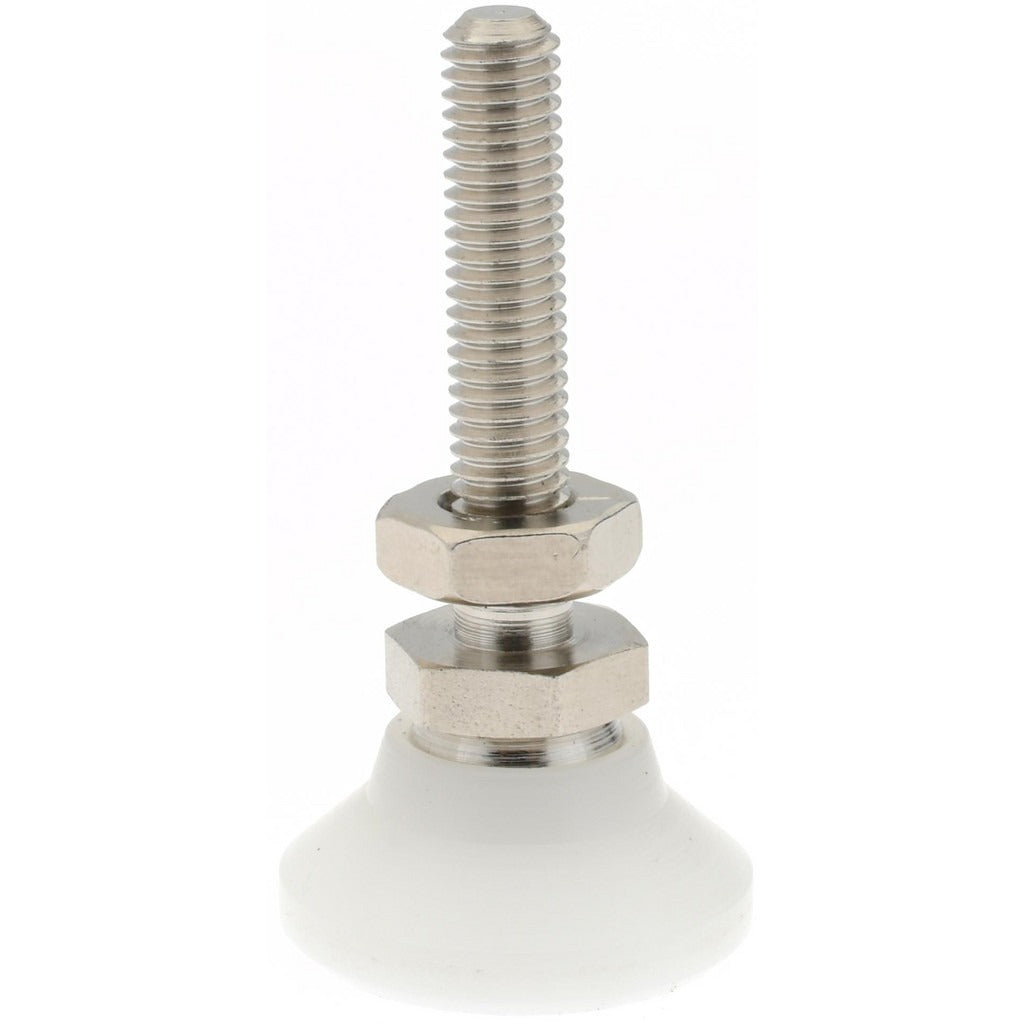

The GIBRALTAR SWD-00N-G is a studded pivotal leveling mount designed to provide adjustable, stable support for equipment, machinery, and enclosures in industrial and commercial applications. The mount features a steel stud threaded at 10-32 and a Delrin pad base that pivots to compensate for uneven mounting surfaces. It supports up to 150 lb load capacity, making it suitable for light-duty equipment positioning and vibration isolation. The overall length is 1.5 inches with a base diameter of 0.75 inches. Machinists, millwrights, and maintenance technicians typically install these mounts during equipment setup or enclosure leveling work.

This leveling mount is used in applications where precise equipment leveling is required on flat or slightly irregular surfaces. Common install scenarios include control panel enclosures, small machinery bases, and electronic equipment supports in both commercial and light industrial settings. The pivoting Delrin pad allows the mount to seat flush even when the mating surface is not perfectly perpendicular to the stud axis, reducing stress on threaded connections during leveling adjustments.

Key Features

• 150 lb load capacity per mount for light-duty equipment support
• 10-32 steel stud thread for secure fastening into tapped holes
• Delrin pad pivots to accommodate non-perpendicular mounting surfaces
• Compact form factor: 1.5 inches length, 0.75 inch base diameter
• Steel stud construction for durability in industrial environments

Compatibility

Designed as a standard leveling mount replacement or addition for equipment with 10-32 tapped mounting points requiring adjustable feet with pivoting Delrin pads.

Installation Notes

Installation is performed by threading the steel stud into a compatible 10-32 tapped hole on the equipment base or enclosure. De-energize and safely support any equipment before installing or adjusting leveling mounts. Use a wrench or appropriate driver on the stud flats to achieve the desired height adjustment without over-torquing the threaded connection. Verify load distribution across all mounts after final adjustment.
