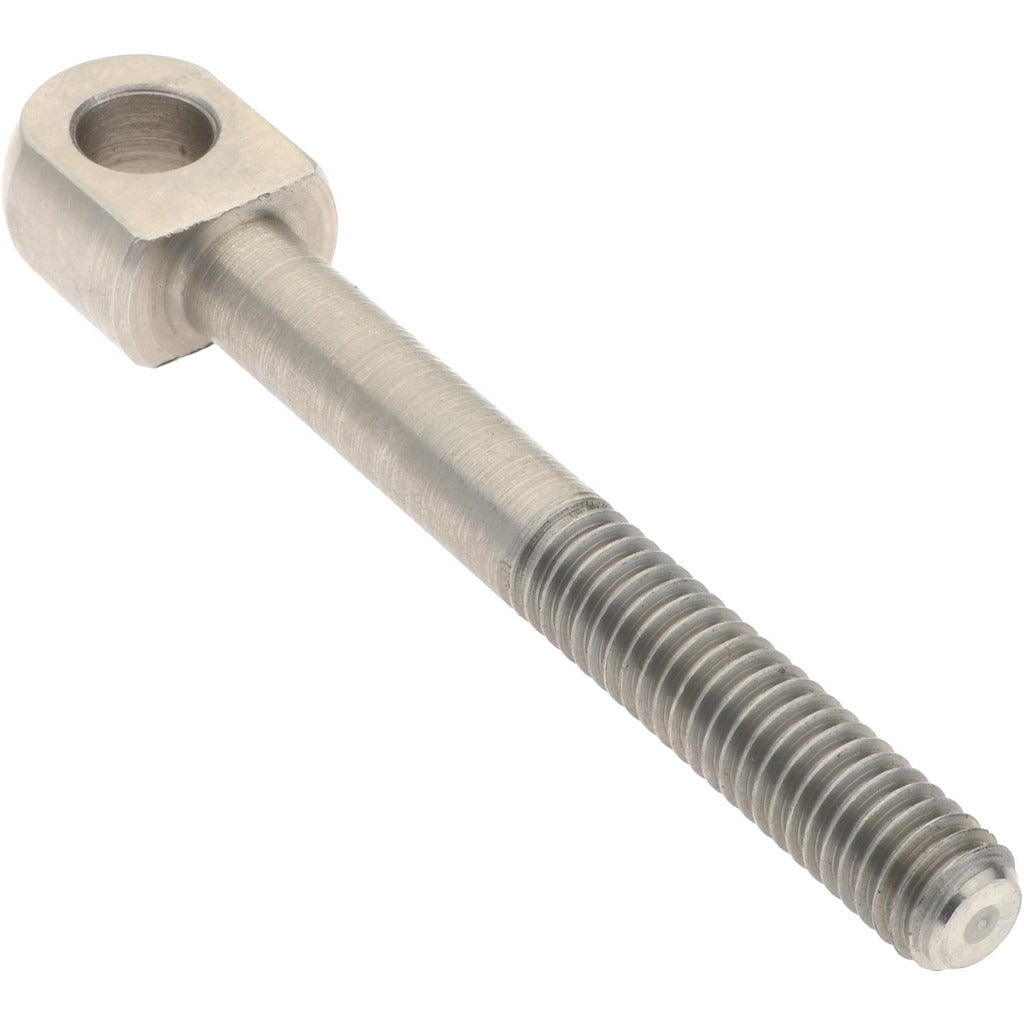

Gibraltar SWB-04SS-G Swing Bolt 5/16-18 Stainless Steel

Product Description

The GIBRALTAR SWB-04SS-G is a stainless steel swing bolt designed for clamping, latching, and toggle-fastening applications across industrial, marine, and mechanical service environments. The bolt features a 5/16-18 thread size with a 1-3/8 inch thread length and a 5/16 inch hole diameter at the swing end. The head thickness measures 3/8 inch, and the hole center-to-end dimension is 3 inches. Constructed from Grade 303 stainless steel, this fastener resists corrosion in wet, chemical-exposed, or outdoor service conditions. Licensed trades and maintenance professionals install swing bolts in panel latching systems, enclosure hardware, and pressure-clamping assemblies.

This swing bolt is suited for light industrial and commercial installations where a corrosion-resistant toggle fastener is required. Typical applications include electrical enclosures, HVAC access panel hardware, mechanical equipment covers, and marine-grade latch systems. The 5/16-18 thread pitch is a common unified coarse standard, making it straightforward to pair with standard wing nuts, hex nuts, or T-nuts in existing assemblies. Its stainless steel construction makes it appropriate for outdoor exposure, humid environments, or installations where a steel or zinc fastener would corrode prematurely.

Key Features

• Grade 303 stainless steel construction for corrosion resistance in wet or chemically exposed environments
• 5/16-18 unified coarse thread for compatibility with standard fastener hardware
• 1-3/8 inch thread length provides sufficient engagement depth for typical clamping applications
• 3 inch hole center-to-end dimension suits standard panel latch and enclosure hardware layouts
• 3/8 inch head thickness supports secure pivot and swing action under load
• Sold as a single unit, suitable for individual replacement or multi-unit procurement

Compatibility

Designed as an OEM-style replacement or direct-install swing bolt for enclosure latching systems, access panel hardware, and mechanical clamping assemblies requiring a 5/16-18 stainless steel fastener with a 3 inch hole center-to-end dimension.

Installation Notes

Installation of swing bolts is typically performed by maintenance technicians, electricians, or mechanical contractors as part of enclosure or panel hardware service. Before servicing any enclosure or panel, de-energize the system according to applicable NFPA 70 lockout-tagout procedures. Use appropriate hand tools to seat the bolt and mating nut; do not overtighten, as Grade 303 stainless fasteners are not rated for high-torque structural applications. Inspect the swing pivot for free movement after installation to confirm proper latch engagement.
