Gibraltar SW10-3FSP-G Threaded Spring Plunger 10-32 Steel

Product Description

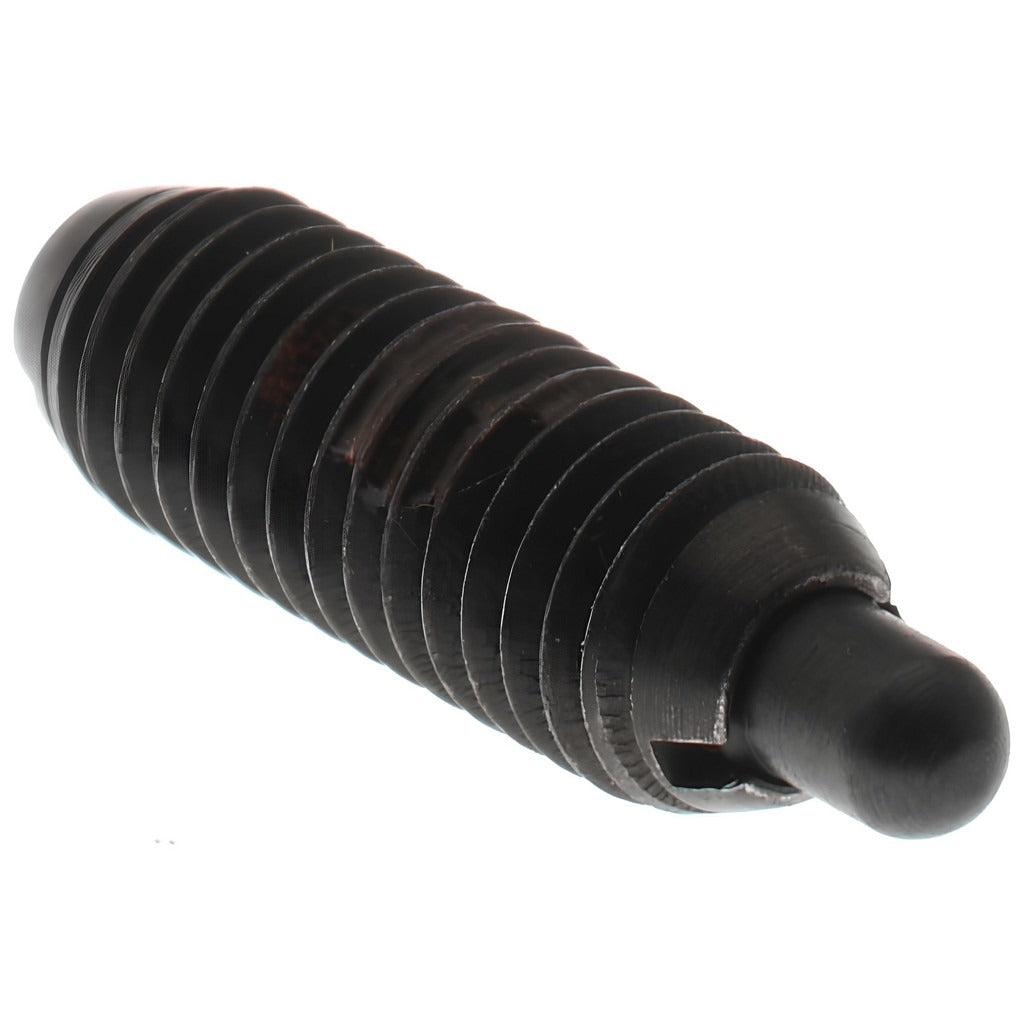

The GIBRALTAR SW10-3FSP-G is a threaded spring plunger designed for indexing, positioning, and light-duty locking applications in mechanical assemblies. The plunger features a 10-32 thread size with a 9/16 inch thread length and a maximum plunger diameter of 0.093 inches. Projection measures 1/8 inch. Initial end force is 0.5 pounds and final end force is 5 pounds, giving technicians a reliable, repeatable actuation force for jigs, fixtures, and industrial components. The steel body and steel nose provide durability in typical shop and manufacturing environments. A locking element is integrated into the design for secure seating once installed.

This short-plunger-style spring plunger is suited for use in machine fixtures, tooling plates, panel assemblies, and any mechanical application requiring a compact, threaded positioning device. The 10-32 thread pattern makes it compatible with standard tapped holes in aluminum, steel, and other common structural materials. It is typically installed by machinists, tool-and-die technicians, mechanical assemblers, and maintenance professionals working in light industrial and manufacturing settings.

Key Features

• 10-32 thread size with 9/16 inch thread length for standard tapped-hole installation
• 0.093 inch maximum plunger diameter with 1/8 inch projection for compact fitment
• 0.5 lb initial end force and 5 lb final end force for consistent, repeatable actuation
• Steel body and steel nose construction for durability in industrial environments
• Integrated locking element for secure, vibration-resistant seating
• Short plunger length type for space-constrained assemblies

Compatibility

Designed as an OEM-style threaded spring plunger for standard 10-32 tapped holes in mechanical fixtures, tooling plates, and industrial assemblies requiring light-duty spring-loaded positioning.

Installation Notes

Install using a hex key or appropriate driver into a properly tapped 10-32 hole. Ensure the mating hole is clean and free of debris before threading in the plunger. Do not overtighten, as excessive torque can damage the locking element or distort the plunger body. Depressurize or de-energize any assembly before servicing components that include spring plungers.
