Gibraltar SW10-3-G Threaded Spring Plunger 10-32 Steel

Product Description

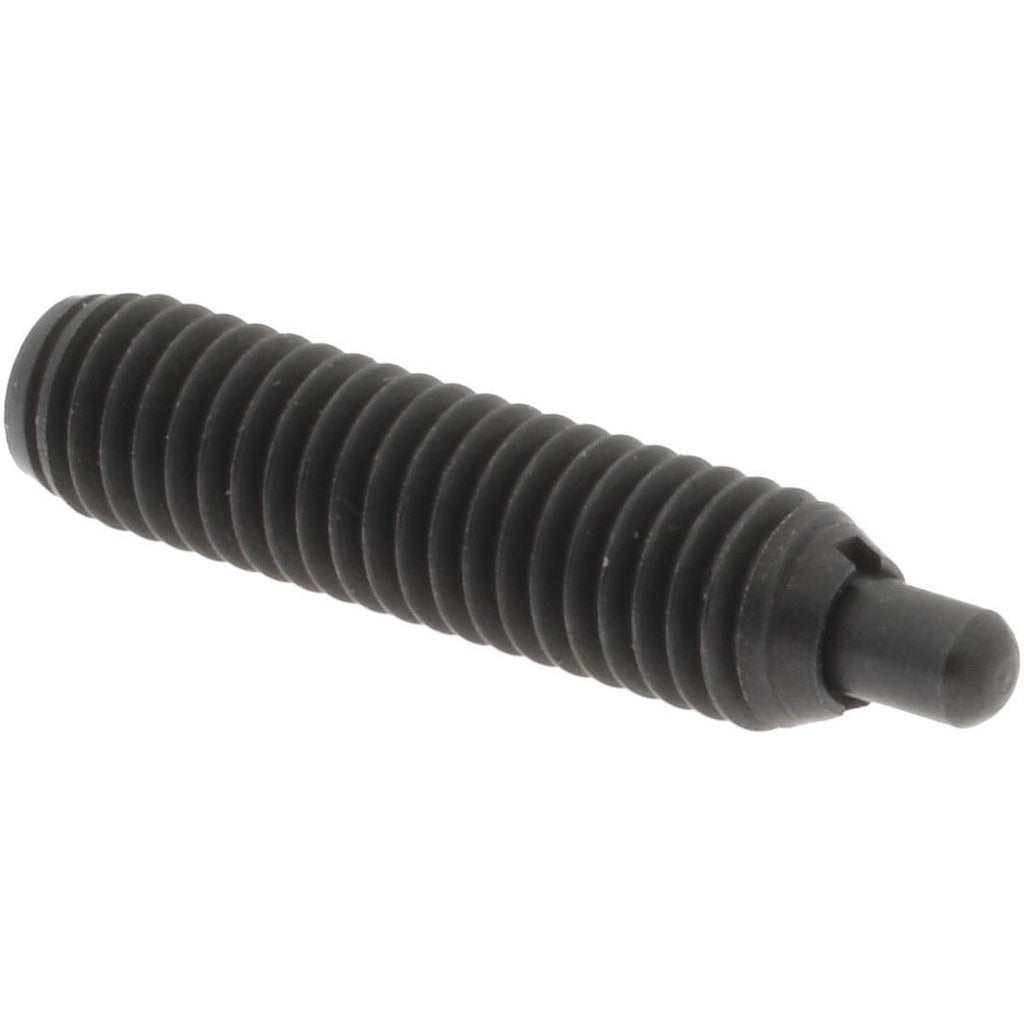

The GIBRALTAR SW10-3-G is a threaded spring plunger designed for indexing, positioning, and light-duty holding applications in mechanical assemblies. It features a 10-32 thread size with a 3/4-inch thread length and a standard-length steel body. The plunger nose extends 1/8 inch (0.125 inches decimal) at full projection and measures 0.092 inches in maximum diameter. Initial end force is 2.9 pounds, with a final end force of 11.1 pounds, making it suited for repeatable detent and locating functions. Both the body and nose are steel construction. This part is installed by machinists, toolmakers, and mechanical assembly technicians.

The SW10-3-G is used in jigs, fixtures, machine tool assemblies, and production equipment where a compact, threaded detent or positioning element is required. The 10-32 thread allows direct installation into tapped holes in steel, aluminum, or other metal components. Its standard plunger length and predictable spring force range make it a common choice for light indexing and panel latching in industrial and OEM equipment builds. No locking element is present, so thread-locking compound may be used at the installer's discretion.

Key Features

• 10-32 threaded body with 3/4-inch thread length for direct installation into standard tapped holes
• Steel body and steel nose for durability in metal assembly environments
• 2.9 lb initial end force and 11.1 lb final end force for reliable detent and positioning
• 0.092-inch maximum plunger diameter with 1/8-inch (0.125 inches) projection
• No locking element — allows removal and repositioning without thread damage
• Compact standard-length profile fits tight clearance applications

Compatibility

Designed as an OEM-style threaded spring plunger for use in jigs, fixtures, and mechanical assemblies requiring a 10-32 tapped hole with 3/4-inch thread engagement depth.

Installation Notes

Install using a hex key or spanner wrench appropriate for the body drive style; confirm the receiving hole is tapped to 10-32 and is clean before installation. Power down or de-energize any assembly before servicing components in the mechanism. If retention is critical, apply a thread-locking compound to prevent back-out under vibration. Do not over-torque the body, as this can distort the plunger bore and affect spring travel.
