Gibraltar SW10-2S-G Threaded Spring Plunger 8-36 Steel

Product Description

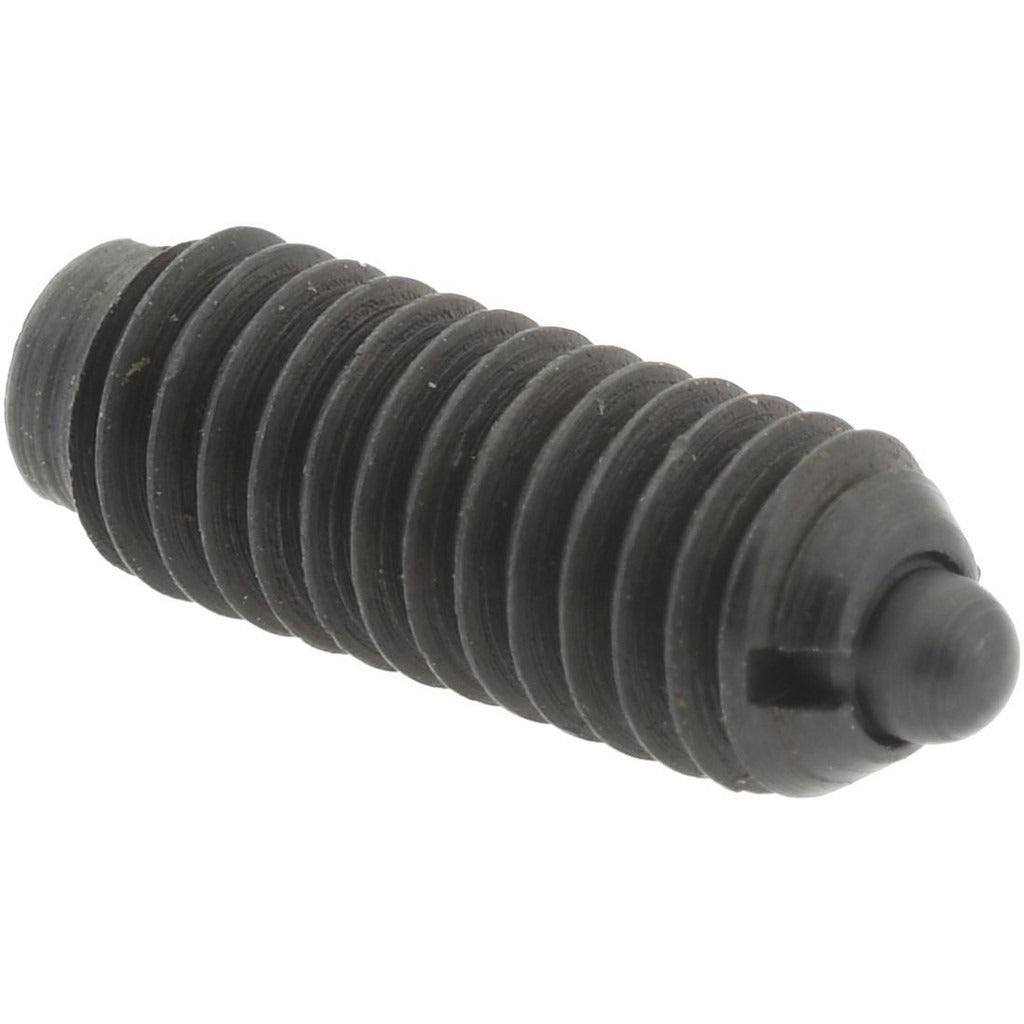

The GIBRALTAR SW10-2S-G is a stubby threaded spring plunger designed for precision positioning, indexing, and light-duty detenting applications in mechanical assemblies. The steel body and steel nose deliver consistent spring force across repeated cycles. Thread size is 8-36 with a thread length of 0.437 inches. The plunger projection measures 0.052 inches, making this a compact, low-profile unit suited for tight clearances. Initial end force is 1.5 pounds and final end force is 4.7 pounds. This plunger is typically installed by machinists, toolmakers, or mechanical assemblers working on fixtures, jigs, or precision equipment.

The SW10-2S-G fits applications where a stubby spring plunger with minimal projection is required. Common uses include panel assemblies, slide mechanisms, drawer stops, and fixture locating systems where the 8-36 thread fits into a tapped hole in a metal or plastic housing. The compact body length of 0.437 inches suits confined spaces where standard-length plungers would not fit. No locking element is present, so the plunger threads in and out freely for adjustment or removal during maintenance cycles.

Key Features

• Stubby plunger length type for use in confined or space-limited assemblies
• 8-36 thread size with 0.437-inch thread length for secure engagement in tapped housings
• 1.5-pound initial end force and 4.7-pound final end force for light-duty detent and positioning work
• Steel body and steel nose construction for durability in repeated-cycle applications
• 0.052-inch plunger projection keeps the nose low-profile when extended
• No locking element allows free adjustment and straightforward removal

Compatibility

Designed as an OEM-style or aftermarket replacement stubby threaded spring plunger for mechanical assemblies requiring an 8-36 threaded steel plunger with a body length of 0.437 inches.

Installation Notes

Installation requires a properly tapped 8-36 hole in the mating component. Use an appropriate screwdriver or hex key compatible with the drive type of the plunger head, and avoid over-torquing to prevent thread damage in softer base materials. Power down or de-energize any associated machinery before installing or removing spring plungers in live assemblies. Follow applicable machine safety standards and facility lockout-tagout procedures during service.
