Gibraltar SW10-1XFSP-G Threaded Spring Plunger 6-32 Steel

Product Description

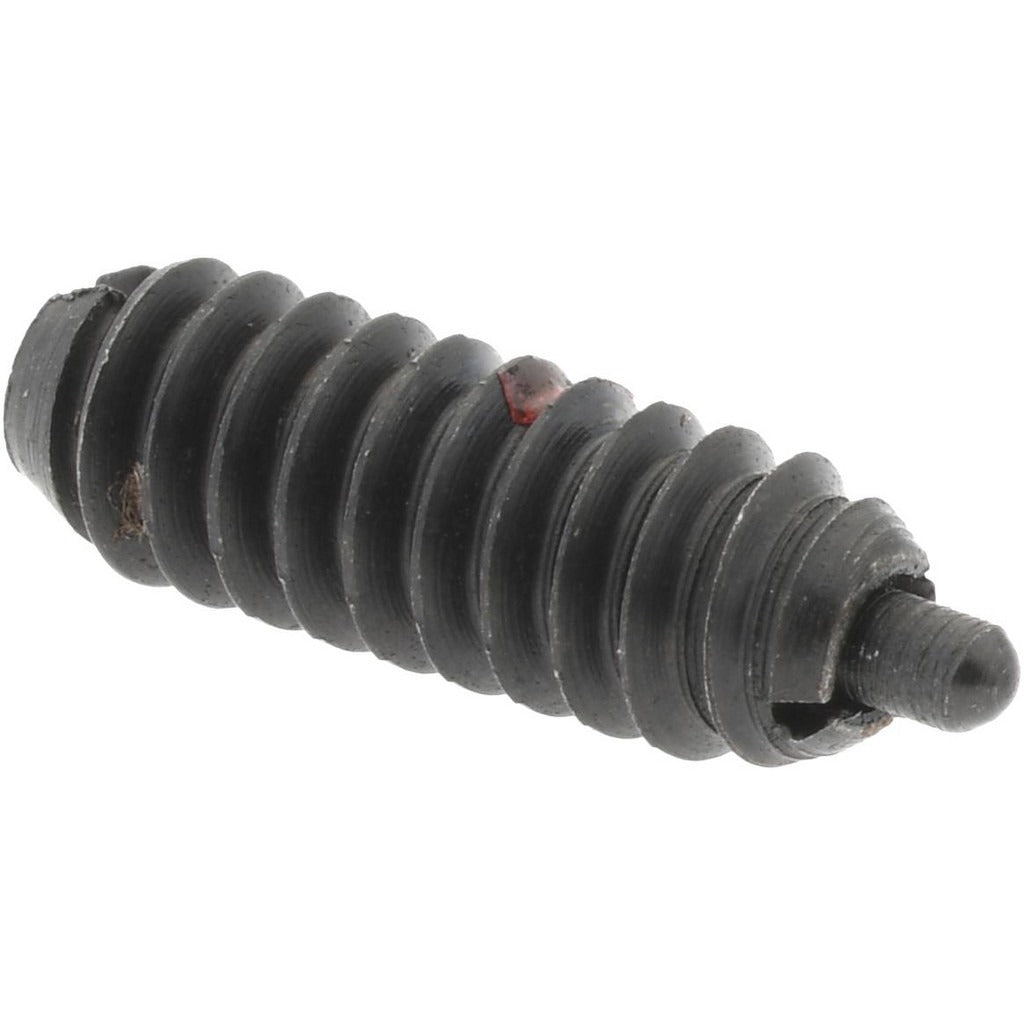

The GIBRALTAR SW10-1XFSP-G is a short threaded spring plunger designed for precise, repeatable positioning and indexing in mechanical assemblies. It features a steel body with a locking element to secure the plunger position once set. The 6-32 threaded shank installs into a tapped hole and provides a maximum plunger diameter of 0.046 inches with a 1/16-inch nose projection. Initial end force is 0.50 pounds and final end force is 3.5 pounds, making it well-suited for light-duty detent and locating applications. Machinists, assembly technicians, and maintenance trades install these in tooling, fixtures, and equipment panels.

This spring plunger is used in light mechanical assemblies where a small, consistent detent force is needed to hold or index a component in position. Common applications include panel assemblies, jigs, fixtures, and equipment housings across industrial, HVAC, and electrical panel environments. The 6-32 thread size and 3/8-inch thread length suit installations in thin metal stock and machined aluminum or steel components. The locking element prevents the plunger from backing out under vibration or repeated cycling.

Key Features

• 6-32 thread size with 3/8-inch thread length for installation in standard tapped holes
• Short plunger length type with 1/16-inch nose projection
• 0.046-inch maximum plunger diameter for fine-tolerance bores
• 0.50-pound initial end force and 3.5-pound final end force for light-duty detent applications
• Steel nose and steel body construction for durability
• Locking element included to prevent plunger rotation or back-out

Compatibility

Designed as an OEM-style threaded spring plunger for use in standard 6-32 tapped holes in metal assemblies, fixtures, and mechanical panels requiring a short-projection detent or indexing function.

Installation Notes

Installation requires a properly tapped 6-32 hole in the mating component. Use the appropriate hex key or driver to thread the plunger to the desired depth before engaging the locking element. Power down or de-energize any panel or assembly before installing or adjusting spring plungers in live electrical or mechanical equipment. Do not overtighten, as the steel body can strip fine threads in softer base materials such as aluminum.
