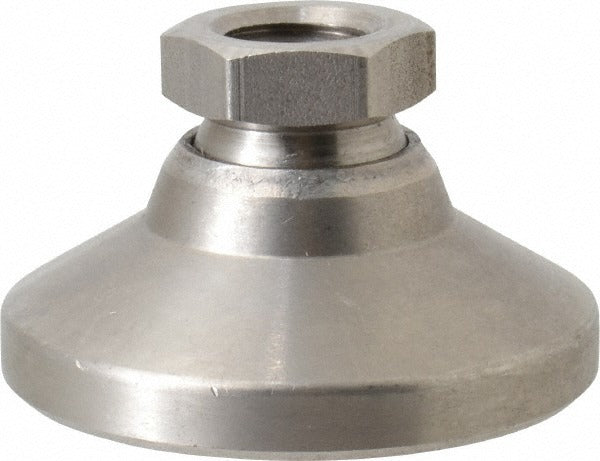

Gibraltar STS-2-G Tapped Pivotal Leveling Mount 5000 Lb

Product Description

The GIBRALTAR STS-2-G is a tapped pivotal leveling mount designed for industrial and commercial equipment positioning applications. It features a stainless steel stud with a 1/2-13 thread size and a stainless steel pad, providing corrosion resistance in demanding environments. The mount offers a rated load capacity of 5,000 lb and measures 1.875 inches in base diameter with an overall length of 1.125 inches. The pivoting pad design allows the base to self-adjust to uneven floor surfaces, maintaining stable, level contact under load. This type of leveling mount is installed by millwrights, maintenance technicians, and equipment installers working on industrial machinery, HVAC equipment bases, and other heavy equipment requiring precise floor-level adjustment.

The STS-2-G is suited for use on machinery frames, equipment skids, and structural bases in manufacturing, mechanical rooms, and industrial facilities. The tapped body accepts a 1/2-13 threaded stud, allowing height adjustment during installation. The stainless steel construction makes it appropriate for environments where moisture, cleaning agents, or mild corrosives are present. Sold individually, this mount is typically used in sets to level a single piece of equipment.

Key Features

• 5,000 lb load capacity for heavy industrial equipment support
• Tapped pivotal design allows self-leveling pad adjustment on uneven surfaces
• Stainless steel stud and pad for corrosion resistance
• 1/2-13 thread size with 3/4-inch hex for standard wrench adjustment
• Compact 1.875-inch base diameter and 1.125-inch overall length

Compatibility

Designed as a standard tapped pivotal leveling mount for industrial machinery, equipment skids, and mechanical equipment bases requiring 1/2-13 threaded mounting hardware.

Installation Notes

Installation is performed by millwrights or qualified maintenance technicians. Power down and de-energize all connected equipment before beginning leveling work. Use a 3/4-inch wrench or socket to adjust stud height and achieve the desired level position. Verify load distribution across all mount points before returning equipment to service.
