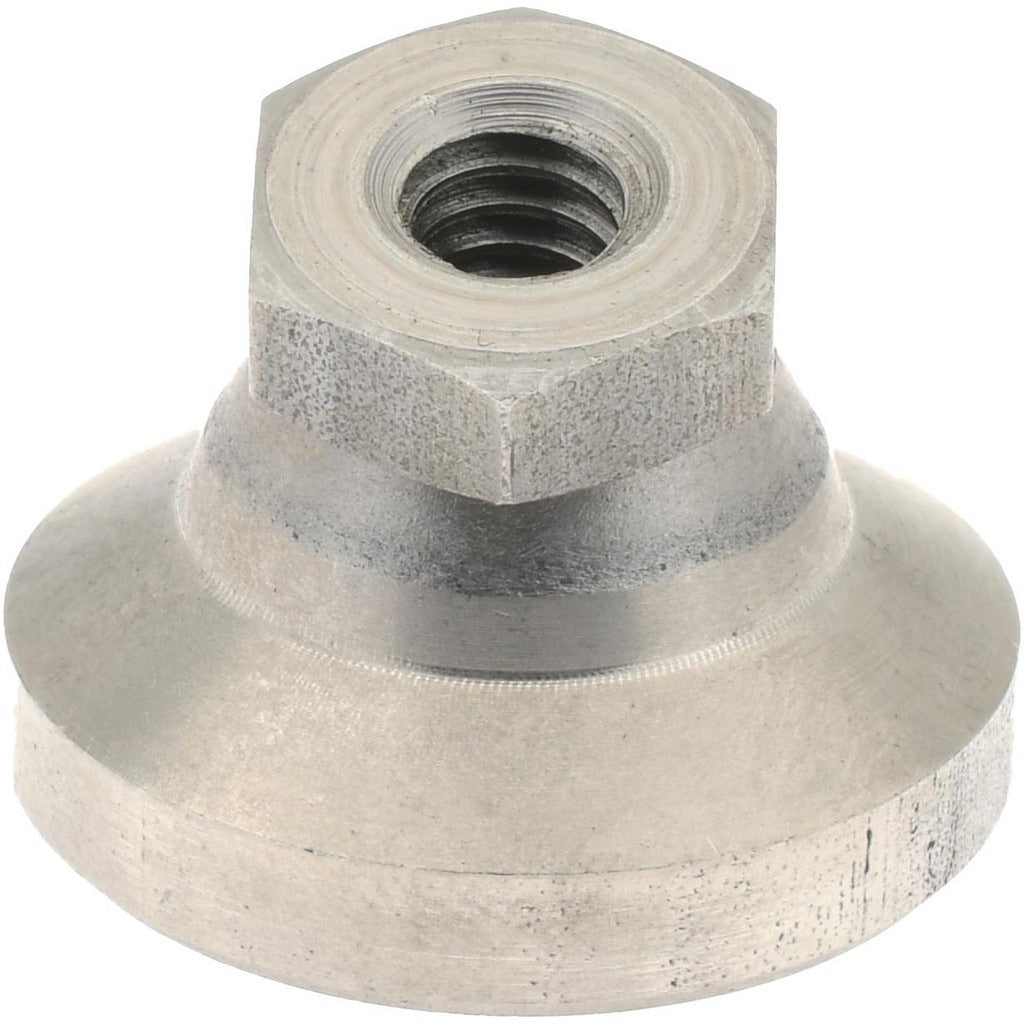

Gibraltar STS-0-G Tapped Pivotal Leveling Mount 1/4-20

Product Description

The GIBRALTAR STS-0-G is a tapped pivotal leveling mount designed to provide stable, adjustable support for machinery, equipment frames, and fabricated assemblies. It accepts a 1/4-20 threaded stud and carries a rated load capacity of 1,000 pounds. The pad and stud are both constructed from stainless steel, offering corrosion resistance in demanding environments. The base measures 1 inch in diameter with an overall length of approximately 45/64 inches. The pivotal design allows the foot to self-adjust to uneven floor surfaces, reducing stress on the mounting point. Machinists, millwrights, and fabrication technicians typically install this type of hardware during equipment leveling and alignment tasks.

This leveling mount is suited for light industrial and commercial applications where precise equipment leveling is required. It is appropriate for use on production machinery, workbenches, instrument enclosures, and similar assemblies that require a compact, corrosion-resistant leveling foot. The 1/4-20 thread size makes it compatible with a wide range of standard tapped mounting holes found in fabricated steel and aluminum frames. The stainless steel construction makes it a practical choice in wash-down, food service, or high-humidity environments where carbon steel hardware would be prone to surface corrosion.

Key Features

• Tapped pivotal design self-adjusts to uneven floor or mounting surfaces
• 1,000 lb rated load capacity
• 1/4-20 thread size for compatibility with standard tapped mounting holes
• Stainless steel pad and stud construction for corrosion resistance
• 1 inch base diameter in a compact overall footprint
• 1/2 inch hex size for standard wrench installation

Compatibility

Designed as a direct-fit leveling mount for equipment and frames with 1/4-20 tapped mounting holes requiring a compact stainless steel leveling foot.

Installation Notes

Installation is typically performed by machinists, millwrights, or maintenance technicians using a standard 1/2 inch wrench or open-end spanner. Ensure the mating tapped hole is clean and free of debris before threading in the stud. De-energize or power down any connected equipment before performing leveling adjustments. Do not exceed the rated 1,000 lb load capacity per mount point.
